#include <KDChartLeveyJenningsAxis.h>

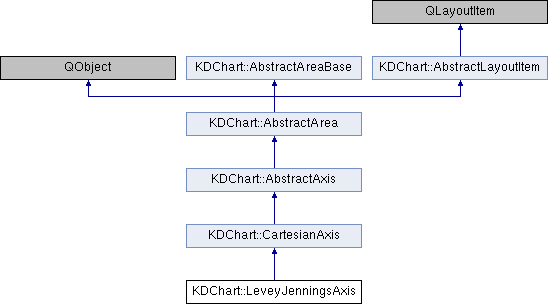

Inheritance diagram for KDChart::LeveyJenningsAxis:

Public Member Functions
	LeveyJenningsAxis (LeveyJenningsDiagram *diagram=nullptr)

	~LeveyJenningsAxis () override

bool	compare (const LeveyJenningsAxis *other) const

Qt::DateFormat	dateFormat () const

void	paintCtx (PaintContext *) override

void	setDateFormat (Qt::DateFormat format)

void	setType (LeveyJenningsGridAttributes::GridType type)

LeveyJenningsGridAttributes::GridType	type () const

Public Member Functions inherited from KDChart::CartesianAxis
	CartesianAxis (AbstractCartesianDiagram *diagram=nullptr)

	~CartesianAxis () override

QMultiMap< qreal, QString >	annotations () const

bool	compare (const CartesianAxis *other) const

int	customTickLength () const

QList< qreal >	customTicks () const

Qt::Orientations	expandingDirections () const override

QRect	geometry () const override

bool	hasDefaultTitleTextAttributes () const

virtual bool	isAbscissa () const

bool	isEmpty () const override

virtual bool	isOrdinate () const

virtual void	layoutPlanes ()

QSize	maximumSize () const override

QSize	minimumSize () const override

void	paint (QPainter *) override

virtual Position	position () const

void	resetTitleTextAttributes ()

void	setAnnotations (const QMultiMap< qreal, QString > &annotations)

void	setCustomTickLength (int value)

void	setCustomTicks (const QList< qreal > &ticksPostions)

void	setGeometry (const QRect &r) override

virtual void	setPosition (Position p)

Q_DECL_DEPRECATED void	setTitleSize (qreal value)
	use setTitleTextAttributes() instead More...

Q_DECL_DEPRECATED void	setTitleSpace (qreal value)

void	setTitleText (const QString &text)

void	setTitleTextAttributes (const TextAttributes &a)

QSize	sizeHint () const override

Q_DECL_DEPRECATED qreal	titleSize () const

Q_DECL_DEPRECATED qreal	titleSpace () const

QString	titleText () const

TextAttributes	titleTextAttributes () const

Public Member Functions inherited from KDChart::AbstractAxis
	AbstractAxis (AbstractDiagram *diagram=nullptr)

	~AbstractAxis () override

bool	compare (const AbstractAxis *other) const

virtual void	connectSignals ()

const AbstractCoordinatePlane *	coordinatePlane () const
	Convenience function, returns the coordinate plane, in which this axis is used. More...

void	createObserver (AbstractDiagram *diagram)

virtual const QString	customizedLabel (const QString &label) const
	Reimplement this method if you want to adjust axis labels before they are printed. More...

void	deleteObserver (AbstractDiagram *diagram)

const AbstractDiagram *	diagram () const

QStringList	labels () const

bool	observedBy (AbstractDiagram *diagram) const

RulerAttributes	rulerAttributes () const
	Returns the attributes to be used for painting the rulers. More...

void	setLabels (const QStringList &list)
	Use this to specify your own set of strings, to be used as axis labels. More...

void	setRulerAttributes (const RulerAttributes &a)
	Use this to specify the attributes used to paint the axis ruler. More...

void	setShortLabels (const QStringList &list)
	Use this to specify your own set of strings, to be used as axis labels, in case the normal labels are too long. More...

void	setTextAttributes (const TextAttributes &a)
	Use this to specify the text attributes to be used for axis labels. More...

QStringList	shortLabels () const

TextAttributes	textAttributes () const
	Returns the text attributes to be used for axis labels. More...

Public Member Functions inherited from KDChart::AbstractArea
	~AbstractArea () override

virtual int	bottomOverlap (bool doNotRecalculate=false) const

virtual int	leftOverlap (bool doNotRecalculate=false) const

void	paintAll (QPainter &painter) override

virtual void	paintIntoRect (QPainter &painter, const QRect &rect)
	Draws the background and frame, then calls paint(). More...

virtual int	rightOverlap (bool doNotRecalculate=false) const

virtual int	topOverlap (bool doNotRecalculate=false) const

Public Member Functions inherited from KDChart::AbstractAreaBase
void	alignToReferencePoint (const RelativePosition &position)

BackgroundAttributes	backgroundAttributes () const

bool	compare (const AbstractAreaBase *other) const

FrameAttributes	frameAttributes () const

void	getFrameLeadings (int &left, int &top, int &right, int &bottom) const

virtual void	paintBackground (QPainter &painter, const QRect &rectangle)

virtual void	paintFrame (QPainter &painter, const QRect &rectangle)

void	setBackgroundAttributes (const BackgroundAttributes &a)

void	setFrameAttributes (const FrameAttributes &a)

Public Member Functions inherited from KDChart::AbstractLayoutItem
	AbstractLayoutItem (Qt::Alignment itemAlignment={})

QLayout *	parentLayout ()

void	removeFromParentLayout ()

void	setParentLayout (QLayout *lay)

virtual void	setParentWidget (QWidget *widget)

virtual void	sizeHintChanged () const

Protected Member Functions
virtual void	paintAsAbscissa (PaintContext *)

virtual void	paintAsOrdinate (PaintContext *)

Protected Member Functions inherited from KDChart::AbstractArea
	AbstractArea ()

QRect	areaGeometry () const override

void	positionHasChanged () override

Protected Member Functions inherited from KDChart::AbstractAreaBase
	AbstractAreaBase ()

virtual	~AbstractAreaBase ()

QRect	innerRect () const

Additional Inherited Members
Public Types inherited from KDChart::CartesianAxis
enum	Position { Bottom , Top , Right , Left }

Public Slots inherited from KDChart::CartesianAxis
void	setCachedSizeDirty () const

virtual int	tickLength (bool subUnitTicks=false) const

Public Slots inherited from KDChart::AbstractAxis
void	update ()

Signals inherited from KDChart::AbstractAxis
void	coordinateSystemChanged ()

Signals inherited from KDChart::AbstractArea
void	positionChanged (AbstractArea *)

Static Public Member Functions inherited from KDChart::AbstractAreaBase
static void	paintBackgroundAttributes (QPainter &painter, const QRect &rectangle, const KDChart::BackgroundAttributes &attributes)

static void	paintFrameAttributes (QPainter &painter, const QRect &rectangle, const KDChart::FrameAttributes &attributes)

Protected Slots inherited from KDChart::AbstractAxis
virtual void	delayedInit ()

Protected Attributes inherited from KDChart::AbstractLayoutItem
QWidget *	mParent = nullptr

QLayout *	mParentLayout = nullptr

Detailed Description

The class for levey jennings axes.

For being useful, axes need to be assigned to a diagram, see LeveyJenningsDiagram::addAxis and LeveyJenningsDiagram::takeAxis.

See also: PolarAxis, AbstractCartesianDiagram

Definition at line 32 of file KDChartLeveyJenningsAxis.h.

Constructor & Destructor Documentation

◆ LeveyJenningsAxis()

LeveyJenningsAxis::LeveyJenningsAxis ( LeveyJenningsDiagram * diagram = nullptr )

explicit

C'tor of the class for levey jennings axes.

Note: If using a zero parent for the constructor, you need to call your diagram's addAxis function to add your axis to the diagram. Otherwise, there is no need to call addAxis, since the constructor does that automatically for you, if you pass a diagram as parameter.

See also: AbstractCartesianDiagram::addAxis

Definition at line 33 of file KDChartLeveyJenningsAxis.cpp.

◆ ~LeveyJenningsAxis()

LeveyJenningsAxis::~LeveyJenningsAxis ( )

override

Definition at line 39 of file KDChartLeveyJenningsAxis.cpp.

References d, and KDChart::AbstractAxis::diagram().

Member Function Documentation

◆ compare()

bool LeveyJenningsAxis::compare ( const LeveyJenningsAxis * other ) const

Returns true if both axes have the same settings.

Definition at line 106 of file KDChartLeveyJenningsAxis.cpp.

References type().

◆ dateFormat()

Qt::DateFormat LeveyJenningsAxis::dateFormat ( ) const

Definition at line 96 of file KDChartLeveyJenningsAxis.cpp.

References d.

Referenced by paintAsAbscissa().

◆ paintAsAbscissa()

void LeveyJenningsAxis::paintAsAbscissa ( PaintContext * context )

protectedvirtual

◆ paintAsOrdinate()

void LeveyJenningsAxis::paintAsOrdinate ( PaintContext * context )

protectedvirtual

◆ paintCtx()

void LeveyJenningsAxis::paintCtx ( PaintContext * context )

overridevirtual

reimp

Reimplemented from KDChart::CartesianAxis.

Definition at line 117 of file KDChartLeveyJenningsAxis.cpp.

References KDChart::PaintContext::coordinatePlane(), d, KDChart::CartesianAxis::isOrdinate(), paintAsAbscissa(), and paintAsOrdinate().

◆ setDateFormat()

void LeveyJenningsAxis::setDateFormat ( Qt::DateFormat format )

Definition at line 101 of file KDChartLeveyJenningsAxis.cpp.

References d.

◆ setType()

void LeveyJenningsAxis::setType ( LeveyJenningsGridAttributes::GridType type )

Sets the type of the axis to type. This method colors the label to the default color of the respective type. Please make sure to re-set the colors after calling this, if you want them different. Setting the type is only valid for axes located right or left from the diagram. An axis on the bottom always shows the timeline.

Definition at line 80 of file KDChartLeveyJenningsAxis.cpp.

References d, KDChart::LeveyJenningsGridAttributes::Expected, KDChart::TextAttributes::pen(), KDChart::TextAttributes::setPen(), KDChart::AbstractAxis::setTextAttributes(), KDChart::AbstractAxis::textAttributes(), and type().
