Base class for diagrams based on a cartesian coordianate system. More...

#include <KDChartAbstractCartesianDiagram.h>

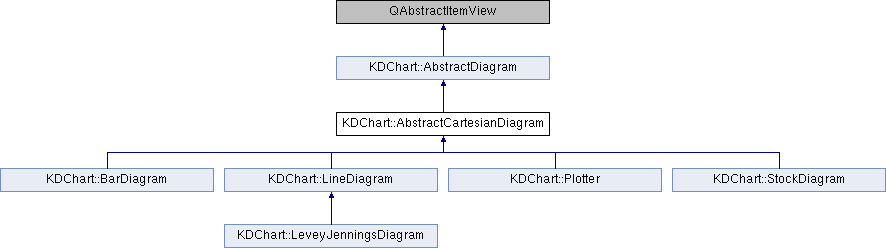

Inheritance diagram for KDChart::AbstractCartesianDiagram:

Public Member Functions
	AbstractCartesianDiagram (QWidget parent=nullptr, CartesianCoordinatePlane plane=nullptr)

	~AbstractCartesianDiagram () override

virtual void	addAxis (CartesianAxis *axis)

virtual KDChart::CartesianAxisList	axes () const

bool	compare (const AbstractCartesianDiagram *other) const

virtual void	layoutPlanes ()

virtual int	numberOfAbscissaSegments () const =0

virtual int	numberOfOrdinateSegments () const =0

virtual AbstractCartesianDiagram *	referenceDiagram () const

virtual QPointF	referenceDiagramOffset () const

void	setAttributesModel (AttributesModel *amodel) override
	Sets an external AttributesModel on this diagram. More...

void	setCoordinatePlane (AbstractCoordinatePlane *plane) override

void	setModel (QAbstractItemModel *model) override

virtual void	setReferenceDiagram (AbstractCartesianDiagram *diagram, const QPointF &offset=QPointF())

void	setRootIndex (const QModelIndex &index) override

virtual void	takeAxis (CartesianAxis *axis)

Public Member Functions inherited from KDChart::AbstractDiagram
	~AbstractDiagram () override

bool	allowOverlappingDataValueTexts () const

bool	antiAliasing () const

virtual AttributesModel *	attributesModel () const

QBrush	brush () const

QBrush	brush (const QModelIndex &index) const

QBrush	brush (int dataset) const

bool	compare (const AbstractDiagram *other) const

AbstractCoordinatePlane *	coordinatePlane () const

const QPair< QPointF, QPointF >	dataBoundaries () const
	Return the bottom left and top right data point, that the diagram will display (unless the grid adjusts these values). More...

void	dataChanged (const QModelIndex &topLeft, const QModelIndex &bottomRight, const QVector< int > &roles=QVector< int >()) override

QList< QBrush >	datasetBrushes () const

int	datasetDimension () const

QStringList	datasetLabels () const

QList< MarkerAttributes >	datasetMarkers () const

QList< QPen >	datasetPens () const

DataValueAttributes	dataValueAttributes () const

DataValueAttributes	dataValueAttributes (const QModelIndex &index) const

DataValueAttributes	dataValueAttributes (int dataset) const

void	doItemsLayout () override

int	horizontalOffset () const override

QModelIndex	indexAt (const QPoint &point) const override

QModelIndexList	indexesAt (const QPoint &point) const

QModelIndexList	indexesIn (const QRect &rect) const

bool	isHidden () const

bool	isHidden (const QModelIndex &index) const

bool	isHidden (int dataset) const

bool	isIndexHidden (const QModelIndex &index) const override

QStringList	itemRowLabels () const

QModelIndex	moveCursor (CursorAction cursorAction, Qt::KeyboardModifiers modifiers) override

virtual void	paint (PaintContext *paintContext)=0

void	paintDataValueText (QPainter *painter, const QModelIndex &index, const QPointF &pos, qreal value)

void	paintMarker (QPainter *painter, const DataValueAttributes &a, const QModelIndex &index, const QPointF &pos)

virtual void	paintMarker (QPainter *painter, const MarkerAttributes &markerAttributes, const QBrush &brush, const QPen &, const QPointF &point, const QSizeF &size)

void	paintMarker (QPainter *painter, const QModelIndex &index, const QPointF &pos)

QPen	pen () const

QPen	pen (const QModelIndex &index) const

QPen	pen (int dataset) const

bool	percentMode () const
	Returns whether this diagram is drawn in percent mode. More...

virtual void	resize (const QSizeF &area)=0

void	scrollTo (const QModelIndex &index, ScrollHint hint=EnsureVisible) override

void	setAllowOverlappingDataValueTexts (bool allow)

void	setAntiAliasing (bool enabled)

void	setBrush (const QBrush &brush)

void	setBrush (const QModelIndex &index, const QBrush &brush)

void	setBrush (int dataset, const QBrush &brush)

Q_DECL_DEPRECATED void	setDatasetDimension (int dimension)

void	setDataValueAttributes (const DataValueAttributes &a)

void	setDataValueAttributes (const QModelIndex &index, const DataValueAttributes &a)

void	setDataValueAttributes (int dataset, const DataValueAttributes &a)

void	setHidden (bool hidden)

void	setHidden (const QModelIndex &index, bool hidden)

void	setHidden (int dataset, bool hidden)

void	setModel (QAbstractItemModel *model) override

void	setPen (const QModelIndex &index, const QPen &pen)

void	setPen (const QPen &pen)

void	setPen (int dataset, const QPen &pen)

Q_DECL_DEPRECATED void	setPercentMode (bool percent)
	Deprecated method that turns the percent mode of this diagram on or off. More...

void	setRootIndex (const QModelIndex &idx) override
	Reimplemented for internal purposes. More...

void	setSelection (const QRect &rect, QItemSelectionModel::SelectionFlags command) override

void	setSelectionModel (QItemSelectionModel *selectionModel) override

void	setUnitPrefix (const QString &prefix, int column, Qt::Orientation orientation)

void	setUnitPrefix (const QString &prefix, Qt::Orientation orientation)

void	setUnitSuffix (const QString &suffix, int column, Qt::Orientation orientation)

void	setUnitSuffix (const QString &suffix, Qt::Orientation orientation)

QString	unitPrefix (int column, Qt::Orientation orientation, bool fallback=false) const

QString	unitPrefix (Qt::Orientation orientation) const

QString	unitSuffix (int column, Qt::Orientation orientation, bool fallback=false) const

QString	unitSuffix (Qt::Orientation orientation) const

void	update () const

void	useDefaultColors ()

void	useRainbowColors ()

virtual bool	usesExternalAttributesModel () const

void	useSubduedColors ()

int	verticalOffset () const override

QRect	visualRect (const QModelIndex &index) const override

virtual QRegion	visualRegion (const QModelIndex &index) const

QRegion	visualRegionForSelection (const QItemSelection &selection) const override

Protected Slots
void	connectAttributesModel (AttributesModel *)

Protected Slots inherited from KDChart::AbstractDiagram
void	setDataBoundariesDirty () const

Protected Member Functions
virtual qreal	threeDItemDepth (const QModelIndex &index) const =0

virtual qreal	threeDItemDepth (int column) const =0

Protected Member Functions inherited from KDChart::AbstractDiagram
	AbstractDiagram (Private p, QWidget parent, AbstractCoordinatePlane *plane)

	AbstractDiagram (QWidget parent=nullptr, AbstractCoordinatePlane plane=nullptr)

QModelIndex	attributesModelRootIndex () const
	returns a QModelIndex pointing into the AttributesModel that corresponds to the root index of the diagram. More...

virtual const QPair< QPointF, QPointF >	calculateDataBoundaries () const =0

virtual bool	checkInvariants (bool justReturnTheStatus=false) const

virtual Q_DECL_DEPRECATED void	paintDataValueTexts (QPainter *painter)

virtual Q_DECL_DEPRECATED void	paintMarkers (QPainter *painter)

void	setAttributesModelRootIndex (const QModelIndex &)

void	setDatasetDimensionInternal (int dimension)

Q_DECL_DEPRECATED qreal	valueForCell (int row, int column) const

Additional Inherited Members
Signals inherited from KDChart::AbstractDiagram
void	aboutToBeDestroyed ()

void	attributesModelAboutToChange (AttributesModel newModel, AttributesModel oldModel)

void	boundariesChanged ()

void	dataHidden ()

void	layoutChanged (AbstractDiagram *)

void	modelDataChanged ()

void	modelsChanged ()

void	propertiesChanged ()

void	viewportCoordinateSystemChanged ()

Detailed Description

Base class for diagrams based on a cartesian coordianate system.

The AbstractCartesianDiagram interface adds those elements that are specific to diagrams based on a cartesian coordinate system to the basic AbstractDiagram interface.

Definition at line 29 of file KDChartAbstractCartesianDiagram.h.

Constructor & Destructor Documentation

◆ AbstractCartesianDiagram()

AbstractCartesianDiagram::AbstractCartesianDiagram	(	QWidget *	parent = `nullptr`,
		CartesianCoordinatePlane *	plane = `nullptr`
	)

explicit

Definition at line 41 of file KDChartAbstractCartesianDiagram.cpp.

◆ ~AbstractCartesianDiagram()

KDChart::AbstractCartesianDiagram::~AbstractCartesianDiagram ( )

override

Definition at line 47 of file KDChartAbstractCartesianDiagram.cpp.

References d.

Member Function Documentation

◆ addAxis()

void AbstractCartesianDiagram::addAxis ( CartesianAxis * axis )

virtual

Add the axis to the diagram. The diagram takes ownership of the axis and will delete it.

To gain back ownership (e.g. for assigning the axis to another diagram) use the takeAxis method, before calling addAxis on the other diagram.

See also: takeAxis

Definition at line 69 of file KDChartAbstractCartesianDiagram.cpp.

References KDChart::AbstractAxis::createObserver(), d, and layoutPlanes().

◆ axes()

KDChart::CartesianAxisList AbstractCartesianDiagram::axes ( ) const

virtual

Returns: a list of all axes added to the diagram

Definition at line 88 of file KDChartAbstractCartesianDiagram.cpp.

References d.

◆ compare()

bool AbstractCartesianDiagram::compare ( const AbstractCartesianDiagram * other ) const

Returns true if both diagrams have the same settings.

Definition at line 26 of file KDChartAbstractCartesianDiagram.cpp.

References referenceDiagram(), and referenceDiagramOffset().

◆ connectAttributesModel

void AbstractCartesianDiagram::connectAttributesModel ( AttributesModel * newModel )

protectedslot

Definition at line 171 of file KDChartAbstractCartesianDiagram.cpp.

References d.

Referenced by KDChart::Plotter::connectAttributesModel().

◆ layoutPlanes()

void KDChart::AbstractCartesianDiagram::layoutPlanes ( )

virtual

Triggers layouting of all coordinate planes on the current chart. Normally you don't need to call this method. It's handled automatically for you.

Definition at line 93 of file KDChartAbstractCartesianDiagram.cpp.

References KDChart::AbstractCoordinatePlane::layoutPlanes().

Referenced by addAxis(), and takeAxis().

◆ numberOfAbscissaSegments()

virtual int KDChart::AbstractCartesianDiagram::numberOfAbscissaSegments ( ) const

pure virtual

Implemented in KDChart::StockDiagram, KDChart::Plotter, KDChart::LineDiagram, and KDChart::BarDiagram.

◆ numberOfOrdinateSegments()

virtual int KDChart::AbstractCartesianDiagram::numberOfOrdinateSegments ( ) const

pure virtual

Implemented in KDChart::StockDiagram, KDChart::Plotter, KDChart::LineDiagram, and KDChart::BarDiagram.

◆ referenceDiagram()

AbstractCartesianDiagram * AbstractCartesianDiagram::referenceDiagram ( ) const

virtual

Returns: this diagram's reference diagram

See also: setReferenceDiagram

Definition at line 139 of file KDChartAbstractCartesianDiagram.cpp.

References d.

Referenced by compare(), and KDChart::CartesianCoordinatePlane::getDataDimensionsList().

◆ referenceDiagramOffset()

QPointF AbstractCartesianDiagram::referenceDiagramOffset ( ) const

virtual

Returns: the relative offset of this diagram's reference diagram

See also: setReferenceDiagram

Definition at line 144 of file KDChartAbstractCartesianDiagram.cpp.

References d.

Referenced by compare().

◆ setAttributesModel()

void AbstractCartesianDiagram::setAttributesModel ( AttributesModel * amodel )

overridevirtual

Sets an external AttributesModel on this diagram.

Associate an AttributesModel with this diagram. Note that the diagram does not take ownership of the AttributesModel. This should thus only be used with AttributesModels that have been explicitly created by the user, and are owned by her. Setting an AttributesModel that is internal to another diagram is an error.

Correct:

AttributesModel *am = new AttributesModel( model, 0 );
diagram1->setAttributesModel( am );
diagram2->setAttributesModel( am );

Wrong:

diagram1->setAttributesModel( diagram2->attributesModel() );

Parameters

model The AttributesModel to use for this diagram.

See also: AttributesModel, usesExternalAttributesModel

By default, a diagram has it's own internal set of attributes, but an external one can be set. This can be used to share attributes between several diagrams. The diagram does not take ownership of the attributesmodel.

Parameters

amodel The AttributesModel to use for this diagram.

Reimplemented from KDChart::AbstractDiagram.

Definition at line 163 of file KDChartAbstractCartesianDiagram.cpp.

References KDChart::AbstractDiagram::attributesModel(), and KDChart::AbstractDiagram::setAttributesModel().

◆ setCoordinatePlane()

void KDChart::AbstractCartesianDiagram::setCoordinatePlane ( AbstractCoordinatePlane * plane )

overridevirtual

Reimplemented for internal purposes.

Reimplemented from KDChart::AbstractDiagram.

Definition at line 101 of file KDChartAbstractCartesianDiagram.cpp.

References KDChart::AbstractCoordinatePlane::relayout(), KDChart::AbstractDiagram::setCoordinatePlane(), KDChart::AbstractDiagram::update(), KDChart::AbstractCoordinatePlane::viewportCoordinateSystemChanged(), and KDChart::AbstractDiagram::viewportCoordinateSystemChanged().

◆ setModel()

void AbstractCartesianDiagram::setModel ( QAbstractItemModel * model )

override

Definition at line 155 of file KDChartAbstractCartesianDiagram.cpp.

References KDChart::AbstractDiagram::setModel().

Referenced by KDChart::LeveyJenningsDiagram::setModel().

◆ setReferenceDiagram()

void AbstractCartesianDiagram::setReferenceDiagram	(	AbstractCartesianDiagram *	diagram,
		const QPointF &	offset = `QPointF()`
	)

virtual

Makes this diagram use another diagram diagram as reference diagram with relative offset offset. To share cartesian axes between different diagrams there might be cases when you need that. Normally you don't.

See also: examples/SharedAbscissa

Definition at line 133 of file KDChartAbstractCartesianDiagram.cpp.

References d.

◆ setRootIndex()

void AbstractCartesianDiagram::setRootIndex ( const QModelIndex & index )

override

Definition at line 149 of file KDChartAbstractCartesianDiagram.cpp.

References KDChart::AbstractDiagram::attributesModel(), d, and KDChart::AbstractDiagram::setRootIndex().

◆ takeAxis()

void AbstractCartesianDiagram::takeAxis ( CartesianAxis * axis )

virtual

Removes the axis from the diagram, without deleting it.

The diagram no longer owns the axis, so it is the caller's responsibility to delete the axis.

See also: addAxis

Definition at line 78 of file KDChartAbstractCartesianDiagram.cpp.

References d, KDChart::AbstractAxis::deleteObserver(), layoutPlanes(), and KDChart::AbstractLayoutItem::setParentWidget().

◆ threeDItemDepth() [1/2]

virtual qreal KDChart::AbstractCartesianDiagram::threeDItemDepth ( const QModelIndex & index ) const

protectedpure virtual

Returns: the 3D item depth of the model index index

Implemented in KDChart::StockDiagram, KDChart::Plotter, KDChart::LineDiagram, and KDChart::BarDiagram.

◆ threeDItemDepth() [2/2]

virtual qreal KDChart::AbstractCartesianDiagram::threeDItemDepth ( int column ) const

protectedpure virtual

Returns: the 3D item depth of the data set column

Implemented in KDChart::StockDiagram, KDChart::Plotter, KDChart::LineDiagram, and KDChart::BarDiagram.

The documentation for this class was generated from the following files:

Public Member Functions

Protected Slots

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ AbstractCartesianDiagram()

◆ ~AbstractCartesianDiagram()

Member Function Documentation

◆ addAxis()

◆ axes()

◆ compare()

◆ connectAttributesModel

◆ layoutPlanes()

◆ numberOfAbscissaSegments()

◆ numberOfOrdinateSegments()

◆ referenceDiagram()

◆ referenceDiagramOffset()

◆ setAttributesModel()

◆ setCoordinatePlane()

◆ setModel()

◆ setReferenceDiagram()

◆ setRootIndex()

◆ takeAxis()

◆ threeDItemDepth() [1/2]

◆ threeDItemDepth() [2/2]
