Cartesian coordinate plane. More...

#include <KDChartCartesianCoordinatePlane.h>

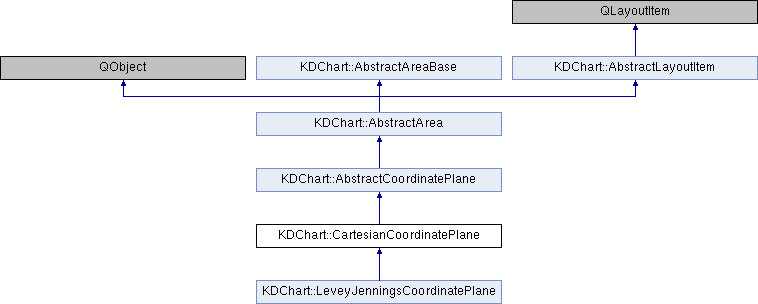

Inheritance diagram for KDChart::CartesianCoordinatePlane:

Public Slots
void	adjustHorizontalRangeToData ()

void	adjustRangesToData ()
	Adjust both, horizontal and vertical range settings to the ranges covered by the model's data values. More...

void	adjustVerticalRangeToData ()

Public Slots inherited from KDChart::AbstractCoordinatePlane
void	layoutPlanes ()

void	relayout ()

void	setGridNeedsRecalculate ()

void	update ()

Public Member Functions
	CartesianCoordinatePlane (Chart *parent=nullptr)

	~CartesianCoordinatePlane () override

void	addDiagram (AbstractDiagram *diagram) override

bool	autoAdjustGridToZoom () const

unsigned int	autoAdjustHorizontalRangeToData () const
	Returns the maximal allowed percent of the horizontal space covered by the coordinate plane that may be empty. More...

unsigned int	autoAdjustVerticalRangeToData () const
	Returns the maximal allowed percent of the vertical space covered by the coordinate plane that may be empty. More...

AxesCalcMode	axesCalcModeX () const

AxesCalcMode	axesCalcModeY () const

QRectF	diagramArea () const

bool	doesIsometricScaling () const

Qt::Orientations	expandingDirections () const override

const GridAttributes	gridAttributes (Qt::Orientation orientation) const

bool	hasFixedDataCoordinateSpaceRelation () const

bool	hasOwnGridAttributes (Qt::Orientation orientation) const

QPair< qreal, qreal >	horizontalRange () const

bool	isHorizontalRangeReversed () const

bool	isVerticalRangeReversed () const

QRectF	logicalArea () const

void	paint (QPainter *) override

void	resetGridAttributes (Qt::Orientation orientation)

void	setAutoAdjustGridToZoom (bool autoAdjust)

void	setAutoAdjustHorizontalRangeToData (unsigned int percentEmpty=67)
	Automatically adjust horizontal range settings to the ranges covered by the model's values, when ever the data have changed, and then emit horizontalRangeAutomaticallyAdjusted. More...

void	setAutoAdjustVerticalRangeToData (unsigned int percentEmpty=67)
	Automatically adjust vertical range settings to the ranges covered by the model's values, when ever the data have changed, and then emit verticalRangeAutomaticallyAdjusted. More...

void	setAxesCalcModes (AxesCalcMode mode)

void	setAxesCalcModeX (AxesCalcMode mode)

void	setAxesCalcModeY (AxesCalcMode mode)

void	setFixedDataCoordinateSpaceRelation (bool fixed)

void	setGeometry (const QRect &r) override

void	setGridAttributes (Qt::Orientation orientation, const GridAttributes &)

void	setHorizontalRange (const QPair< qreal, qreal > &range)
	Set the boundaries of the visible value space displayed in horizontal direction. More...

void	setHorizontalRangeReversed (bool reverse)

void	setIsometricScaling (bool onOff)

void	setVerticalRange (const QPair< qreal, qreal > &range)
	Set the boundaries of the visible value space displayed in vertical direction. More...

void	setVerticalRangeReversed (bool reverse)

void	setXAxisStartAtZero (bool fixedStart)

void	setZoomCenter (const QPointF &center) override

void	setZoomFactors (qreal factorX, qreal factorY) override

void	setZoomFactorX (qreal factor) override

void	setZoomFactorY (qreal factor) override

AbstractCoordinatePlane *	sharedAxisMasterPlane (QPainter *p=nullptr) override

const QPointF	translate (const QPointF &diagramPoint) const override

const QPointF	translateBack (const QPointF &screenPoint) const

QPair< qreal, qreal >	verticalRange () const

QRectF	visibleDataRange () const

QRectF	visibleDiagramArea () const

bool	xAxisStartAtZero () const

QPointF	zoomCenter () const override

qreal	zoomFactorX () const override

qreal	zoomFactorY () const override

Public Member Functions inherited from KDChart::AbstractCoordinatePlane
	~AbstractCoordinatePlane () override

AbstractDiagram *	diagram ()

AbstractDiagramList	diagrams ()

ConstAbstractDiagramList	diagrams () const

Qt::Orientations	expandingDirections () const override

QRect	geometry () const override

GridAttributes	globalGridAttributes () const

DataDimensionsList	gridDimensionsList ()

bool	isCornerSpacersEnabled () const

bool	isEmpty () const override

bool	isRubberBandZoomingEnabled () const

bool	isVisiblePoint (const QPointF &point) const

QSize	maximumSize () const override

QSize	minimumSize () const override

virtual void	mouseDoubleClickEvent (QMouseEvent *event)

virtual void	mouseMoveEvent (QMouseEvent *event)

virtual void	mousePressEvent (QMouseEvent *event)

virtual void	mouseReleaseEvent (QMouseEvent *event)

Chart *	parent ()

const Chart *	parent () const

AbstractCoordinatePlane *	referenceCoordinatePlane () const

virtual void	replaceDiagram (AbstractDiagram diagram, AbstractDiagram oldDiagram=nullptr)

void	setCornerSpacersEnabled (bool enable)

void	setGeometry (const QRect &r) override

void	setGlobalGridAttributes (const GridAttributes &)

void	setParent (Chart *parent)

void	setReferenceCoordinatePlane (AbstractCoordinatePlane *plane)

void	setRubberBandZoomingEnabled (bool enable)

QSize	sizeHint () const override

virtual void	takeDiagram (AbstractDiagram *diagram)

Public Member Functions inherited from KDChart::AbstractArea
	~AbstractArea () override

virtual int	bottomOverlap (bool doNotRecalculate=false) const

virtual int	leftOverlap (bool doNotRecalculate=false) const

void	paintAll (QPainter &painter) override

virtual void	paintIntoRect (QPainter &painter, const QRect &rect)
	Draws the background and frame, then calls paint(). More...

virtual int	rightOverlap (bool doNotRecalculate=false) const

virtual int	topOverlap (bool doNotRecalculate=false) const

Public Member Functions inherited from KDChart::AbstractAreaBase
void	alignToReferencePoint (const RelativePosition &position)

BackgroundAttributes	backgroundAttributes () const

bool	compare (const AbstractAreaBase *other) const

FrameAttributes	frameAttributes () const

void	getFrameLeadings (int &left, int &top, int &right, int &bottom) const

virtual void	paintBackground (QPainter &painter, const QRect &rectangle)

virtual void	paintFrame (QPainter &painter, const QRect &rectangle)

void	setBackgroundAttributes (const BackgroundAttributes &a)

void	setFrameAttributes (const FrameAttributes &a)

Public Member Functions inherited from KDChart::AbstractLayoutItem
	AbstractLayoutItem (Qt::Alignment itemAlignment={})

virtual void	paintCtx (PaintContext *context)

QLayout *	parentLayout ()

void	removeFromParentLayout ()

void	setParentLayout (QLayout *lay)

virtual void	setParentWidget (QWidget *widget)

virtual void	sizeHintChanged () const

Protected Slots
void	slotLayoutChanged (AbstractDiagram *)

Protected Member Functions
QRectF	adjustedToMaxEmptyInnerPercentage (const QRectF &r, unsigned int percentX, unsigned int percentY) const

virtual QRectF	calculateRawDataBoundingRect () const

bool	doneSetZoomCenter (const QPointF &center)

bool	doneSetZoomFactorX (qreal factor)

bool	doneSetZoomFactorY (qreal factor)

virtual QRectF	drawingArea () const

DataDimensionsList	getDataDimensionsList () const override

QRectF	getRawDataBoundingRectFromDiagrams () const

void	handleFixedDataCoordinateSpaceRelation (const QRectF &geometry)

bool	hasHeightForWidth () const override

int	heightForWidth (int w) const override

void	layoutDiagrams () override

void	paintEvent (QPaintEvent *)

QSize	sizeHint () const override

Protected Member Functions inherited from KDChart::AbstractCoordinatePlane
	AbstractCoordinatePlane (Chart *parent=nullptr)

Protected Member Functions inherited from KDChart::AbstractArea
	AbstractArea ()

QRect	areaGeometry () const override

void	positionHasChanged () override

Protected Member Functions inherited from KDChart::AbstractAreaBase
	AbstractAreaBase ()

virtual	~AbstractAreaBase ()

QRect	innerRect () const

Additional Inherited Members
Public Types inherited from KDChart::AbstractCoordinatePlane
enum	AxesCalcMode { Linear , Logarithmic }

Signals inherited from KDChart::AbstractCoordinatePlane
void	boundariesChanged ()

void	destroyedCoordinatePlane (AbstractCoordinatePlane *)

void	geometryChanged (QRect, QRect)

void	internal_geometryChanged (QRect, QRect)

void	needLayoutPlanes ()

void	needRelayout ()

void	needUpdate ()

void	propertiesChanged ()

void	viewportCoordinateSystemChanged ()

Signals inherited from KDChart::AbstractArea
void	positionChanged (AbstractArea *)

Static Public Member Functions inherited from KDChart::AbstractAreaBase
static void	paintBackgroundAttributes (QPainter &painter, const QRect &rectangle, const KDChart::BackgroundAttributes &attributes)

static void	paintFrameAttributes (QPainter &painter, const QRect &rectangle, const KDChart::FrameAttributes &attributes)

Protected Attributes inherited from KDChart::AbstractLayoutItem
QWidget *	mParent = nullptr

QLayout *	mParentLayout = nullptr

Detailed Description

Cartesian coordinate plane.

Definition at line 27 of file KDChartCartesianCoordinatePlane.h.

Constructor & Destructor Documentation

◆ CartesianCoordinatePlane()

CartesianCoordinatePlane::CartesianCoordinatePlane ( Chart * parent = nullptr )

explicit

Definition at line 42 of file KDChartCartesianCoordinatePlane.cpp.

◆ ~CartesianCoordinatePlane()

CartesianCoordinatePlane::~CartesianCoordinatePlane ( )

override

Definition at line 48 of file KDChartCartesianCoordinatePlane.cpp.

Member Function Documentation

◆ addDiagram()

void CartesianCoordinatePlane::addDiagram ( AbstractDiagram * diagram )

overridevirtual

Adds a diagram to this coordinate plane.

Parameters

diagram The diagram to add.

See also: replaceDiagram, takeDiagram

Reimplemented from KDChart::AbstractCoordinatePlane.

Reimplemented in KDChart::LeveyJenningsCoordinatePlane.

Definition at line 58 of file KDChartCartesianCoordinatePlane.cpp.

References KDChart::AbstractCoordinatePlane::addDiagram(), KDChart::AbstractCoordinatePlane::diagram(), KDChart::AbstractDiagram::layoutChanged(), KDChart::AbstractCoordinatePlane::propertiesChanged(), KDChart::AbstractDiagram::propertiesChanged(), and slotLayoutChanged().

Referenced by KDChart::LeveyJenningsCoordinatePlane::addDiagram().

◆ adjustedToMaxEmptyInnerPercentage()

QRectF CartesianCoordinatePlane::adjustedToMaxEmptyInnerPercentage	(	const QRectF &	r,
		unsigned int	percentX,
		unsigned int	percentY
	)		const

protected

Definition at line 151 of file KDChartCartesianCoordinatePlane.cpp.

References axesCalcModeX(), axesCalcModeY(), d, and KDChart::AbstractCoordinatePlane::Logarithmic.

Referenced by calculateRawDataBoundingRect().

◆ adjustHorizontalRangeToData

void CartesianCoordinatePlane::adjustHorizontalRangeToData ( )

slot

Adjust horizontal range settings to the ranges covered by the model's data values.

See also: adjustRangesToData

Definition at line 633 of file KDChartCartesianCoordinatePlane.cpp.

References d, getRawDataBoundingRectFromDiagrams(), layoutDiagrams(), and KDChart::AbstractCoordinatePlane::propertiesChanged().

◆ adjustRangesToData

void CartesianCoordinatePlane::adjustRangesToData ( )

slot

Adjust both, horizontal and vertical range settings to the ranges covered by the model's data values.

See also: setHorizontalRange, setVerticalRange; adjustHorizontalRangeToData, adjustVerticalRangeToData; setAutoAdjustHorizontalRangeToData, setAutoAdjustVerticalRangeToData

Definition at line 622 of file KDChartCartesianCoordinatePlane.cpp.

References d, getRawDataBoundingRectFromDiagrams(), layoutDiagrams(), and KDChart::AbstractCoordinatePlane::propertiesChanged().

◆ adjustVerticalRangeToData

void CartesianCoordinatePlane::adjustVerticalRangeToData ( )

slot

Adjust vertical range settings to the ranges covered by the model's data values.

See also: adjustRangesToData

Definition at line 642 of file KDChartCartesianCoordinatePlane.cpp.

References d, getRawDataBoundingRectFromDiagrams(), layoutDiagrams(), and KDChart::AbstractCoordinatePlane::propertiesChanged().

◆ autoAdjustGridToZoom()

bool CartesianCoordinatePlane::autoAdjustGridToZoom ( ) const

Return the status of the built-in grid adjusting feature.

See also: setAutoAdjustGridToZoom

Definition at line 742 of file KDChartCartesianCoordinatePlane.cpp.

References d.

◆ autoAdjustHorizontalRangeToData()

unsigned int CartesianCoordinatePlane::autoAdjustHorizontalRangeToData ( ) const

Returns the maximal allowed percent of the horizontal space covered by the coordinate plane that may be empty.

Returns: A percent value indicating how much of the horizontal space may be empty. If more than this is empty, automatic range adjusting is applied. A return value of 100 indicates that no such automatic adjusting is done at all.

See also: setAutoAdjustHorizontalRangeToData, adjustRangesToData

Definition at line 673 of file KDChartCartesianCoordinatePlane.cpp.

References d.

◆ autoAdjustVerticalRangeToData()

unsigned int CartesianCoordinatePlane::autoAdjustVerticalRangeToData ( ) const

Returns the maximal allowed percent of the vertical space covered by the coordinate plane that may be empty.

Returns: A percent value indicating how much of the vertical space may be empty. If more than this is empty, automatic range adjusting is applied. A return value of 100 indicates that no such automatic adjusting is done at all.

See also: setAutoAdjustVerticalRangeToData, adjustRangesToData

Definition at line 678 of file KDChartCartesianCoordinatePlane.cpp.

References d.

◆ axesCalcModeX()

CartesianCoordinatePlane::AxesCalcMode CartesianCoordinatePlane::axesCalcModeX ( ) const

Definition at line 537 of file KDChartCartesianCoordinatePlane.cpp.

References d.

Referenced by adjustedToMaxEmptyInnerPercentage(), and getDataDimensionsList().

◆ axesCalcModeY()

CartesianCoordinatePlane::AxesCalcMode CartesianCoordinatePlane::axesCalcModeY ( ) const

Definition at line 532 of file KDChartCartesianCoordinatePlane.cpp.

References d.

Referenced by adjustedToMaxEmptyInnerPercentage(), and getDataDimensionsList().

◆ calculateRawDataBoundingRect()

QRectF CartesianCoordinatePlane::calculateRawDataBoundingRect ( ) const

protectedvirtual

Definition at line 191 of file KDChartCartesianCoordinatePlane.cpp.

References adjustedToMaxEmptyInnerPercentage(), d, and getRawDataBoundingRectFromDiagrams().

Referenced by getDataDimensionsList().

◆ diagramArea()

QRectF CartesianCoordinatePlane::diagramArea ( ) const

Returns the (physical) area occupied by the diagram. Unless zoom is applied (which is also true when a fixed data coordinate / space relation is used),

diagramArea() == drawingArea()

KDChart::CartesianCoordinatePlane::drawingArea

virtual QRectF drawingArea() const

Definition: KDChartCartesianCoordinatePlane.cpp:287

KDChart::CartesianCoordinatePlane::diagramArea

QRectF diagramArea() const

Definition: KDChartCartesianCoordinatePlane.cpp:319

.

See also: setFixedDataCoordinateSpaceRelation; drawingArea

Definition at line 319 of file KDChartCartesianCoordinatePlane.cpp.

References d, and logicalArea().

Referenced by visibleDiagramArea().

◆ doesIsometricScaling()

bool CartesianCoordinatePlane::doesIsometricScaling ( ) const

Definition at line 444 of file KDChartCartesianCoordinatePlane.cpp.

References d.

◆ doneSetZoomCenter()

bool CartesianCoordinatePlane::doneSetZoomCenter ( const QPointF & center )

protected

Definition at line 473 of file KDChartCartesianCoordinatePlane.cpp.

References d.

Referenced by handleFixedDataCoordinateSpaceRelation(), and setZoomCenter().

◆ doneSetZoomFactorX()

bool CartesianCoordinatePlane::doneSetZoomFactorX ( qreal factor )

protected

Definition at line 449 of file KDChartCartesianCoordinatePlane.cpp.

References d.

Referenced by handleFixedDataCoordinateSpaceRelation(), setZoomFactors(), and setZoomFactorX().

◆ doneSetZoomFactorY()

bool CartesianCoordinatePlane::doneSetZoomFactorY ( qreal factor )

protected

Definition at line 461 of file KDChartCartesianCoordinatePlane.cpp.

References d.

Referenced by handleFixedDataCoordinateSpaceRelation(), setZoomFactors(), and setZoomFactorY().

◆ drawingArea()

QRectF CartesianCoordinatePlane::drawingArea ( ) const

protectedvirtual

Definition at line 287 of file KDChartCartesianCoordinatePlane.cpp.

References KDChart::AbstractArea::areaGeometry().

Referenced by layoutDiagrams(), paint(), setFixedDataCoordinateSpaceRelation(), setZoomCenter(), setZoomFactors(), setZoomFactorX(), setZoomFactorY(), visibleDataRange(), and visibleDiagramArea().

◆ expandingDirections()

Qt::Orientations CartesianCoordinatePlane::expandingDirections ( ) const

override

Definition at line 855 of file KDChartCartesianCoordinatePlane.cpp.

References d.

◆ getDataDimensionsList()

DataDimensionsList CartesianCoordinatePlane::getDataDimensionsList ( ) const

overrideprotectedvirtual

Implements KDChart::AbstractCoordinatePlane.

Definition at line 239 of file KDChartCartesianCoordinatePlane.cpp.

References axesCalcModeX(), axesCalcModeY(), calculateRawDataBoundingRect(), KDChart::AbstractDiagram::datasetDimension(), KDChart::AbstractCoordinatePlane::diagrams(), gridAttributes(), KDChart::GridAttributes::gridGranularitySequence(), KDChart::GridAttributes::gridStepWidth(), KDChart::GridAttributes::gridSubStepWidth(), and KDChart::AbstractCartesianDiagram::referenceDiagram().

◆ getRawDataBoundingRectFromDiagrams()

QRectF CartesianCoordinatePlane::getRawDataBoundingRectFromDiagrams ( ) const

protected

Definition at line 122 of file KDChartCartesianCoordinatePlane.cpp.

References KDChart::AbstractDiagram::dataBoundaries(), KDChart::AbstractCoordinatePlane::diagram(), and KDChart::AbstractCoordinatePlane::diagrams().

Referenced by adjustHorizontalRangeToData(), adjustRangesToData(), adjustVerticalRangeToData(), and calculateRawDataBoundingRect().

◆ gridAttributes()

const GridAttributes CartesianCoordinatePlane::gridAttributes ( Qt::Orientation orientation ) const

Returns: The attributes used for grid lines drawn in horizontal direction (or in vertical direction, resp.).

Note: This function always returns a valid set of grid attributes: If no special grid attributes were set foe this orientation the global attributes are returned, as returned by AbstractCoordinatePlane::globalGridAttributes.

See also: setGridAttributes; resetGridAttributes; AbstractCoordinatePlane::globalGridAttributes; hasOwnGridAttributes

Definition at line 702 of file KDChartCartesianCoordinatePlane.cpp.

References d, KDChart::AbstractCoordinatePlane::globalGridAttributes(), and hasOwnGridAttributes().

Referenced by getDataDimensionsList().

◆ handleFixedDataCoordinateSpaceRelation()

void CartesianCoordinatePlane::handleFixedDataCoordinateSpaceRelation ( const QRectF & geometry )

protected

Definition at line 379 of file KDChartCartesianCoordinatePlane.cpp.

References d, doneSetZoomCenter(), doneSetZoomFactorX(), doneSetZoomFactorY(), KDChart::AbstractCoordinatePlane::geometry(), KDChart::AbstractCoordinatePlane::propertiesChanged(), zoomCenter(), zoomFactorX(), and zoomFactorY().

Referenced by layoutDiagrams(), and setFixedDataCoordinateSpaceRelation().

◆ hasFixedDataCoordinateSpaceRelation()

bool CartesianCoordinatePlane::hasFixedDataCoordinateSpaceRelation ( ) const

Definition at line 361 of file KDChartCartesianCoordinatePlane.cpp.

References d.

◆ hasHeightForWidth()

bool CartesianCoordinatePlane::hasHeightForWidth ( ) const

overrideprotected

Definition at line 861 of file KDChartCartesianCoordinatePlane.cpp.

References d.

◆ hasOwnGridAttributes()

bool CartesianCoordinatePlane::hasOwnGridAttributes ( Qt::Orientation orientation ) const

Returns: Returns whether the grid attributes have been set for the respective direction via setGridAttributes( orientation ).

If false, the grid will use the global attributes set by AbstractCoordinatePlane::globalGridAttributes (or the default attributes, resp.)

See also: setGridAttributes; resetGridAttributes; AbstractCoordinatePlane::globalGridAttributes

Definition at line 723 of file KDChartCartesianCoordinatePlane.cpp.

References d.

Referenced by gridAttributes().

◆ heightForWidth()

int CartesianCoordinatePlane::heightForWidth ( int w ) const

overrideprotected

Definition at line 866 of file KDChartCartesianCoordinatePlane.cpp.

References logicalArea().

Referenced by setGeometry(), and sizeHint().

◆ horizontalRange()

QPair< qreal, qreal > CartesianCoordinatePlane::horizontalRange ( ) const

Returns: The largest and smallest visible horizontal value space value. If this is not explicitly set,or if both values are the same, the plane will use the union of the dataBoundaries of all associated diagrams.

See also: KDChart::AbstractDiagram::dataBoundaries

Definition at line 612 of file KDChartCartesianCoordinatePlane.cpp.

References d.

◆ isHorizontalRangeReversed()

bool CartesianCoordinatePlane::isHorizontalRangeReversed ( ) const

Returns: Whether the horizontal range is reversed or not

Definition at line 797 of file KDChartCartesianCoordinatePlane.cpp.

References d.

◆ isVerticalRangeReversed()

bool CartesianCoordinatePlane::isVerticalRangeReversed ( ) const

Returns: Whether the vertical range is reversed or not

Definition at line 812 of file KDChartCartesianCoordinatePlane.cpp.

References d.

◆ layoutDiagrams()

void CartesianCoordinatePlane::layoutDiagrams ( )

overrideprotectedvirtual

Distribute the available space among the diagrams and axes.

Implements KDChart::AbstractCoordinatePlane.

Definition at line 333 of file KDChartCartesianCoordinatePlane.cpp.

References d, drawingArea(), KDChart::AbstractCoordinatePlane::gridDimensionsList(), handleFixedDataCoordinateSpaceRelation(), logicalArea(), and KDChart::AbstractCoordinatePlane::update().

Referenced by adjustHorizontalRangeToData(), adjustRangesToData(), adjustVerticalRangeToData(), setAutoAdjustHorizontalRangeToData(), setAutoAdjustVerticalRangeToData(), setHorizontalRange(), setHorizontalRangeReversed(), setIsometricScaling(), setVerticalRange(), setVerticalRangeReversed(), and slotLayoutChanged().

◆ logicalArea()

QRectF CartesianCoordinatePlane::logicalArea ( ) const

Returns the logical area, i.e., the rectangle defined by the very top left and very bottom right coordinate.

Definition at line 298 of file KDChartCartesianCoordinatePlane.cpp.

References d, KDChart::DataDimension::distance(), KDChart::DataDimension::end, and KDChart::DataDimension::start.

Referenced by diagramArea(), heightForWidth(), layoutDiagrams(), setZoomCenter(), setZoomFactors(), setZoomFactorX(), and setZoomFactorY().

◆ paint()

void CartesianCoordinatePlane::paint ( QPainter * painter )

overridevirtual

reimp

Implements KDChart::AbstractLayoutItem.

Definition at line 70 of file KDChartCartesianCoordinatePlane.cpp.

References d, KDChart::AbstractCoordinatePlane::diagrams(), drawingArea(), KDChart::PaintContext::setCoordinatePlane(), KDChart::PaintContext::setPainter(), and KDChart::PaintContext::setRectangle().

◆ paintEvent()

void KDChart::CartesianCoordinatePlane::paintEvent ( QPaintEvent * )

protected

◆ resetGridAttributes()

void CartesianCoordinatePlane::resetGridAttributes ( Qt::Orientation orientation )

Reset the attributes to be used for grid lines drawn in horizontal direction (or in vertical direction, resp.). By calling this method you specify that the global attributes set by AbstractCoordinatePlane::setGlobalGridAttributes be used.

See also: setGridAttributes, gridAttributes; setAutoAdjustGridToZoom; AbstractCoordinatePlane::globalGridAttributes; hasOwnGridAttributes

Definition at line 696 of file KDChartCartesianCoordinatePlane.cpp.

References KDChart::AbstractCoordinatePlane::update().

◆ setAutoAdjustGridToZoom()

void CartesianCoordinatePlane::setAutoAdjustGridToZoom ( bool autoAdjust )

Disable / re-enable the built-in grid adjusting feature.

By default additional lines will be drawn in a Linear grid when zooming in.

See also: autoAdjustGridToZoom, setGridAttributes

Definition at line 729 of file KDChartCartesianCoordinatePlane.cpp.

References d, and KDChart::AbstractCoordinatePlane::propertiesChanged().

◆ setAutoAdjustHorizontalRangeToData()

void CartesianCoordinatePlane::setAutoAdjustHorizontalRangeToData ( unsigned int percentEmpty = 67 )

Automatically adjust horizontal range settings to the ranges covered by the model's values, when ever the data have changed, and then emit horizontalRangeAutomaticallyAdjusted.

By default the horizontal range is adjusted automatically, if more than 67 percent of the available horizontal space would be empty otherwise.

Range setting is adjusted if more than percentEmpty percent of the horizontal space covered by the coordinate plane would otherwise be empty. Automatic range adjusting can happen, when either all of the data are positive or all are negative.

Set percentEmpty to 100 to disable automatic range adjusting.

Parameters

percentEmpty The maximal percentage of horizontal space that may be empty.

See also: horizontalRangeAutomaticallyAdjusted; autoAdjustHorizontalRangeToData, adjustRangesToData; setHorizontalRange, setVerticalRange; setAutoAdjustVerticalRangeToData

Definition at line 651 of file KDChartCartesianCoordinatePlane.cpp.

References d, layoutDiagrams(), and KDChart::AbstractCoordinatePlane::propertiesChanged().

◆ setAutoAdjustVerticalRangeToData()

void CartesianCoordinatePlane::setAutoAdjustVerticalRangeToData ( unsigned int percentEmpty = 67 )

Automatically adjust vertical range settings to the ranges covered by the model's values, when ever the data have changed, and then emit verticalRangeAutomaticallyAdjusted.

By default the vertical range is adjusted automatically, if more than 67 percent of the available vertical space would be empty otherwise.

Range setting is adjusted if more than percentEmpty percent of the horizontal space covered by the coordinate plane would otherwise be empty. Automatic range adjusting can happen, when either all of the data are positive or all are negative.

Set percentEmpty to 100 to disable automatic range adjusting.

Parameters

percentEmpty The maximal percentage of horizontal space that may be empty.

See also: verticalRangeAutomaticallyAdjusted; autoAdjustVerticalRangeToData, adjustRangesToData; setHorizontalRange, setVerticalRange; setAutoAdjustHorizontalRangeToData

Definition at line 662 of file KDChartCartesianCoordinatePlane.cpp.

References d, layoutDiagrams(), and KDChart::AbstractCoordinatePlane::propertiesChanged().

◆ setAxesCalcModes()

void CartesianCoordinatePlane::setAxesCalcModes ( AxesCalcMode mode )

Specifies the calculation modes for all axes

Definition at line 542 of file KDChartCartesianCoordinatePlane.cpp.

References d, KDChart::AbstractCoordinatePlane::diagrams(), KDChart::AbstractCoordinatePlane::propertiesChanged(), slotLayoutChanged(), and KDChart::AbstractCoordinatePlane::viewportCoordinateSystemChanged().

◆ setAxesCalcModeX()

void CartesianCoordinatePlane::setAxesCalcModeX ( AxesCalcMode mode )

Specifies the calculation mode for all Abscissa axes

Definition at line 566 of file KDChartCartesianCoordinatePlane.cpp.

References d, KDChart::AbstractCoordinatePlane::propertiesChanged(), and KDChart::AbstractCoordinatePlane::viewportCoordinateSystemChanged().

◆ setAxesCalcModeY()

void CartesianCoordinatePlane::setAxesCalcModeY ( AxesCalcMode mode )

Specifies the calculation mode for all Ordinate axes

Definition at line 556 of file KDChartCartesianCoordinatePlane.cpp.

References d, KDChart::AbstractCoordinatePlane::propertiesChanged(), KDChart::AbstractCoordinatePlane::setGridNeedsRecalculate(), and KDChart::AbstractCoordinatePlane::viewportCoordinateSystemChanged().

◆ setFixedDataCoordinateSpaceRelation()

void CartesianCoordinatePlane::setFixedDataCoordinateSpaceRelation ( bool fixed )

Allows to specify a fixed data-space / coordinate-space relation. If set to true then fixed bar widths are used, so you see more bars as the window is made wider.

This allows to completely restrict the size of bars in a graph such that, upon resizing a window, the graphs coordinate plane will grow (add more ticks to x- and y-coordinates) rather than have the image grow.

Definition at line 354 of file KDChartCartesianCoordinatePlane.cpp.

References d, drawingArea(), and handleFixedDataCoordinateSpaceRelation().

◆ setGeometry()

void CartesianCoordinatePlane::setGeometry ( const QRect & r )

override

reimplemented from AbstractCoordinatePlane

Definition at line 829 of file KDChartCartesianCoordinatePlane.cpp.

References d, KDChart::AbstractCoordinatePlane::diagram(), KDChart::AbstractCoordinatePlane::diagrams(), KDChart::AbstractCoordinatePlane::geometry(), heightForWidth(), KDChart::AbstractDiagram::resize(), and KDChart::AbstractCoordinatePlane::setGeometry().

◆ setGridAttributes()

void CartesianCoordinatePlane::setGridAttributes	(	Qt::Orientation	orientation,
		const GridAttributes &	a
	)

Set the attributes to be used for grid lines drawn in horizontal direction (or in vertical direction, resp.).

To disable horizontal grid painting, for example, your code should like this:

GridAttributes ga = plane->gridAttributes( Qt::Horizontal );
ga.setGridVisible( false );
plane-setGridAttributes( Qt::Horizontal, ga );

Note: setGridAttributes overwrites the global attributes that were set by AbstractCoordinatePlane::setGlobalGridAttributes. To re-activate these global attributes you can call resetGridAttributes.

See also: resetGridAttributes, gridAttributes; setAutoAdjustGridToZoom; AbstractCoordinatePlane::setGlobalGridAttributes; hasOwnGridAttributes

Definition at line 683 of file KDChartCartesianCoordinatePlane.cpp.

References d, KDChart::AbstractCoordinatePlane::propertiesChanged(), and KDChart::AbstractCoordinatePlane::update().

◆ setHorizontalRange()

void CartesianCoordinatePlane::setHorizontalRange ( const QPair< qreal, qreal > & range )

Set the boundaries of the visible value space displayed in horizontal direction.

This is also known as the horizontal viewport.

By default the horizontal range is adjusted to the range covered by the model's data, see setAutoAdjustHorizontalRangeToData for details. Calling setHorizontalRange with a valid range disables this default automatic adjusting, while on the other hand automatic adjusting will set these ranges.

To disable use of this range you can either pass an empty pair by using the default constructor QPair() or you can set both values to the same which constitutes a null range.

Note: By default the visible data range often is larger than the range calculated from the data model (or set by setHoriz.|Vert.Range(), resp.). This is due to the built-in grid calculation feature: The visible start/end values get adjusted so that they match a main-grid line. You can turn this feature off for any of the four bounds by calling GridAttributes::setAdjustBoundsToGrid() for either the global grid-attributes or for the horizontal/vertical attrs separately.; To set only one of the ends of the range to a fixed value while keeping the other dynamically adjusted, use std::numeric_limits< qreal >::quiet_NaN() for the dynamic value.; If you use user defined vertical ranges together with logarithmic scale, only positive values are supported. If you set it to negative values, the result is undefined.

Parameters

range a pair of values representing the smallest and the largest horizontal value space coordinate displayed.

See also: setAutoAdjustHorizontalRangeToData, setVerticalRange; GridAttributes::setAdjustBoundsToGrid()

Definition at line 586 of file KDChartCartesianCoordinatePlane.cpp.

References KDChart::AbstractCoordinatePlane::boundariesChanged(), d, layoutDiagrams(), and KDChart::AbstractCoordinatePlane::propertiesChanged().

◆ setHorizontalRangeReversed()

void CartesianCoordinatePlane::setHorizontalRangeReversed ( bool reverse )

Sets whether the horizontal range should be reversed or not, i.e. small values to the left and large values to the right (the default) or vice versa.

Parameters

reverse Whether the horizontal range should be reversed or not

Definition at line 787 of file KDChartCartesianCoordinatePlane.cpp.

References d, layoutDiagrams(), and KDChart::AbstractCoordinatePlane::propertiesChanged().

◆ setIsometricScaling()

void CartesianCoordinatePlane::setIsometricScaling ( bool onOff )

If onOff is true, enforce that X and Y distances are scaled by the same factor. This makes the plane's height a function of its width, and hasHeightForWidth() will return true.

Definition at line 435 of file KDChartCartesianCoordinatePlane.cpp.

References d, layoutDiagrams(), and KDChart::AbstractCoordinatePlane::propertiesChanged().

◆ setVerticalRange()

void CartesianCoordinatePlane::setVerticalRange ( const QPair< qreal, qreal > & range )

Set the boundaries of the visible value space displayed in vertical direction.

This is also known as the vertical viewport.

By default the vertical range is adjusted to the range covered by the model's data, see setAutoAdjustVerticalRangeToData for details. Calling setVerticalRange with a valid range disables this default automatic adjusting, while on the other hand automatic adjusting will set these ranges.

To disable use of this range you can either pass an empty pair by using the default constructor QPair() or you can set setting both values to the same which constitutes a null range.

Note: By default the visible data range often is larger than the range calculated from the data model (or set by setHoriz.|Vert.Range(), resp.). This is due to the built-in grid calculation feature: The visible start/end values get adjusted so that they match a main-grid line. You can turn this feature off for any of the four bounds by calling GridAttributes::setAdjustBoundsToGrid() for either the global grid-attributes or for the horizontal/vertical attrs separately.; To set only one of the ends of the range to a fixed value while keeping the other dynamically adjusted, use std::numeric_limits< qreal >::quiet_NaN() for the dynamic value.; If you use user defined vertical ranges together with logarithmic scale, only positive values are supported. If you set it to negative values, the result is undefined.

Parameters

range a pair of values representing the smallest and the largest vertical value space coordinate displayed.

See also: setAutoAdjustVerticalRangeToData, setHorizontalRange; GridAttributes::setAdjustBoundsToGrid()

Definition at line 599 of file KDChartCartesianCoordinatePlane.cpp.

References KDChart::AbstractCoordinatePlane::boundariesChanged(), d, layoutDiagrams(), and KDChart::AbstractCoordinatePlane::propertiesChanged().

◆ setVerticalRangeReversed()

void CartesianCoordinatePlane::setVerticalRangeReversed ( bool reverse )

Sets whether the vertical range should be reversed or not, i.e. small values at the bottom and large values at the top (the default) or vice versa.

Parameters

reverse Whether the vertical range should be reversed or not

Definition at line 802 of file KDChartCartesianCoordinatePlane.cpp.

References d, layoutDiagrams(), and KDChart::AbstractCoordinatePlane::propertiesChanged().

◆ setXAxisStartAtZero()

void CartesianCoordinatePlane::setXAxisStartAtZero ( bool fixedStart )

Allows to fix the lower bound of X axis to zero when diagram is in first quadrant.

The default behavior is to lower x or y bound to be 0. If this behaviour is not wanted, either CartesianCoordinatePlane::setHorizontalRange could be used instead of letting KDChart auto-adjust the ranges, or this method can be used to disable this behavior.

Definition at line 366 of file KDChartCartesianCoordinatePlane.cpp.

References d.

◆ setZoomCenter()

void CartesianCoordinatePlane::setZoomCenter ( const QPointF & center )

overridevirtual

See also: zoomCenter, setZoomFactorX, setZoomFactorY

Reimplemented from KDChart::AbstractCoordinatePlane.

Definition at line 509 of file KDChartCartesianCoordinatePlane.cpp.

References d, doneSetZoomCenter(), drawingArea(), logicalArea(), and KDChart::AbstractCoordinatePlane::propertiesChanged().

◆ setZoomFactors()

void CartesianCoordinatePlane::setZoomFactors	(	qreal	factorX,
		qreal	factorY
	)

overridevirtual

See also: setZoomFactorX,setZoomFactorY

Reimplemented from KDChart::AbstractCoordinatePlane.

Definition at line 485 of file KDChartCartesianCoordinatePlane.cpp.

References d, doneSetZoomFactorX(), doneSetZoomFactorY(), drawingArea(), logicalArea(), and KDChart::AbstractCoordinatePlane::propertiesChanged().

◆ setZoomFactorX()

void CartesianCoordinatePlane::setZoomFactorX ( qreal factor )

overridevirtual

See also: zoomFactorX, setZoomCenter

Reimplemented from KDChart::AbstractCoordinatePlane.

Definition at line 493 of file KDChartCartesianCoordinatePlane.cpp.

References d, doneSetZoomFactorX(), drawingArea(), logicalArea(), and KDChart::AbstractCoordinatePlane::propertiesChanged().

◆ setZoomFactorY()

void CartesianCoordinatePlane::setZoomFactorY ( qreal factor )

overridevirtual

See also: zoomFactorY, setZoomCenter

Reimplemented from KDChart::AbstractCoordinatePlane.

Definition at line 501 of file KDChartCartesianCoordinatePlane.cpp.

References d, doneSetZoomFactorY(), drawingArea(), logicalArea(), and KDChart::AbstractCoordinatePlane::propertiesChanged().

◆ sharedAxisMasterPlane()

AbstractCoordinatePlane * CartesianCoordinatePlane::sharedAxisMasterPlane ( QPainter * p = nullptr )

overridevirtual

reimp

Reimplemented from KDChart::AbstractCoordinatePlane.

Definition at line 747 of file KDChartCartesianCoordinatePlane.cpp.

References KDChart::AbstractCoordinatePlane::diagram(), KDChart::CartesianAxis::isAbscissa(), KDChart::CartesianAxis::isOrdinate(), and translate().

◆ sizeHint()

QSize CartesianCoordinatePlane::sizeHint ( ) const

overrideprotected

Definition at line 875 of file KDChartCartesianCoordinatePlane.cpp.

References d, heightForWidth(), and KDChart::AbstractCoordinatePlane::sizeHint().

◆ slotLayoutChanged

void CartesianCoordinatePlane::slotLayoutChanged ( AbstractDiagram * )

protectedslot

Definition at line 117 of file KDChartCartesianCoordinatePlane.cpp.

References layoutDiagrams().

Referenced by addDiagram(), and setAxesCalcModes().

◆ translate()

const QPointF CartesianCoordinatePlane::translate ( const QPointF & diagramPoint ) const

overridevirtual

Translate the given point in value space coordinates to a position in pixel space.

Parameters

diagramPoint The point in value coordinates.

Returns: The translated point.

Implements KDChart::AbstractCoordinatePlane.

Definition at line 421 of file KDChartCartesianCoordinatePlane.cpp.

References d.

Referenced by KDChart::CartesianAxis::paintCtx(), and sharedAxisMasterPlane().

◆ translateBack()

const QPointF CartesianCoordinatePlane::translateBack ( const QPointF & screenPoint ) const

Definition at line 430 of file KDChartCartesianCoordinatePlane.cpp.

References d.

Referenced by KDChart::LeveyJenningsCoordinatePlane::translateBack(), and visibleDataRange().

◆ verticalRange()

QPair< qreal, qreal > CartesianCoordinatePlane::verticalRange ( ) const

Returns: The largest and smallest visible horizontal value space value. If this is not explicitly set, or if both values are the same, the plane will use the union of the dataBoundaries of all associated diagrams.
