AbstractDiagram defines the interface for diagram classes. More...

#include <KDChartAbstractDiagram.h>

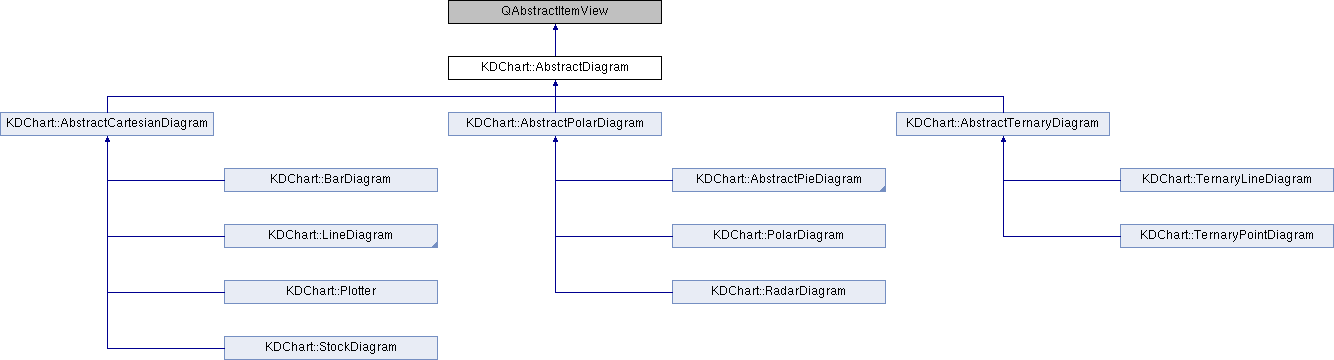

Inheritance diagram for KDChart::AbstractDiagram:

Signals
void	aboutToBeDestroyed ()

void	attributesModelAboutToChange (AttributesModel newModel, AttributesModel oldModel)

void	boundariesChanged ()

void	dataHidden ()

void	layoutChanged (AbstractDiagram *)

void	modelDataChanged ()

void	modelsChanged ()

void	propertiesChanged ()

void	viewportCoordinateSystemChanged ()

Public Member Functions
	~AbstractDiagram () override

bool	allowOverlappingDataValueTexts () const

bool	antiAliasing () const

virtual AttributesModel *	attributesModel () const

QBrush	brush () const

QBrush	brush (const QModelIndex &index) const

QBrush	brush (int dataset) const

bool	compare (const AbstractDiagram *other) const

AbstractCoordinatePlane *	coordinatePlane () const

const QPair< QPointF, QPointF >	dataBoundaries () const
	Return the bottom left and top right data point, that the diagram will display (unless the grid adjusts these values). More...

void	dataChanged (const QModelIndex &topLeft, const QModelIndex &bottomRight, const QVector< int > &roles=QVector< int >()) override

QList< QBrush >	datasetBrushes () const

int	datasetDimension () const

QStringList	datasetLabels () const

QList< MarkerAttributes >	datasetMarkers () const

QList< QPen >	datasetPens () const

DataValueAttributes	dataValueAttributes () const

DataValueAttributes	dataValueAttributes (const QModelIndex &index) const

DataValueAttributes	dataValueAttributes (int dataset) const

void	doItemsLayout () override

int	horizontalOffset () const override

QModelIndex	indexAt (const QPoint &point) const override

QModelIndexList	indexesAt (const QPoint &point) const

QModelIndexList	indexesIn (const QRect &rect) const

bool	isHidden () const

bool	isHidden (const QModelIndex &index) const

bool	isHidden (int dataset) const

bool	isIndexHidden (const QModelIndex &index) const override

QStringList	itemRowLabels () const

QModelIndex	moveCursor (CursorAction cursorAction, Qt::KeyboardModifiers modifiers) override

virtual void	paint (PaintContext *paintContext)=0

void	paintDataValueText (QPainter *painter, const QModelIndex &index, const QPointF &pos, qreal value)

void	paintMarker (QPainter *painter, const DataValueAttributes &a, const QModelIndex &index, const QPointF &pos)

virtual void	paintMarker (QPainter *painter, const MarkerAttributes &markerAttributes, const QBrush &brush, const QPen &, const QPointF &point, const QSizeF &size)

void	paintMarker (QPainter *painter, const QModelIndex &index, const QPointF &pos)

QPen	pen () const

QPen	pen (const QModelIndex &index) const

QPen	pen (int dataset) const

bool	percentMode () const
	Returns whether this diagram is drawn in percent mode. More...

virtual void	resize (const QSizeF &area)=0

void	scrollTo (const QModelIndex &index, ScrollHint hint=EnsureVisible) override

void	setAllowOverlappingDataValueTexts (bool allow)

void	setAntiAliasing (bool enabled)

virtual void	setAttributesModel (AttributesModel *model)
	Sets an external AttributesModel on this diagram. More...

void	setBrush (const QBrush &brush)

void	setBrush (const QModelIndex &index, const QBrush &brush)

void	setBrush (int dataset, const QBrush &brush)

virtual void	setCoordinatePlane (AbstractCoordinatePlane *plane)

Q_DECL_DEPRECATED void	setDatasetDimension (int dimension)

void	setDataValueAttributes (const DataValueAttributes &a)

void	setDataValueAttributes (const QModelIndex &index, const DataValueAttributes &a)

void	setDataValueAttributes (int dataset, const DataValueAttributes &a)

void	setHidden (bool hidden)

void	setHidden (const QModelIndex &index, bool hidden)

void	setHidden (int dataset, bool hidden)

void	setModel (QAbstractItemModel *model) override

void	setPen (const QModelIndex &index, const QPen &pen)

void	setPen (const QPen &pen)

void	setPen (int dataset, const QPen &pen)

Q_DECL_DEPRECATED void	setPercentMode (bool percent)
	Deprecated method that turns the percent mode of this diagram on or off. More...

void	setRootIndex (const QModelIndex &idx) override
	Reimplemented for internal purposes. More...

void	setSelection (const QRect &rect, QItemSelectionModel::SelectionFlags command) override

void	setSelectionModel (QItemSelectionModel *selectionModel) override

void	setUnitPrefix (const QString &prefix, int column, Qt::Orientation orientation)

void	setUnitPrefix (const QString &prefix, Qt::Orientation orientation)

void	setUnitSuffix (const QString &suffix, int column, Qt::Orientation orientation)

void	setUnitSuffix (const QString &suffix, Qt::Orientation orientation)

QString	unitPrefix (int column, Qt::Orientation orientation, bool fallback=false) const

QString	unitPrefix (Qt::Orientation orientation) const

QString	unitSuffix (int column, Qt::Orientation orientation, bool fallback=false) const

QString	unitSuffix (Qt::Orientation orientation) const

void	update () const

void	useDefaultColors ()

void	useRainbowColors ()

virtual bool	usesExternalAttributesModel () const

void	useSubduedColors ()

int	verticalOffset () const override

QRect	visualRect (const QModelIndex &index) const override

virtual QRegion	visualRegion (const QModelIndex &index) const

QRegion	visualRegionForSelection (const QItemSelection &selection) const override

Protected Slots
void	setDataBoundariesDirty () const

Protected Member Functions
	AbstractDiagram (Private p, QWidget parent, AbstractCoordinatePlane *plane)

	AbstractDiagram (QWidget parent=nullptr, AbstractCoordinatePlane plane=nullptr)

QModelIndex	attributesModelRootIndex () const
	returns a QModelIndex pointing into the AttributesModel that corresponds to the root index of the diagram. More...

virtual const QPair< QPointF, QPointF >	calculateDataBoundaries () const =0

virtual bool	checkInvariants (bool justReturnTheStatus=false) const

virtual Q_DECL_DEPRECATED void	paintDataValueTexts (QPainter *painter)

virtual Q_DECL_DEPRECATED void	paintMarkers (QPainter *painter)

void	setAttributesModelRootIndex (const QModelIndex &)

void	setDatasetDimensionInternal (int dimension)

Q_DECL_DEPRECATED qreal	valueForCell (int row, int column) const

Detailed Description

AbstractDiagram defines the interface for diagram classes.

AbstractDiagram is the base class for diagram classes ("chart types").

It defines the interface, that needs to be implemented for the diagram, to function within the KDChart framework. It extends Interview's QAbstractItemView.

Definition at line 38 of file KDChartAbstractDiagram.h.

Constructor & Destructor Documentation

◆ AbstractDiagram() [1/2]

KDChart::AbstractDiagram::AbstractDiagram	(	Private *	p,
		QWidget *	parent,
		AbstractCoordinatePlane *	plane
	)

inlineexplicitprotected

◆ AbstractDiagram() [2/2]

AbstractDiagram::AbstractDiagram	(	QWidget *	parent = `nullptr`,
		AbstractCoordinatePlane *	plane = `nullptr`
	)

explicitprotected

Definition at line 37 of file KDChartAbstractDiagram.cpp.

◆ ~AbstractDiagram()

AbstractDiagram::~AbstractDiagram ( )

override

Definition at line 45 of file KDChartAbstractDiagram.cpp.

References aboutToBeDestroyed().

Member Function Documentation

◆ aboutToBeDestroyed

void KDChart::AbstractDiagram::aboutToBeDestroyed ( )

signal

This signal is emitted when this diagram is being destroyed, but before all the data, i.e. the attributes model, is invalidated.

Referenced by KDChart::DiagramObserver::DiagramObserver(), and ~AbstractDiagram().

◆ allowOverlappingDataValueTexts()

bool AbstractDiagram::allowOverlappingDataValueTexts ( ) const

Returns: Whether data value labels are allowed to overlap.

Definition at line 335 of file KDChartAbstractDiagram.cpp.

References d.

Referenced by compare().

◆ antiAliasing()

bool AbstractDiagram::antiAliasing ( ) const

Returns: Whether anti-aliasing is to be used for rendering this diagram.

Definition at line 346 of file KDChartAbstractDiagram.cpp.

References d.

Referenced by compare().

◆ attributesModel()

AttributesModel * AbstractDiagram::attributesModel ( ) const

virtual

Returns the AttributesModel, that is used by this diagram. By default each diagram owns its own AttributesModel, which should never be deleted. Only if a user-supplied AttributesModel has been set does the pointer returned here not belong to the diagram.

Returns: The AttributesModel associated with the diagram.

See also: setAttributesModel

Definition at line 168 of file KDChartAbstractDiagram.cpp.

References d.

Referenced by KDChart::TernaryLineDiagram::TernaryLineDiagram(), brush(), KDChart::StockDiagram::calculateDataBoundaries(), compare(), KDChart::Plotter::connectAttributesModel(), dataValueAttributes(), isHidden(), itemRowLabels(), KDChart::StockDiagram::paint(), pen(), KDChart::AbstractCartesianDiagram::setAttributesModel(), KDChart::BarDiagram::setBarAttributes(), setBrush(), setPen(), KDChart::AbstractCartesianDiagram::setRootIndex(), KDChart::StockDiagram::setStockBarAttributes(), KDChart::StockDiagram::setThreeDBarAttributes(), KDChart::Plotter::setUseDataCompression(), KDChart::StockDiagram::stockBarAttributes(), and KDChart::StockDiagram::threeDBarAttributes().

◆ attributesModelAboutToChange

void KDChart::AbstractDiagram::attributesModelAboutToChange	(	AttributesModel *	newModel,
		AttributesModel *	oldModel
	)

signal

This signal is emitted just before the new attributes model is connected internally. It gives you a chance to connect to its signals first or perform other setup work.

◆ attributesModelRootIndex()

QModelIndex AbstractDiagram::attributesModelRootIndex ( ) const

protected

returns a QModelIndex pointing into the AttributesModel that corresponds to the root index of the diagram.

Definition at line 196 of file KDChartAbstractDiagram.cpp.

References d.

Referenced by KDChart::StockDiagram::calculateDataBoundaries(), itemRowLabels(), KDChart::BarDiagram::numberOfAbscissaSegments(), KDChart::LineDiagram::numberOfAbscissaSegments(), KDChart::Plotter::numberOfAbscissaSegments(), KDChart::BarDiagram::numberOfOrdinateSegments(), KDChart::LineDiagram::numberOfOrdinateSegments(), KDChart::Plotter::numberOfOrdinateSegments(), KDChart::StockDiagram::paint(), and valueForCell().

◆ boundariesChanged

void KDChart::AbstractDiagram::boundariesChanged ( )

signal

Emitted upon change of a data boundary

Referenced by KDChart::AbstractCoordinatePlane::addDiagram(), and KDChart::Plotter::setType().

◆ brush() [1/3]

QBrush AbstractDiagram::brush ( ) const

Retrieve the brush to be used for painting datapoints globally. This will fall back automatically to the default settings, if there are no specific settings.

Returns: The brush to use for painting.

Definition at line 664 of file KDChartAbstractDiagram.cpp.

References attributesModel(), KDChart::AttributesModel::data(), and KDChart::DatasetBrushRole.

Referenced by brush(), datasetBrushes(), KDChart::TernaryLineDiagram::paint(), KDChart::TernaryPointDiagram::paint(), KDChart::PolarDiagram::paint(), KDChart::RadarDiagram::paint(), paintMarker(), setBrush(), KDChart::StockDiagram::setDownTrendCandlestickBrush(), and KDChart::StockDiagram::setUpTrendCandlestickBrush().

◆ brush() [2/3]

QBrush AbstractDiagram::brush ( const QModelIndex & index ) const

Retrieve the brush to be used, for painting the datapoint at the given index in the model.

Parameters

index The index of the datapoint in the model. With a dataset dimension of two, this is the index of the key of each key/value pair.

Returns: The brush to use for painting.

Definition at line 677 of file KDChartAbstractDiagram.cpp.

References attributesModel(), KDChart::AttributesModel::data(), and KDChart::DatasetBrushRole.

◆ brush() [3/3]

QBrush AbstractDiagram::brush ( int dataset ) const

Retrieve the brush to be used for the given dataset. This will fall back automatically to what was set at model level, if there are no dataset specific settings.

Parameters

dataset The dataset to retrieve the brush for.

Returns: The brush to use for painting.

Definition at line 669 of file KDChartAbstractDiagram.cpp.

References brush(), d, and KDChart::DatasetBrushRole.

◆ calculateDataBoundaries()

virtual const QPair<QPointF, QPointF> KDChart::AbstractDiagram::calculateDataBoundaries ( ) const

protectedpure virtual

Implemented in KDChart::AbstractTernaryDiagram, KDChart::TernaryPointDiagram, KDChart::TernaryLineDiagram, KDChart::RingDiagram, KDChart::RadarDiagram, KDChart::PolarDiagram, KDChart::PieDiagram, KDChart::StockDiagram, KDChart::Plotter, KDChart::LineDiagram, KDChart::LeveyJenningsDiagram, and KDChart::BarDiagram.

Referenced by dataBoundaries().

◆ checkInvariants()

bool AbstractDiagram::checkInvariants ( bool justReturnTheStatus = false ) const

protectedvirtual

◆ compare()

bool AbstractDiagram::compare ( const AbstractDiagram * other ) const

Returns true if both diagrams have the same settings.

Definition at line 57 of file KDChartAbstractDiagram.cpp.

References allowOverlappingDataValueTexts(), antiAliasing(), attributesModel(), KDChart::AttributesModel::compare(), datasetDimension(), and percentMode().

◆ coordinatePlane()

AbstractCoordinatePlane * AbstractDiagram::coordinatePlane ( ) const

The coordinate plane associated with the diagram. This determines how coordinates in value space are mapped into pixel space. By default this is a CartesianCoordinatePlane.

Returns: The coordinate plane associated with the diagram.

Definition at line 79 of file KDChartAbstractDiagram.cpp.

References d.

Referenced by KDChart::Plotter::calcMergeRadius(), KDChart::BarDiagram::calculateDataBoundaries(), KDChart::LineDiagram::calculateDataBoundaries(), checkInvariants(), KDChart::Plotter::connectAttributesModel(), KDChart::LeveyJenningsDiagram::iconRect(), KDChart::PolarDiagram::paint(), KDChart::RadarDiagram::paint(), paintDataValueTexts(), paintMarkers(), KDChart::AbstractPolarDiagram::polarCoordinatePlane(), KDChart::BarDiagram::resize(), KDChart::LineDiagram::resize(), KDChart::Plotter::resize(), and KDChart::StockDiagram::resize().

◆ dataBoundaries()

const QPair< QPointF, QPointF > AbstractDiagram::dataBoundaries ( ) const

Return the bottom left and top right data point, that the diagram will display (unless the grid adjusts these values).

This method returns a cached result of calculations done by calculateDataBoundaries. Classes derived from AbstractDiagram must implement the calculateDataBoundaries function, to specify their own way of calculating the data boundaries. If derived classes want to force recalculation of the data boundaries, they can call setDataBoundariesDirty()

Returned value is in diagram coordinates.

Definition at line 84 of file KDChartAbstractDiagram.cpp.

References calculateDataBoundaries(), and d.

Referenced by KDChart::PolarGrid::drawGrid(), KDChart::RadarGrid::drawGrid(), KDChart::CartesianCoordinatePlane::getRawDataBoundingRectFromDiagrams(), KDChart::BarDiagram::paint(), KDChart::LeveyJenningsDiagram::paint(), KDChart::LineDiagram::paint(), KDChart::Plotter::paint(), and KDChart::RadarDiagram::paint().

◆ dataChanged()

void AbstractDiagram::dataChanged	(	const QModelIndex &	topLeft,
		const QModelIndex &	bottomRight,
		const QVector< int > &	roles = `QVector<int>()`
	)

override

Reimplemented for internal purposes.

Definition at line 217 of file KDChartAbstractDiagram.cpp.

References setDataBoundariesDirty().

◆ dataHidden

void KDChart::AbstractDiagram::dataHidden ( )

signal

This signal is emitted, when the hidden status of at least one data cell was (un)set.

Referenced by setHidden().

◆ datasetBrushes()

QList< QBrush > AbstractDiagram::datasetBrushes ( ) const

The set of dataset brushes currently used, for use in legends, etc.

Note: Cell-level override brushes, if set, take precedence over the dataset values, so you might need to check these too, in order to find the brush, that is used for a single cell.

Returns: The current set of dataset brushes.

Definition at line 870 of file KDChartAbstractDiagram.cpp.

References brush(), and d.

Referenced by KDChart::Legend::datasetCount(), KDChart::Legend::removeDiagram(), and KDChart::Legend::setBrushesFromDiagram().

◆ datasetDimension()

int AbstractDiagram::datasetDimension ( ) const

The dataset dimension of a diagram determines how many value dimensions it expects each datapoint to have. For each dimension and data series it will expect one column of values in the model. If the dimension is 1, automatic values will be used for X.

For example, a diagram with the default dimension of 1 will have one column per data series (the Y values) and will use automatic values for X (1, 2, 3, ... n). If the dimension is 2, the diagram will use the first, (and the third, fifth, etc) columns as X values, and the second, (and the fourth, sixth, etc) column as Y values.

Returns: The dataset dimension of the diagram.

Definition at line 921 of file KDChartAbstractDiagram.cpp.

References d.

Referenced by compare(), KDChart::CartesianCoordinatePlane::getDataDimensionsList(), KDChart::TernaryLineDiagram::paint(), KDChart::TernaryPointDiagram::paint(), paintDataValueTexts(), paintMarkers(), KDChart::LineDiagram::setType(), and KDChart::Plotter::setType().

◆ datasetLabels()

QStringList AbstractDiagram::datasetLabels ( ) const

The set of dataset labels currently displayed, for use in legends, etc.

Returns: The set of dataset labels currently displayed.

Definition at line 857 of file KDChartAbstractDiagram.cpp.

References d.

Referenced by KDChart::Legend::datasetCount().

◆ datasetMarkers()

QList< MarkerAttributes > AbstractDiagram::datasetMarkers ( ) const

The set of dataset markers currently used, for use in legends, etc.

Note: Cell-level override markers, if set, take precedence over the dataset values, so you might need to check these too, in order to find the marker, that is shown for a single cell.

Returns: The current set of dataset brushes.

Definition at line 896 of file KDChartAbstractDiagram.cpp.

References d, dataValueAttributes(), and KDChart::DataValueAttributes::markerAttributes().

◆ datasetPens()

QList< QPen > AbstractDiagram::datasetPens ( ) const

The set of dataset pens currently used, for use in legends, etc.

Note: Cell-level override pens, if set, take precedence over the dataset values, so you might need to check these too, in order to find the pens, that is used for a single cell.

Returns: The current set of dataset pens.

Definition at line 883 of file KDChartAbstractDiagram.cpp.

References d, and pen().

Referenced by KDChart::Legend::removeDiagram().

◆ dataValueAttributes() [1/3]

DataValueAttributes AbstractDiagram::dataValueAttributes ( ) const

Retrieve the DataValueAttributes specified globally. This will fall back automatically to the default settings, if there are no specific settings.

Returns: The global DataValueAttributes.

Definition at line 287 of file KDChartAbstractDiagram.cpp.

References attributesModel(), KDChart::DataValueLabelAttributesRole, and KDChart::AttributesModel::modelData().

Referenced by KDChart::TernaryLineDiagram::TernaryLineDiagram(), datasetMarkers(), dataValueAttributes(), KDChart::TernaryLineDiagram::paint(), KDChart::TernaryPointDiagram::paint(), paintMarker(), and setAllowOverlappingDataValueTexts().

◆ dataValueAttributes() [2/3]

DataValueAttributes AbstractDiagram::dataValueAttributes ( const QModelIndex & index ) const

Retrieve the DataValueAttributes for the given index. This will fall back automatically to what was set at dataset or model level, if there are no datapoint specific settings.

Parameters

index The datapoint to retrieve the attributes for. With a dataset dimension of two, this is the index of the key of each key/value pair.

Returns: The DataValueAttributes for the given index.

Definition at line 312 of file KDChartAbstractDiagram.cpp.

References attributesModel(), KDChart::AttributesModel::data(), and KDChart::DataValueLabelAttributesRole.

◆ dataValueAttributes() [3/3]

DataValueAttributes AbstractDiagram::dataValueAttributes ( int dataset ) const

Retrieve the DataValueAttributes for the given dataset. This will fall back automatically to what was set at model level, if there are no dataset specific settings.

Parameters

dataset The dataset to retrieve the attributes for.

Returns: The DataValueAttributes for the given dataset.

Definition at line 292 of file KDChartAbstractDiagram.cpp.

References d, dataValueAttributes(), and KDChart::DataValueLabelAttributesRole.

◆ doItemsLayout()

void AbstractDiagram::doItemsLayout ( )

override

Reimplemented for internal purposes.

Definition at line 208 of file KDChartAbstractDiagram.cpp.

References d, and update().

Referenced by setModel().

◆ horizontalOffset()

int AbstractDiagram::horizontalOffset ( ) const

override

Reimplemented for internal purposes.

Definition at line 787 of file KDChartAbstractDiagram.cpp.

◆ indexAt()

QModelIndex AbstractDiagram::indexAt ( const QPoint & point ) const

override

Reimplemented for internal purposes.

Definition at line 963 of file KDChartAbstractDiagram.cpp.

References d.

◆ indexesAt()

QModelIndexList AbstractDiagram::indexesAt ( const QPoint & point ) const

This method is added alongside with indexAt from QAIM, since in kdchart multiple indexes can be displayed at the same spot.

Definition at line 968 of file KDChartAbstractDiagram.cpp.

References d.

◆ indexesIn()

QModelIndexList AbstractDiagram::indexesIn ( const QRect & rect ) const

Definition at line 973 of file KDChartAbstractDiagram.cpp.

References d.

◆ isHidden() [1/3]

bool AbstractDiagram::isHidden ( ) const

Retrieve the hidden status specified globally. This will fall back automatically to the default settings ( = not hidden), if there are no specific settings.

Returns: The global hidden status.

Definition at line 249 of file KDChartAbstractDiagram.cpp.

References attributesModel(), KDChart::DataHiddenRole, and KDChart::AttributesModel::modelData().

Referenced by isHidden().

◆ isHidden() [2/3]

bool AbstractDiagram::isHidden ( const QModelIndex & index ) const

Retrieve the hidden status for the given index. This will fall back automatically to what was set at dataset or diagram level, if there are no datapoint specific settings.

Parameters

index The datapoint to retrieve the hidden status for.

Returns: The hidden status for the given index.

Definition at line 262 of file KDChartAbstractDiagram.cpp.

References attributesModel(), d, KDChart::DataHiddenRole, and isHidden().

◆ isHidden() [3/3]

bool AbstractDiagram::isHidden ( int dataset ) const

Retrieve the hidden status for the given dataset. This will fall back automatically to what was set at diagram level, if there are no dataset specific settings.

Parameters

dataset The dataset to retrieve the hidden status for.

Returns: The hidden status for the given dataset.

Definition at line 254 of file KDChartAbstractDiagram.cpp.

References d, KDChart::DataHiddenRole, and isHidden().

◆ isIndexHidden()

bool AbstractDiagram::isIndexHidden ( const QModelIndex & index ) const

override

Reimplemented for internal purposes.

Definition at line 797 of file KDChartAbstractDiagram.cpp.

◆ itemRowLabels()

QStringList AbstractDiagram::itemRowLabels ( ) const

The set of item row labels currently displayed, for use in Abscissa axes, etc.

Returns: The set of item row labels currently displayed.

Definition at line 843 of file KDChartAbstractDiagram.cpp.

References attributesModel(), attributesModelRootIndex(), KDChart::AttributesModel::headerData(), KDChart::AttributesModel::rowCount(), unitPrefix(), and unitSuffix().

◆ layoutChanged

void KDChart::AbstractDiagram::layoutChanged ( AbstractDiagram * )

signal

Diagrams are supposed to emit this signal, when the layout of one of their element changes. Layouts can change, for example, when axes are added or removed, or when the configuration was changed in a way that the axes or the diagram itself are displayed in a different geometry. Changes in the diagrams coordinate system also result in the layoutChanged() signal being emitted.

Referenced by KDChart::CartesianCoordinatePlane::addDiagram(), KDChart::PolarCoordinatePlane::addDiagram(), KDChart::LineDiagram::setCenterDataPoints(), setDatasetDimensionInternal(), KDChart::AbstractPieDiagram::setPieAttributes(), KDChart::BarDiagram::setThreeDBarAttributes(), KDChart::AbstractPieDiagram::setThreeDPieAttributes(), KDChart::LineDiagram::setType(), and KDChart::Plotter::setType().

◆ modelDataChanged

void KDChart::AbstractDiagram::modelDataChanged ( )

signal

This signal is emitted, when the model data is changed.

Referenced by KDChart::AbstractCoordinatePlane::addDiagram(), and KDChart::AbstractCoordinatePlane::takeDiagram().

◆ modelsChanged

void KDChart::AbstractDiagram::modelsChanged ( )

signal

This signal is emitted when either the model or the AttributesModel is replaced.

Referenced by KDChart::DiagramObserver::DiagramObserver(), KDChart::AbstractCoordinatePlane::addDiagram(), setAttributesModel(), setModel(), setSelectionModel(), and KDChart::AbstractCoordinatePlane::takeDiagram().

◆ moveCursor()

QModelIndex AbstractDiagram::moveCursor	(	CursorAction	cursorAction,
		Qt::KeyboardModifiers	modifiers
	)

override

Reimplemented for internal purposes.

Definition at line 782 of file KDChartAbstractDiagram.cpp.

◆ paint()

virtual void KDChart::AbstractDiagram::paint ( PaintContext * paintContext )

pure virtual

Draw the diagram contents to the rectangle and painter, that are passed in as part of the paint context.

Parameters

paintContext All information needed for painting.

Implemented in KDChart::TernaryPointDiagram, KDChart::TernaryLineDiagram, KDChart::RingDiagram, KDChart::RadarDiagram, KDChart::PolarDiagram, KDChart::PieDiagram, KDChart::StockDiagram, KDChart::Plotter, KDChart::LineDiagram, KDChart::LeveyJenningsDiagram, and KDChart::BarDiagram.

◆ paintDataValueText()

void AbstractDiagram::paintDataValueText	(	QPainter *	painter,
		const QModelIndex &	index,
		const QPointF &	pos,
		qreal	value
	)

Definition at line 362 of file KDChartAbstractDiagram.cpp.

References d.

Referenced by paintDataValueTexts().

◆ paintDataValueTexts()

void AbstractDiagram::paintDataValueTexts ( QPainter * painter )

protectedvirtual

Deprecated:: This method is deprecated and provided for backward-compatibility only. Your own diagram classes should call d->paintDataValueTextsAndMarkers() instead which also is taking care for showing your cell-specific comments, if any,

Definition at line 370 of file KDChartAbstractDiagram.cpp.

References checkInvariants(), coordinatePlane(), d, datasetDimension(), paintDataValueText(), and translate().

◆ paintMarker() [1/3]

void AbstractDiagram::paintMarker	(	QPainter *	painter,
		const DataValueAttributes &	a,
		const QModelIndex &	index,
		const QPointF &	pos
	)

Definition at line 396 of file KDChartAbstractDiagram.cpp.

References brush(), checkInvariants(), d, KDChart::DataValueAttributes::isVisible(), KDChart::MarkerAttributes::isVisible(), KDChart::DataValueAttributes::markerAttributes(), KDChart::MarkerAttributes::markerColor(), KDChart::MarkerAttributes::markerSize(), paintMarker(), and KDChart::MarkerAttributes::pen().

◆ paintMarker() [2/3]

void AbstractDiagram::paintMarker	(	QPainter *	painter,
		const MarkerAttributes &	markerAttributes,
		const QBrush &	brush,
		const QPen &	pen,
		const QPointF &	point,
		const QSizeF &	size
	)

virtual

Definition at line 435 of file KDChartAbstractDiagram.cpp.

Referenced by KDChart::TernaryLineDiagram::paint(), KDChart::TernaryPointDiagram::paint(), KDChart::MarkerLayoutItem::paintIntoRect(), paintMarker(), and paintMarkers().

◆ paintMarker() [3/3]

void AbstractDiagram::paintMarker	(	QPainter *	painter,
		const QModelIndex &	index,
		const QPointF &	pos
	)

Definition at line 426 of file KDChartAbstractDiagram.cpp.

References checkInvariants(), dataValueAttributes(), and paintMarker().

◆ paintMarkers()

void AbstractDiagram::paintMarkers ( QPainter * painter )

protectedvirtual

Deprecated:: This method is deprecated and provided for backward-compatibility only. Your own diagram classes should call d->paintDataValueTextsAndMarkers() instead which also is taking care for showing your cell-specific comments, if any,

Definition at line 576 of file KDChartAbstractDiagram.cpp.

References checkInvariants(), coordinatePlane(), datasetDimension(), paintMarker(), and translate().

◆ pen() [1/3]

QPen AbstractDiagram::pen ( ) const

Retrieve the pen to be used for painting datapoints globally. This will fall back automatically to the default settings, if there are no specific settings.

Returns: The pen to use for painting.

Definition at line 622 of file KDChartAbstractDiagram.cpp.

References attributesModel(), KDChart::AttributesModel::data(), and KDChart::DatasetPenRole.

Referenced by datasetPens(), KDChart::LeveyJenningsDiagram::paint(), KDChart::TernaryLineDiagram::paint(), KDChart::TernaryPointDiagram::paint(), paintMarker(), pen(), KDChart::StockDiagram::setDownTrendCandlestickPen(), KDChart::StockDiagram::setLowHighLinePen(), setPen(), KDChart::LeveyJenningsDiagram::setScanLinePen(), and KDChart::StockDiagram::setUpTrendCandlestickPen().

◆ pen() [2/3]

QPen AbstractDiagram::pen ( const QModelIndex & index ) const

Retrieve the pen to be used, for painting the datapoint at the given index in the model.

Parameters

index The index of the datapoint in the model. With a dataset dimension of two, this is the index of the key of each key/value pair.

Returns: The pen to use for painting.

Definition at line 635 of file KDChartAbstractDiagram.cpp.

References attributesModel(), KDChart::AttributesModel::data(), and KDChart::DatasetPenRole.

◆ pen() [3/3]

QPen AbstractDiagram::pen ( int dataset ) const

Retrieve the pen to be used for the given dataset. This will fall back automatically to what was set at model level, if there are no dataset specific settings.

Parameters

dataset The dataset to retrieve the pen for.

Returns: The pen to use for painting.

Definition at line 627 of file KDChartAbstractDiagram.cpp.

References d, KDChart::DatasetPenRole, and pen().

◆ percentMode()

bool AbstractDiagram::percentMode ( ) const

Returns whether this diagram is drawn in percent mode.

If true, all data points in the same column of a diagram will be drawn at the same X coordinate and stacked up so that the distance from the last data point (or the zero line) to a data point P is always the ratio of (Y-Value of P)/ (sum of all Y-Values in same column as P) relative to the diagrams height (or width, if abscissa and ordinate are swapped).

Note that this property is not applicable to all diagram types.

Definition at line 357 of file KDChartAbstractDiagram.cpp.

References d.

Referenced by compare().

◆ propertiesChanged

void KDChart::AbstractDiagram::propertiesChanged ( )

signal

Emitted upon change of a property of the Diagram.

Referenced by KDChart::CartesianCoordinatePlane::addDiagram(), KDChart::LineDiagram::resetLineAttributes(), KDChart::Plotter::resetLineAttributes(), setAllowOverlappingDataValueTexts(), setAntiAliasing(), KDChart::BarDiagram::setBarAttributes(), setBrush(), KDChart::LineDiagram::setCenterDataPoints(), setDataValueAttributes(), KDChart::LineDiagram::setLineAttributes(), KDChart::Plotter::setLineAttributes(), KDChart::LineDiagram::setLineTension(), setPen(), setPercentMode(), KDChart::StockDiagram::setStockBarAttributes(), KDChart::BarDiagram::setThreeDBarAttributes(), KDChart::StockDiagram::setThreeDBarAttributes(), KDChart::LineDiagram::setThreeDLineAttributes(), KDChart::Plotter::setThreeDLineAttributes(), KDChart::LineDiagram::setType(), KDChart::Plotter::setType(), KDChart::StockDiagram::setType(), KDChart::LineDiagram::setValueTrackerAttributes(), and KDChart::Plotter::setValueTrackerAttributes().

◆ resize()

virtual void KDChart::AbstractDiagram::resize ( const QSizeF & area )

pure virtual

Called by the widget's sizeEvent. Adjust all internal structures, that are calculated, depending on the size of the widget.

Parameters

area	Size of the widget

Implemented in KDChart::StockDiagram, KDChart::TernaryPointDiagram, KDChart::TernaryLineDiagram, KDChart::RingDiagram, KDChart::RadarDiagram, KDChart::PolarDiagram, KDChart::PieDiagram, KDChart::Plotter, KDChart::LineDiagram, and KDChart::BarDiagram.

Referenced by KDChart::CartesianCoordinatePlane::setGeometry().

◆ scrollTo()

void AbstractDiagram::scrollTo	(	const QModelIndex &	index,
		ScrollHint	hint = `EnsureVisible`
	)

override

Reimplemented for internal purposes.

Definition at line 776 of file KDChartAbstractDiagram.cpp.

◆ setAllowOverlappingDataValueTexts()

void AbstractDiagram::setAllowOverlappingDataValueTexts ( bool allow )

Set whether data value labels are allowed to overlap.

Parameters

allow True means that overlapping labels are allowed.

Definition at line 326 of file KDChartAbstractDiagram.cpp.

References d, dataValueAttributes(), propertiesChanged(), setDataValueAttributes(), and KDChart::DataValueAttributes::setShowOverlappingDataLabels().

◆ setAntiAliasing()

void AbstractDiagram::setAntiAliasing ( bool enabled )

Set whether anti-aliasing is to be used while rendering this diagram.

Parameters

enabled True means that AA is enabled.

Definition at line 340 of file KDChartAbstractDiagram.cpp.

References d, and propertiesChanged().

◆ setAttributesModel()

void AbstractDiagram::setAttributesModel ( AttributesModel * amodel )

virtual

Sets an external AttributesModel on this diagram.

Associate an AttributesModel with this diagram. Note that the diagram does not take ownership of the AttributesModel. This should thus only be used with AttributesModels that have been explicitly created by the user, and are owned by her. Setting an AttributesModel that is internal to another diagram is an error.

Correct:

AttributesModel *am = new AttributesModel( model, 0 );
diagram1->setAttributesModel( am );
diagram2->setAttributesModel( am );

Wrong:

diagram1->setAttributesModel( diagram2->attributesModel() );

Parameters

model The AttributesModel to use for this diagram.

See also: AttributesModel, usesExternalAttributesModel

By default, a diagram has it's own internal set of attributes, but an external one can be set. This can be used to share attributes between several diagrams. The diagram does not take ownership of the attributesmodel.

Parameters

amodel The AttributesModel to use for this diagram.

Reimplemented in KDChart::AbstractCartesianDiagram.

Definition at line 143 of file KDChartAbstractDiagram.cpp.

References d, modelsChanged(), and setDataBoundariesDirty().

Referenced by KDChart::AbstractCartesianDiagram::setAttributesModel().

◆ setAttributesModelRootIndex()

void AbstractDiagram::setAttributesModelRootIndex ( const QModelIndex & idx )

protected

Definition at line 187 of file KDChartAbstractDiagram.cpp.

References d, and setDataBoundariesDirty().

Referenced by setRootIndex().

◆ setBrush() [1/3]

void AbstractDiagram::setBrush ( const QBrush & brush )

Set the brush to be used, for painting all datasets in the model.

Parameters

brush The brush to use.

Definition at line 651 of file KDChartAbstractDiagram.cpp.

References attributesModel(), brush(), KDChart::DatasetBrushRole, propertiesChanged(), and KDChart::AttributesModel::setModelData().

◆ setBrush() [2/3]

void AbstractDiagram::setBrush	(	const QModelIndex &	index,
		const QBrush &	brush
	)

Set the brush to be used, for painting the datapoint at the given index.

Parameters

index	The datapoint's index in the model. With a dataset dimension of two, this is the index of the key of each key/value pair.
brush	The brush to use.

Definition at line 643 of file KDChartAbstractDiagram.cpp.

References attributesModel(), brush(), KDChart::DatasetBrushRole, propertiesChanged(), and KDChart::AttributesModel::setData().

◆ setBrush() [3/3]

void AbstractDiagram::setBrush	(	int	dataset,
		const QBrush &	brush
	)

Set the brush to be used, for painting the given dataset.

Parameters

dataset	The dataset to set the brush for.
brush	The brush to use.

Definition at line 658 of file KDChartAbstractDiagram.cpp.

References brush(), d, KDChart::DatasetBrushRole, and propertiesChanged().

◆ setCoordinatePlane()

void AbstractDiagram::setCoordinatePlane ( AbstractCoordinatePlane * plane )

virtual

Set the coordinate plane associated with the diagram. This determines how coordinates in value space are mapped into pixel space. The chart takes ownership.

Reimplemented in KDChart::AbstractCartesianDiagram.

Definition at line 203 of file KDChartAbstractDiagram.cpp.

References d.

Referenced by KDChart::AbstractCoordinatePlane::addDiagram(), KDChart::AbstractCartesianDiagram::setCoordinatePlane(), and KDChart::AbstractCoordinatePlane::takeDiagram().

◆ setDataBoundariesDirty

void AbstractDiagram::setDataBoundariesDirty ( ) const

protectedslot

Definition at line 93 of file KDChartAbstractDiagram.cpp.

References d, and update().

Referenced by dataChanged(), KDChart::BarDiagram::resize(), KDChart::LineDiagram::resize(), KDChart::StockDiagram::resize(), setAttributesModel(), setAttributesModelRootIndex(), KDChart::LineDiagram::setCenterDataPoints(), KDChart::Plotter::setDataBoundariesDirty(), setDatasetDimensionInternal(), setModel(), KDChart::BarDiagram::setThreeDBarAttributes(), KDChart::LineDiagram::setThreeDLineAttributes(), and KDChart::LineDiagram::setType().

◆ setDatasetDimension()

void AbstractDiagram::setDatasetDimension ( int dimension )

Deprecated:

Sets the dataset dimension of the diagram. Using this method is deprecated. Use the specific diagram types instead.

Definition at line 926 of file KDChartAbstractDiagram.cpp.

◆ setDatasetDimensionInternal()

void AbstractDiagram::setDatasetDimensionInternal ( int dimension )

protected

Definition at line 933 of file KDChartAbstractDiagram.cpp.

References d, layoutChanged(), and setDataBoundariesDirty().

Referenced by KDChart::TernaryLineDiagram::TernaryLineDiagram(), and KDChart::TernaryPointDiagram::TernaryPointDiagram().

◆ setDataValueAttributes() [1/3]

void AbstractDiagram::setDataValueAttributes ( const DataValueAttributes & a )

Set the DataValueAttributes for all datapoints in the model.

Parameters

a	The attributes to set.

Definition at line 320 of file KDChartAbstractDiagram.cpp.

References d, KDChart::DataValueLabelAttributesRole, and propertiesChanged().

◆ setDataValueAttributes() [2/3]

void AbstractDiagram::setDataValueAttributes	(	const QModelIndex &	index,
		const DataValueAttributes &	a
	)

Set the DataValueAttributes for the given index.

Parameters

index	The datapoint to set the attributes for. With a dataset dimension of two, this is the index of the key of each key/value pair.
a	The attributes to set.

Definition at line 273 of file KDChartAbstractDiagram.cpp.

References d, KDChart::DataValueLabelAttributesRole, and propertiesChanged().

Referenced by setAllowOverlappingDataValueTexts().

◆ setDataValueAttributes() [3/3]

void AbstractDiagram::setDataValueAttributes	(	int	dataset,
		const DataValueAttributes &	a
	)

Set the DataValueAttributes for the given dataset.

Parameters

dataset	The dataset to set the attributes for.
a	The attributes to set.

Definition at line 281 of file KDChartAbstractDiagram.cpp.

References d, KDChart::DataValueLabelAttributesRole, and propertiesChanged().

◆ setHidden() [1/3]

void AbstractDiagram::setHidden ( bool hidden )

Hide (or unhide, resp.) all datapoints in the model.

Note: Hidden data are still taken into account by the coordinate plane, so neither the grid nor your axes' ranges will change, when you hide data. For totally removing data from KD Chart's view you can use another approach: e.g. you could define a proxy model on top of your data model, and register the proxy model calling setModel() instead of registering your real data model.

Parameters

hidden The hidden status to set.

Definition at line 243 of file KDChartAbstractDiagram.cpp.

References d, dataHidden(), and KDChart::DataHiddenRole.

◆ setHidden() [2/3]

void AbstractDiagram::setHidden	(	const QModelIndex &	index,
		bool	hidden
	)

Hide (or unhide, resp.) a data cell.

Note: Hidden data are still taken into account by the coordinate plane, so neither the grid nor your axes' ranges will change, when you hide data. For totally removing data from KD Chart's view you can use another approach: e.g. you could define a proxy model on top of your data model, and register the proxy model calling setModel() instead of registering your real data model.

Parameters

index	The datapoint to set the hidden status for. With a dataset dimension of two, this is the index of the key of each key/value pair.
hidden	The hidden status to set.

Definition at line 228 of file KDChartAbstractDiagram.cpp.

References d, dataHidden(), and KDChart::DataHiddenRole.

◆ setHidden() [3/3]

void AbstractDiagram::setHidden	(	int	dataset,
		bool	hidden
	)

Hide (or unhide, resp.) a dataset.

Note: Hidden data are still taken into account by the coordinate plane, so neither the grid nor your axes' ranges will change, when you hide data. For totally removing data from KD Chart's view you can use another approach: e.g. you could define a proxy model on top of your data model, and register the proxy model calling setModel() instead of registering your real data model.

Parameters

dataset	The dataset to set the hidden status for.
hidden	The hidden status to set.

Definition at line 237 of file KDChartAbstractDiagram.cpp.

References d, dataHidden(), and KDChart::DataHiddenRole.

◆ setModel()

void AbstractDiagram::setModel ( QAbstractItemModel * model )

override

Associate a model with the diagram.

Definition at line 99 of file KDChartAbstractDiagram.cpp.

References d, doItemsLayout(), KDChart::AttributesModel::initFrom(), modelsChanged(), and setDataBoundariesDirty().

Referenced by KDChart::AbstractCartesianDiagram::setModel(), and KDChart::Widget::setType().

◆ setPen() [1/3]

void AbstractDiagram::setPen	(	const QModelIndex &	index,
		const QPen &	pen
	)

Set the pen to be used, for painting the datapoint at the given index.

Parameters

index	The datapoint's index in the model. With a dataset dimension of two, this is the index of the key of each key/value pair.
pen	The pen to use.

Definition at line 601 of file KDChartAbstractDiagram.cpp.

References attributesModel(), KDChart::DatasetPenRole, pen(), propertiesChanged(), and KDChart::AttributesModel::setData().

◆ setPen() [2/3]

void AbstractDiagram::setPen ( const QPen & pen )

Set the pen to be used, for painting all datasets in the model.

Parameters

pen	The pen to use.

Definition at line 609 of file KDChartAbstractDiagram.cpp.

References attributesModel(), KDChart::DatasetPenRole, pen(), propertiesChanged(), and KDChart::AttributesModel::setModelData().

◆ setPen() [3/3]

void AbstractDiagram::setPen	(	int	dataset,
		const QPen &	pen
	)

Set the pen to be used, for painting the given dataset.

Parameters

dataset	The dataset to set the pen for.
pen	The pen to use.

Definition at line 616 of file KDChartAbstractDiagram.cpp.

References d, KDChart::DatasetPenRole, pen(), and propertiesChanged().

◆ setPercentMode()

void AbstractDiagram::setPercentMode ( bool percent )

Deprecated method that turns the percent mode of this diagram on or off.

Deprecated:

This method is deprecated. Use the setType() method of a supporting diagram implementation instead, e.g. BarDiagram::setType().

See also: percentMode

Definition at line 351 of file KDChartAbstractDiagram.cpp.

References d, and propertiesChanged().

Referenced by KDChart::LineDiagram::setType().

◆ setRootIndex()

void AbstractDiagram::setRootIndex ( const QModelIndex & idx )

override

Reimplemented for internal purposes.

Set the root index in the model, where the diagram starts referencing data for display.

Definition at line 180 of file KDChartAbstractDiagram.cpp.

References d, and setAttributesModelRootIndex().

Referenced by KDChart::AbstractCartesianDiagram::setRootIndex().

◆ setSelection()

void AbstractDiagram::setSelection	(	const QRect &	rect,
		QItemSelectionModel::SelectionFlags	command
	)

override

Reimplemented for internal purposes.

Definition at line 802 of file KDChartAbstractDiagram.cpp.

References d.

◆ setSelectionModel()

void AbstractDiagram::setSelectionModel ( QItemSelectionModel * selectionModel )

override

Associate a seleection model with the diagrom.

Definition at line 122 of file KDChartAbstractDiagram.cpp.

References modelsChanged().

◆ setUnitPrefix() [1/2]

void AbstractDiagram::setUnitPrefix	(	const QString &	prefix,
		int	column,
		Qt::Orientation	orientation
	)

Set the unit prefix to be used on axes for one specific column.

Parameters

prefix	The prefix to be used.
column	The column which should be set.
orientation	The orientation of the axis to use.

Sets the unit prefix for one value

Parameters

prefix	the prefix to be set
column	the value using that prefix
orientation	the orientantion of the axis to set

Definition at line 688 of file KDChartAbstractDiagram.cpp.

References d.

◆ setUnitPrefix() [2/2]

void AbstractDiagram::setUnitPrefix	(	const QString &	prefix,
		Qt::Orientation	orientation
	)

Set the unit prefix to be used on axes for all columns.

Parameters

prefix	The prefix to be used.
orientation	The orientation of the axis to use.

Sets the unit prefix for all values

Parameters

prefix	the prefix to be set
orientation	the orientantion of the axis to set

Definition at line 698 of file KDChartAbstractDiagram.cpp.

References d.

◆ setUnitSuffix() [1/2]

void AbstractDiagram::setUnitSuffix	(	const QString &	suffix,
		int	column,
		Qt::Orientation	orientation
	)

Set the unit prefix to be used on axes for one specific column.

Parameters

suffix	The suffix to be used.
column	The column which should be set.
orientation	The orientation of the axis to use.

Sets the unit suffix for one value

Parameters

suffix	the suffix to be set
column	the value using that suffix
orientation	the orientantion of the axis to set

Definition at line 709 of file KDChartAbstractDiagram.cpp.

References d.

◆ setUnitSuffix() [2/2]

void AbstractDiagram::setUnitSuffix	(	const QString &	suffix,
		Qt::Orientation	orientation
	)

Set the unit prefix to be used on axes for all columns.

Parameters

suffix	The suffix to be used.
orientation	The orientation of the axis to use.

Sets the unit suffix for all values

Parameters

suffix	the suffix to be set
orientation	the orientantion of the axis to set

Definition at line 719 of file KDChartAbstractDiagram.cpp.

References d.

◆ unitPrefix() [1/2]

QString AbstractDiagram::unitPrefix	(	int	column,
		Qt::Orientation	orientation,
		bool	fallback = `false`
	)		const

Retrieves the axis unit prefix for a specific column.

Parameters

column	The column whose prefix should be retrieved.
orientation	The orientation of the axis.
fallback	If true, the prefix for all columns is returned, when none is set for the selected column.

Returns: The axis unit prefix.

Returns the unit prefix for a special value

Parameters

column	the value which's prefix is requested
orientation	the orientation of the axis
fallback	if true, the global prefix is return when no specific one is set for that value

Returns: the unit prefix

Definition at line 731 of file KDChartAbstractDiagram.cpp.

References d.

Referenced by itemRowLabels().

◆ unitPrefix() [2/2]

QString AbstractDiagram::unitPrefix ( Qt::Orientation orientation ) const

Retrieves the axis unit prefix.

Parameters

orientation The orientation of the axis.

Returns: The axis unit prefix.

Returns the global unit prefix

Parameters

orientation the orientation of the axis

Returns: the unit prefix

Definition at line 742 of file KDChartAbstractDiagram.cpp.

References d.

◆ unitSuffix() [1/2]

QString AbstractDiagram::unitSuffix	(	int	column,
		Qt::Orientation	orientation,
		bool	fallback = `false`
	)		const

Retrieves the axis unit suffix for a specific column.

Parameters

column	The column whose prefix should be retrieved.
orientation	The orientation of the axis.
fallback	If true, the suffix for all columns is returned, when none is set for the selected column.

Returns: The axis unit suffix.

Returns the unit suffix for a special value

Parameters

column	the value which's suffix is requested
orientation	the orientation of the axis
fallback	if true, the global suffix is return when no specific one is set for that value

Returns: the unit suffix

Definition at line 754 of file KDChartAbstractDiagram.cpp.

References d.

Referenced by itemRowLabels().

◆ unitSuffix() [2/2]

QString AbstractDiagram::unitSuffix ( Qt::Orientation orientation ) const

Retrieves the axis unit suffix.

Parameters

orientation The orientation of the axis.

Returns: The axis unit suffix.

Returns the global unit suffix

Parameters

orientation the orientation of the axis

Returns: the unit suffix

Definition at line 765 of file KDChartAbstractDiagram.cpp.

References d.

◆ update()

void AbstractDiagram::update ( ) const

Definition at line 956 of file KDChartAbstractDiagram.cpp.

References d.

◆ useDefaultColors()

void KDChart::AbstractDiagram::useDefaultColors ( )

Set the palette to be used, for painting datasets to the default palette.

See also: KDChart::Palette. FIXME: fold into one usePalette (KDChart::Palette&) method

Definition at line 828 of file KDChartAbstractDiagram.cpp.

References d, and KDChart::AttributesModel::PaletteTypeDefault.

◆ useRainbowColors()

void KDChart::AbstractDiagram::useRainbowColors ( )

Set the palette to be used, for painting datasets to the rainbow palette.

See also: KDChart::Palette.

Definition at line 838 of file KDChartAbstractDiagram.cpp.

References d, and KDChart::AttributesModel::PaletteTypeRainbow.

◆ usesExternalAttributesModel()

bool AbstractDiagram::usesExternalAttributesModel ( ) const

virtual

Returns whether the diagram is using its own built-in attributes model or an attributes model that was set via setAttributesModel.

See also: setAttributesModel

Definition at line 163 of file KDChartAbstractDiagram.cpp.

References d.

◆ useSubduedColors()

void KDChart::AbstractDiagram::useSubduedColors ( )

Set the palette to be used, for painting datasets to the subdued palette.

See also: KDChart::Palette.

Definition at line 833 of file KDChartAbstractDiagram.cpp.

References d, and KDChart::AttributesModel::PaletteTypeSubdued.

◆ valueForCell()

qreal AbstractDiagram::valueForCell	(	int	row,
		int	column
	)		const

protected

Helper method, retrieving the data value (DisplayRole) for a given row and column

Parameters

row	The row to query.
column	The column to query.

Returns: The value of the display role at the given row and column as a qreal.

Deprecated:

Definition at line 945 of file KDChartAbstractDiagram.cpp.

References attributesModelRootIndex(), and d.

◆ verticalOffset()

int AbstractDiagram::verticalOffset ( ) const

override

Reimplemented for internal purposes.

Definition at line 792 of file KDChartAbstractDiagram.cpp.

◆ viewportCoordinateSystemChanged

void KDChart::AbstractDiagram::viewportCoordinateSystemChanged ( )

signal

Emitted upon change of the view coordinate system

Referenced by KDChart::AbstractCartesianDiagram::setCoordinatePlane().

◆ visualRect()

QRect AbstractDiagram::visualRect ( const QModelIndex & index ) const

override

Reimplemented for internal purposes.

Definition at line 771 of file KDChartAbstractDiagram.cpp.

References d.

◆ visualRegion()

QRegion AbstractDiagram::visualRegion ( const QModelIndex & index ) const

virtual

Definition at line 822 of file KDChartAbstractDiagram.cpp.

References d.

◆ visualRegionForSelection()

QRegion AbstractDiagram::visualRegionForSelection ( const QItemSelection & selection ) const

override

Reimplemented for internal purposes.

Definition at line 812 of file KDChartAbstractDiagram.cpp.

References d.

The documentation for this class was generated from the following files:

Signals

Public Member Functions

Protected Slots

Protected Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ AbstractDiagram() [1/2]

◆ AbstractDiagram() [2/2]

◆ ~AbstractDiagram()

Member Function Documentation

◆ aboutToBeDestroyed

◆ allowOverlappingDataValueTexts()

◆ antiAliasing()

◆ attributesModel()

◆ attributesModelAboutToChange

◆ attributesModelRootIndex()

◆ boundariesChanged

◆ brush() [1/3]

◆ brush() [2/3]

◆ brush() [3/3]

◆ calculateDataBoundaries()

◆ checkInvariants()

◆ compare()

◆ coordinatePlane()

◆ dataBoundaries()

◆ dataChanged()

◆ dataHidden

◆ datasetBrushes()

◆ datasetDimension()

◆ datasetLabels()

◆ datasetMarkers()

◆ datasetPens()

◆ dataValueAttributes() [1/3]

◆ dataValueAttributes() [2/3]

◆ dataValueAttributes() [3/3]

◆ doItemsLayout()

◆ horizontalOffset()

◆ indexAt()

◆ indexesAt()

◆ indexesIn()

◆ isHidden() [1/3]

◆ isHidden() [2/3]

◆ isHidden() [3/3]

◆ isIndexHidden()

◆ itemRowLabels()

◆ layoutChanged

◆ modelDataChanged

◆ modelsChanged

◆ moveCursor()

◆ paint()

◆ paintDataValueText()

◆ paintDataValueTexts()

◆ paintMarker() [1/3]

◆ paintMarker() [2/3]

◆ paintMarker() [3/3]

◆ paintMarkers()

◆ pen() [1/3]

◆ pen() [2/3]

◆ pen() [3/3]

◆ percentMode()

◆ propertiesChanged

◆ resize()

◆ scrollTo()

◆ setAllowOverlappingDataValueTexts()

◆ setAntiAliasing()

◆ setAttributesModel()

◆ setAttributesModelRootIndex()

◆ setBrush() [1/3]

◆ setBrush() [2/3]

◆ setBrush() [3/3]

◆ setCoordinatePlane()

◆ setDataBoundariesDirty

◆ setDatasetDimension()

◆ setDatasetDimensionInternal()

◆ setDataValueAttributes() [1/3]

◆ setDataValueAttributes() [2/3]

◆ setDataValueAttributes() [3/3]

◆ setHidden() [1/3]

◆ setHidden() [2/3]

◆ setHidden() [3/3]
