Base class common for all coordinate planes, CartesianCoordinatePlane, PolarCoordinatePlane, TernaryCoordinatePlane. More...

#include <KDChartAbstractCoordinatePlane.h>

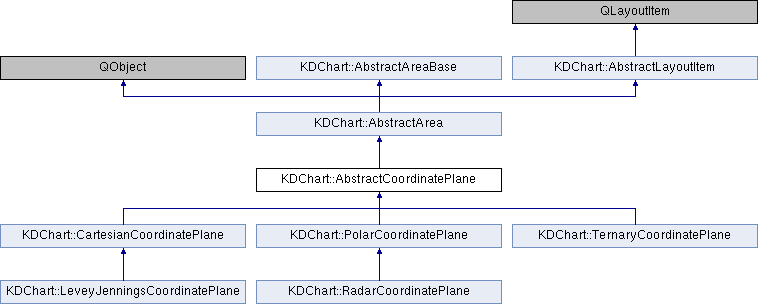

Inheritance diagram for KDChart::AbstractCoordinatePlane:

Public Types
enum	AxesCalcMode { Linear , Logarithmic }

Public Slots
void	layoutPlanes ()

void	relayout ()

void	setGridNeedsRecalculate ()

void	update ()

Signals
void	boundariesChanged ()

void	destroyedCoordinatePlane (AbstractCoordinatePlane *)

void	geometryChanged (QRect, QRect)

void	internal_geometryChanged (QRect, QRect)

void	needLayoutPlanes ()

void	needRelayout ()

void	needUpdate ()

void	propertiesChanged ()

void	viewportCoordinateSystemChanged ()

Signals inherited from KDChart::AbstractArea
void	positionChanged (AbstractArea *)

Public Member Functions
	~AbstractCoordinatePlane () override

virtual void	addDiagram (AbstractDiagram *diagram)

AbstractDiagram *	diagram ()

AbstractDiagramList	diagrams ()

ConstAbstractDiagramList	diagrams () const

Qt::Orientations	expandingDirections () const override

QRect	geometry () const override

GridAttributes	globalGridAttributes () const

DataDimensionsList	gridDimensionsList ()

bool	isCornerSpacersEnabled () const

bool	isEmpty () const override

bool	isRubberBandZoomingEnabled () const

bool	isVisiblePoint (const QPointF &point) const

virtual void	layoutDiagrams ()=0

QSize	maximumSize () const override

QSize	minimumSize () const override

virtual void	mouseDoubleClickEvent (QMouseEvent *event)

virtual void	mouseMoveEvent (QMouseEvent *event)

virtual void	mousePressEvent (QMouseEvent *event)

virtual void	mouseReleaseEvent (QMouseEvent *event)

Chart *	parent ()

const Chart *	parent () const

AbstractCoordinatePlane *	referenceCoordinatePlane () const

virtual void	replaceDiagram (AbstractDiagram diagram, AbstractDiagram oldDiagram=nullptr)

void	setCornerSpacersEnabled (bool enable)

void	setGeometry (const QRect &r) override

void	setGlobalGridAttributes (const GridAttributes &)

void	setParent (Chart *parent)

void	setReferenceCoordinatePlane (AbstractCoordinatePlane *plane)

void	setRubberBandZoomingEnabled (bool enable)

virtual void	setZoomCenter (const QPointF &center)

virtual void	setZoomFactors (qreal factorX, qreal factorY)

virtual void	setZoomFactorX (qreal factor)

virtual void	setZoomFactorY (qreal factor)

virtual AbstractCoordinatePlane *	sharedAxisMasterPlane (QPainter *p=nullptr)

QSize	sizeHint () const override

virtual void	takeDiagram (AbstractDiagram *diagram)

virtual const QPointF	translate (const QPointF &diagramPoint) const =0

virtual QPointF	zoomCenter () const

virtual qreal	zoomFactorX () const

virtual qreal	zoomFactorY () const

Public Member Functions inherited from KDChart::AbstractArea
	~AbstractArea () override

virtual int	bottomOverlap (bool doNotRecalculate=false) const

virtual int	leftOverlap (bool doNotRecalculate=false) const

void	paintAll (QPainter &painter) override

virtual void	paintIntoRect (QPainter &painter, const QRect &rect)
	Draws the background and frame, then calls paint(). More...

virtual int	rightOverlap (bool doNotRecalculate=false) const

virtual int	topOverlap (bool doNotRecalculate=false) const

Public Member Functions inherited from KDChart::AbstractAreaBase
void	alignToReferencePoint (const RelativePosition &position)

BackgroundAttributes	backgroundAttributes () const

bool	compare (const AbstractAreaBase *other) const

FrameAttributes	frameAttributes () const

void	getFrameLeadings (int &left, int &top, int &right, int &bottom) const

virtual void	paintBackground (QPainter &painter, const QRect &rectangle)

virtual void	paintFrame (QPainter &painter, const QRect &rectangle)

void	setBackgroundAttributes (const BackgroundAttributes &a)

void	setFrameAttributes (const FrameAttributes &a)

Public Member Functions inherited from KDChart::AbstractLayoutItem
	AbstractLayoutItem (Qt::Alignment itemAlignment={})

virtual void	paint (QPainter *)=0

virtual void	paintCtx (PaintContext *context)

QLayout *	parentLayout ()

void	removeFromParentLayout ()

void	setParentLayout (QLayout *lay)

virtual void	setParentWidget (QWidget *widget)

virtual void	sizeHintChanged () const

Protected Member Functions
	AbstractCoordinatePlane (Chart *parent=nullptr)

virtual DataDimensionsList	getDataDimensionsList () const =0

Protected Member Functions inherited from KDChart::AbstractArea
	AbstractArea ()

QRect	areaGeometry () const override

void	positionHasChanged () override

Protected Member Functions inherited from KDChart::AbstractAreaBase
	AbstractAreaBase ()

virtual	~AbstractAreaBase ()

QRect	innerRect () const

Additional Inherited Members
Static Public Member Functions inherited from KDChart::AbstractAreaBase
static void	paintBackgroundAttributes (QPainter &painter, const QRect &rectangle, const KDChart::BackgroundAttributes &attributes)

static void	paintFrameAttributes (QPainter &painter, const QRect &rectangle, const KDChart::FrameAttributes &attributes)

Protected Attributes inherited from KDChart::AbstractLayoutItem
QWidget *	mParent = nullptr

QLayout *	mParentLayout = nullptr

Detailed Description

Base class common for all coordinate planes, CartesianCoordinatePlane, PolarCoordinatePlane, TernaryCoordinatePlane.

Definition at line 32 of file KDChartAbstractCoordinatePlane.h.

Member Enumeration Documentation

◆ AxesCalcMode

enum KDChart::AbstractCoordinatePlane::AxesCalcMode

Enumerator
Linear
Logarithmic

Definition at line 41 of file KDChartAbstractCoordinatePlane.h.

Constructor & Destructor Documentation

◆ AbstractCoordinatePlane()

AbstractCoordinatePlane::AbstractCoordinatePlane ( KDChart::Chart * parent = nullptr )

explicitprotected

Definition at line 34 of file KDChartAbstractCoordinatePlane.cpp.

References d, and parent().

◆ ~AbstractCoordinatePlane()

AbstractCoordinatePlane::~AbstractCoordinatePlane ( )

override

Definition at line 41 of file KDChartAbstractCoordinatePlane.cpp.

References destroyedCoordinatePlane().

Member Function Documentation

◆ addDiagram()

void AbstractCoordinatePlane::addDiagram ( AbstractDiagram * diagram )

virtual

Adds a diagram to this coordinate plane.

Parameters

diagram The diagram to add.

See also: replaceDiagram, takeDiagram

Reimplemented in KDChart::TernaryCoordinatePlane, KDChart::PolarCoordinatePlane, KDChart::LeveyJenningsCoordinatePlane, and KDChart::CartesianCoordinatePlane.

Definition at line 54 of file KDChartAbstractCoordinatePlane.cpp.

References boundariesChanged(), KDChart::AbstractDiagram::boundariesChanged(), d, diagram(), layoutDiagrams(), layoutPlanes(), KDChart::AbstractDiagram::modelDataChanged(), KDChart::AbstractDiagram::modelsChanged(), relayout(), KDChart::AbstractDiagram::setCoordinatePlane(), and update().

Referenced by KDChart::CartesianCoordinatePlane::addDiagram(), KDChart::PolarCoordinatePlane::addDiagram(), KDChart::TernaryCoordinatePlane::addDiagram(), and replaceDiagram().

◆ boundariesChanged

void KDChart::AbstractCoordinatePlane::boundariesChanged ( )

signal

Referenced by addDiagram(), KDChart::CartesianCoordinatePlane::setHorizontalRange(), and KDChart::CartesianCoordinatePlane::setVerticalRange().

◆ destroyedCoordinatePlane

void KDChart::AbstractCoordinatePlane::destroyedCoordinatePlane ( AbstractCoordinatePlane * )

signal

Emitted when this coordinate plane is destroyed.

Referenced by ~AbstractCoordinatePlane(), and KDChart::Chart::insertCoordinatePlane().

◆ diagram()

AbstractDiagram * AbstractCoordinatePlane::diagram ( )

Returns: The first diagram associated with this coordinate plane.

Definition at line 110 of file KDChartAbstractCoordinatePlane.cpp.

References d.

Referenced by addDiagram(), KDChart::CartesianCoordinatePlane::addDiagram(), KDChart::LeveyJenningsCoordinatePlane::addDiagram(), KDChart::PolarCoordinatePlane::addDiagram(), KDChart::TernaryCoordinatePlane::addDiagram(), KDChart::Widget::diagram(), findSharingAxisDiagrams(), KDChart::CartesianCoordinatePlane::getRawDataBoundingRectFromDiagrams(), KDChart::PolarCoordinatePlane::layoutDiagrams(), KDChart::TernaryCoordinatePlane::layoutDiagrams(), replaceDiagram(), KDChart::CartesianCoordinatePlane::setGeometry(), KDChart::PolarCoordinatePlane::setStartPosition(), KDChart::CartesianCoordinatePlane::sharedAxisMasterPlane(), and takeDiagram().

◆ diagrams() [1/2]

AbstractDiagramList AbstractCoordinatePlane::diagrams ( )

Returns: The list of diagrams associated with this coordinate plane.

Definition at line 119 of file KDChartAbstractCoordinatePlane.cpp.

References d.

Referenced by allAxisAnnotations(), KDChart::CartesianCoordinatePlane::getDataDimensionsList(), KDChart::CartesianCoordinatePlane::getRawDataBoundingRectFromDiagrams(), KDChart::PolarCoordinatePlane::layoutDiagrams(), KDChart::TernaryCoordinatePlane::layoutDiagrams(), KDChart::CartesianCoordinatePlane::paint(), KDChart::PolarCoordinatePlane::paint(), KDChart::TernaryCoordinatePlane::paint(), KDChart::CartesianCoordinatePlane::setAxesCalcModes(), and KDChart::CartesianCoordinatePlane::setGeometry().

◆ diagrams() [2/2]

ConstAbstractDiagramList AbstractCoordinatePlane::diagrams ( ) const

Returns: The list of diagrams associated with this coordinate plane.

Definition at line 124 of file KDChartAbstractCoordinatePlane.cpp.

References d.

◆ expandingDirections()

Qt::Orientations KDChart::AbstractCoordinatePlane::expandingDirections ( ) const

override

pure virtual in QLayoutItem

Definition at line 190 of file KDChartAbstractCoordinatePlane.cpp.

◆ geometry()

QRect KDChart::AbstractCoordinatePlane::geometry ( ) const

override

pure virtual in QLayoutItem

Definition at line 227 of file KDChartAbstractCoordinatePlane.cpp.

References d.

Referenced by KDChart::CartesianCoordinatePlane::handleFixedDataCoordinateSpaceRelation(), KDChart::PolarDiagram::paint(), KDChart::RadarDiagram::paint(), KDChart::PolarCoordinatePlane::paint(), and KDChart::CartesianCoordinatePlane::setGeometry().

◆ geometryChanged

void KDChart::AbstractCoordinatePlane::geometryChanged	(	QRect	,
		QRect
	)

signal

Emitted after the geometry of the Coordinate Plane has been changed. and control has returned to the event loop.

Parameters are the old geometry, the new geometry.

Referenced by KDChart::Plotter::connectAttributesModel().

◆ getDataDimensionsList()

virtual DataDimensionsList KDChart::AbstractCoordinatePlane::getDataDimensionsList ( ) const

protectedpure virtual

Implemented in KDChart::TernaryCoordinatePlane, KDChart::PolarCoordinatePlane, and KDChart::CartesianCoordinatePlane.

Referenced by KDChart::AbstractGrid::updateData().

◆ globalGridAttributes()

GridAttributes KDChart::AbstractCoordinatePlane::globalGridAttributes ( ) const

Returns: The grid attributes used by this coordinate plane.

See also: setGlobalGridAttributes; CartesianCoordinatePlane::gridAttributes

Definition at line 142 of file KDChartAbstractCoordinatePlane.cpp.

References d.

Referenced by KDChart::CartesianCoordinatePlane::gridAttributes().

◆ gridDimensionsList()

KDChart::DataDimensionsList KDChart::AbstractCoordinatePlane::gridDimensionsList ( )

Returns the dimensions used for drawing the grid lines.

Returned data is the result of (cached) grid calculations, so - if you need that information for your own tasks - make sure to call again this function after every data modification that has changed the data range, since grid calculation is based upon the data range, thus the grid start/end might have changed if the data was changed.

Note: Returned list will contain different numbers of DataDimension, depending on the kind of coordinate plane used. For CartesianCoordinatePlane two DataDimension are returned: the first representing grid lines in X direction (matching the Abscissa axes) and the second indicating vertical grid lines (or Ordinate axes, resp.).

Returns: The dimensions used for drawing the grid lines.

See also: DataDimension

Definition at line 147 of file KDChartAbstractCoordinatePlane.cpp.

References d.

Referenced by KDChart::CartesianCoordinatePlane::layoutDiagrams(), and KDChart::CartesianAxis::paintCtx().

◆ internal_geometryChanged

void KDChart::AbstractCoordinatePlane::internal_geometryChanged	(	QRect	,
		QRect
	)

signal

Referenced by KDChart::Plotter::connectAttributesModel().

◆ isCornerSpacersEnabled()

bool KDChart::AbstractCoordinatePlane::isCornerSpacersEnabled ( ) const

Returns: Whether this plane should have spacers in the corners formed by the presence of axes.

Definition at line 274 of file KDChartAbstractCoordinatePlane.cpp.

References d.

◆ isEmpty()

bool KDChart::AbstractCoordinatePlane::isEmpty ( ) const

override

pure virtual in QLayoutItem

Definition at line 183 of file KDChartAbstractCoordinatePlane.cpp.

◆ isRubberBandZoomingEnabled()

bool KDChart::AbstractCoordinatePlane::isRubberBandZoomingEnabled ( ) const

Returns: Whether zooming with a rubber band using the mouse is enabled.

Definition at line 260 of file KDChartAbstractCoordinatePlane.cpp.

References d.

◆ isVisiblePoint()

bool KDChart::AbstractCoordinatePlane::isVisiblePoint ( const QPointF & point ) const

Tests, if a point is visible on the coordinate plane.

Note: Before calling this function the point must have been translated into coordinate plane space.

Definition at line 393 of file KDChartAbstractCoordinatePlane.cpp.

References d.

◆ layoutDiagrams()

virtual void KDChart::AbstractCoordinatePlane::layoutDiagrams ( )

pure virtual

Distribute the available space among the diagrams and axes.

Implemented in KDChart::TernaryCoordinatePlane, KDChart::PolarCoordinatePlane, and KDChart::CartesianCoordinatePlane.

Referenced by addDiagram(), replaceDiagram(), and takeDiagram().

◆ layoutPlanes

void KDChart::AbstractCoordinatePlane::layoutPlanes ( )

slot

Calling layoutPlanes() on the plane triggers the global KDChart::Chart::slotLayoutPlanes()

Definition at line 244 of file KDChartAbstractCoordinatePlane.cpp.

Referenced by addDiagram(), KDChart::AbstractCartesianDiagram::layoutPlanes(), KDChart::CartesianAxis::layoutPlanes(), replaceDiagram(), and takeDiagram().

◆ maximumSize()

QSize KDChart::AbstractCoordinatePlane::maximumSize ( ) const

override

pure virtual in QLayoutItem

Definition at line 195 of file KDChartAbstractCoordinatePlane.cpp.

◆ minimumSize()

QSize KDChart::AbstractCoordinatePlane::minimumSize ( ) const

override

pure virtual in QLayoutItem

Definition at line 202 of file KDChartAbstractCoordinatePlane.cpp.

◆ mouseDoubleClickEvent()

void KDChart::AbstractCoordinatePlane::mouseDoubleClickEvent ( QMouseEvent * event )

virtual

Definition at line 313 of file KDChartAbstractCoordinatePlane.cpp.

References d.

◆ mouseMoveEvent()

void KDChart::AbstractCoordinatePlane::mouseMoveEvent ( QMouseEvent * event )

virtual

Definition at line 375 of file KDChartAbstractCoordinatePlane.cpp.

References d.

◆ mousePressEvent()

void KDChart::AbstractCoordinatePlane::mousePressEvent ( QMouseEvent * event )

virtual

Definition at line 279 of file KDChartAbstractCoordinatePlane.cpp.

References KDChart::ZoomParameters::center(), d, KDChart::ZoomParameters::xFactor, and KDChart::ZoomParameters::yFactor.

◆ mouseReleaseEvent()

void KDChart::AbstractCoordinatePlane::mouseReleaseEvent ( QMouseEvent * event )

virtual

Definition at line 325 of file KDChartAbstractCoordinatePlane.cpp.

References d.

◆ needLayoutPlanes

void KDChart::AbstractCoordinatePlane::needLayoutPlanes ( )

signal

Emitted when plane needs to trigger the Chart's layouting of the coord. planes.

Referenced by KDChart::Chart::insertCoordinatePlane().

◆ needRelayout

void KDChart::AbstractCoordinatePlane::needRelayout ( )

signal

Emitted when plane needs to trigger the Chart's layouting.

Referenced by KDChart::Chart::insertCoordinatePlane().

◆ needUpdate

void KDChart::AbstractCoordinatePlane::needUpdate ( )

signal

Emitted when plane needs to update its drawings.

Referenced by KDChart::Chart::insertCoordinatePlane().

◆ parent() [1/2]

KDChart::Chart * KDChart::AbstractCoordinatePlane::parent ( )

Definition at line 177 of file KDChartAbstractCoordinatePlane.cpp.

References d.

Referenced by AbstractCoordinatePlane(), KDChart::LeveyJenningsAxis::paintAsAbscissa(), and KDChart::CartesianAxis::paintCtx().

◆ parent() [2/2]

const KDChart::Chart * KDChart::AbstractCoordinatePlane::parent ( ) const

Definition at line 172 of file KDChartAbstractCoordinatePlane.cpp.

References d.

◆ propertiesChanged

void KDChart::AbstractCoordinatePlane::propertiesChanged ( )

signal

Emitted upon change of a property of the Coordinate Plane or any of its components.

◆ referenceCoordinatePlane()

AbstractCoordinatePlane * KDChart::AbstractCoordinatePlane::referenceCoordinatePlane ( ) const

There are two ways, in which planes can be caused to interact, in where they are put layouting wise: The first is the reference plane. If such a reference plane is set, on a plane, it will use the same cell in the layout as that one. In addition to this, planes can share an axis. In that case they will be laid out in relation to each other as suggested by the position of the axis. If, for example Plane1 and Plane2 share an axis at position Left, that will result in the layout: Axis Plane1 Plane 2, vertically. If Plane1 also happens to be Plane2's reference plane, both planes are drawn over each other. The reference plane concept allows two planes to share the same space even if neither has any axis, and in case there are shared axis, it is used to decided, whether the planes should be painted on top of each other or laid out vertically or horizontally next to each other.

Returns: The reference coordinate plane associated with this one.

Definition at line 162 of file KDChartAbstractCoordinatePlane.cpp.

References d.

◆ relayout

void KDChart::AbstractCoordinatePlane::relayout ( )

slot

Calling relayout() on the plane triggers the global KDChart::Chart::slotRelayout()

Definition at line 238 of file KDChartAbstractCoordinatePlane.cpp.

Referenced by addDiagram(), KDChart::AbstractCartesianDiagram::setCoordinatePlane(), and takeDiagram().

◆ replaceDiagram()

void AbstractCoordinatePlane::replaceDiagram	(	AbstractDiagram *	diagram,
		AbstractDiagram *	oldDiagram = `nullptr`
	)

virtual

Replaces the old diagram, or appends the diagram, it there is none yet.

Parameters

diagram	The diagram to be used instead of the old diagram. This parameter must not be zero, or the method will do nothing.
oldDiagram	The diagram to be removed by the new diagram. This diagram will be deleted automatically. If the parameter is omitted, the very first diagram will be replaced. In case, there was no diagram yet, the new diagram will just be added.

Note: If you want to re-use the old diagram, call takeDiagram and addDiagram, instead of using replaceDiagram.

See also: addDiagram, takeDiagram

Definition at line 74 of file KDChartAbstractCoordinatePlane.cpp.

References addDiagram(), d, diagram(), layoutDiagrams(), layoutPlanes(), takeDiagram(), and update().

Referenced by KDChart::Widget::setType().

◆ setCornerSpacersEnabled()

void KDChart::AbstractCoordinatePlane::setCornerSpacersEnabled ( bool enable )

Enables or disables the use of spacers in the plane corners.

Definition at line 265 of file KDChartAbstractCoordinatePlane.cpp.

References d.

◆ setGeometry()

void KDChart::AbstractCoordinatePlane::setGeometry ( const QRect & r )

override

pure virtual in QLayoutItem

Note: Do not call this function directly, unless you know exactly what you are doing. Geometry management is done by KD Chart's internal layouting measures.

Definition at line 214 of file KDChartAbstractCoordinatePlane.cpp.

References d.

Referenced by KDChart::CartesianCoordinatePlane::setGeometry().

◆ setGlobalGridAttributes()

void KDChart::AbstractCoordinatePlane::setGlobalGridAttributes ( const GridAttributes & a )

Set the grid attributes to be used by this coordinate plane. To disable grid painting, for example, your code should like this:

GridAttributes ga = plane->globalGridAttributes();
ga.setGlobalGridVisible( false );
plane->setGlobalGridAttributes( ga );

See also: globalGridAttributes; CartesianCoordinatePlane::setGridAttributes

Definition at line 136 of file KDChartAbstractCoordinatePlane.cpp.

References d.

◆ setGridNeedsRecalculate

void KDChart::AbstractCoordinatePlane::setGridNeedsRecalculate ( )

slot

Used by the chart to clear the cached grid data.

Definition at line 152 of file KDChartAbstractCoordinatePlane.cpp.

References d.

Referenced by KDChart::CartesianCoordinatePlane::setAxesCalcModeY().

◆ setParent()

void KDChart::AbstractCoordinatePlane::setParent ( KDChart::Chart * parent )

Called internally by KDChart::Chart

Definition at line 167 of file KDChartAbstractCoordinatePlane.cpp.

References d.

Referenced by KDChart::Chart::insertCoordinatePlane(), and KDChart::Chart::takeCoordinatePlane().

◆ setReferenceCoordinatePlane()

void KDChart::AbstractCoordinatePlane::setReferenceCoordinatePlane ( AbstractCoordinatePlane * plane )

Set another coordinate plane to be used as the reference plane for this one.

Parameters

plane The coordinate plane to be used the reference plane for this one.

See also: referenceCoordinatePlane

Definition at line 157 of file KDChartAbstractCoordinatePlane.cpp.

References d.

◆ setRubberBandZoomingEnabled()

void KDChart::AbstractCoordinatePlane::setRubberBandZoomingEnabled ( bool enable )

Enables or disables zooming with a rubber band using the mouse.

Definition at line 250 of file KDChartAbstractCoordinatePlane.cpp.

References d.

◆ setZoomCenter()

virtual void KDChart::AbstractCoordinatePlane::setZoomCenter ( const QPointF & center )

inlinevirtual

Set the point (in value coordinates) to be used as the center point in zoom operations.

Parameters

center The point to use.

Reimplemented in KDChart::PolarCoordinatePlane, and KDChart::CartesianCoordinatePlane.

Definition at line 190 of file KDChartAbstractCoordinatePlane.h.

◆ setZoomFactors()

virtual void KDChart::AbstractCoordinatePlane::setZoomFactors	(	qreal	factorX,
		qreal	factorY
	)

inlinevirtual

Sets both zoom factors in one go.

See also: setZoomFactorX,setZoomFactorY

Reimplemented in KDChart::PolarCoordinatePlane, and KDChart::CartesianCoordinatePlane.

Definition at line 150 of file KDChartAbstractCoordinatePlane.h.

◆ setZoomFactorX()

virtual void KDChart::AbstractCoordinatePlane::setZoomFactorX ( qreal factor )

inlinevirtual

Sets the zoom factor in horizontal direction, that is applied to all coordinate transformations.

Parameters

factor The new zoom factor

Reimplemented in KDChart::PolarCoordinatePlane, and KDChart::CartesianCoordinatePlane.

Definition at line 161 of file KDChartAbstractCoordinatePlane.h.

◆ setZoomFactorY()

virtual void KDChart::AbstractCoordinatePlane::setZoomFactorY ( qreal factor )

inlinevirtual

Sets the zoom factor in vertical direction, that is applied to all coordinate transformations.

Parameters

factor The new zoom factor

Reimplemented in KDChart::PolarCoordinatePlane, and KDChart::CartesianCoordinatePlane.

Definition at line 171 of file KDChartAbstractCoordinatePlane.h.

◆ sharedAxisMasterPlane()

AbstractCoordinatePlane * KDChart::AbstractCoordinatePlane::sharedAxisMasterPlane ( QPainter * p = nullptr )

virtual

Reimplemented in KDChart::CartesianCoordinatePlane.

Definition at line 398 of file KDChartAbstractCoordinatePlane.cpp.

Referenced by KDChart::LeveyJenningsGrid::drawGrid(), KDChart::BarDiagram::paint(), KDChart::LeveyJenningsDiagram::paint(), KDChart::LineDiagram::paint(), and KDChart::Plotter::paint().

◆ sizeHint()

QSize KDChart::AbstractCoordinatePlane::sizeHint ( ) const

override

pure virtual in QLayoutItem

Definition at line 207 of file KDChartAbstractCoordinatePlane.cpp.

Referenced by KDChart::CartesianCoordinatePlane::sizeHint().

◆ takeDiagram()

void AbstractCoordinatePlane::takeDiagram ( AbstractDiagram * diagram )

virtual

Removes the diagram from the plane, without deleting it.

The plane no longer owns the diagram, so it is the caller's responsibility to delete the diagram.

See also: addDiagram, replaceDiagram

Definition at line 95 of file KDChartAbstractCoordinatePlane.cpp.

References d, diagram(), layoutDiagrams(), layoutPlanes(), KDChart::AbstractDiagram::modelDataChanged(), KDChart::AbstractDiagram::modelsChanged(), relayout(), KDChart::AbstractDiagram::setCoordinatePlane(), and update().

Referenced by replaceDiagram().

◆ translate()

virtual const QPointF KDChart::AbstractCoordinatePlane::translate ( const QPointF & diagramPoint ) const

pure virtual

Translate the given point in value space coordinates to a position in pixel space.

Parameters

diagramPoint The point in value coordinates.

Returns: The translated point.

Implemented in KDChart::TernaryCoordinatePlane, KDChart::PolarCoordinatePlane, and KDChart::CartesianCoordinatePlane.

Referenced by KDChart::LeveyJenningsDiagram::drawDataPointSymbol(), KDChart::LeveyJenningsDiagram::drawFluidicsPackChangedSymbol(), KDChart::LeveyJenningsDiagram::drawLotChangeSymbol(), KDChart::LeveyJenningsDiagram::drawSensorChangedSymbol(), KDChart::LeveyJenningsDiagram::paint(), KDChart::PolarDiagram::paint(), and scaleToRealPosition().

◆ update

void KDChart::AbstractCoordinatePlane::update ( )

slot

Calling update() on the plane triggers the global KDChart::Chart::update()

Definition at line 232 of file KDChartAbstractCoordinatePlane.cpp.

Referenced by addDiagram(), KDChart::PolarCoordinatePlane::adjustZoomAndRepaint(), KDChart::CartesianCoordinatePlane::layoutDiagrams(), KDChart::PolarCoordinatePlane::layoutDiagrams(), replaceDiagram(), KDChart::CartesianCoordinatePlane::resetGridAttributes(), KDChart::CartesianCoordinatePlane::setGridAttributes(), and takeDiagram().

◆ viewportCoordinateSystemChanged

void KDChart::AbstractCoordinatePlane::viewportCoordinateSystemChanged ( )

signal

Emitted upon change of the view coordinate system

Referenced by KDChart::CartesianCoordinatePlane::setAxesCalcModes(), KDChart::CartesianCoordinatePlane::setAxesCalcModeX(), KDChart::CartesianCoordinatePlane::setAxesCalcModeY(), and KDChart::AbstractCartesianDiagram::setCoordinatePlane().

◆ zoomCenter()

virtual QPointF KDChart::AbstractCoordinatePlane::zoomCenter ( ) const

inlinevirtual

Returns: The center point (in value coordinates) of the coordinate plane, that is used for zoom operations.

Reimplemented in KDChart::PolarCoordinatePlane, and KDChart::CartesianCoordinatePlane.

Definition at line 180 of file KDChartAbstractCoordinatePlane.h.

◆ zoomFactorX()

virtual qreal KDChart::AbstractCoordinatePlane::zoomFactorX ( ) const

inlinevirtual

Returns: The zoom factor in horizontal direction, that is applied to all coordinate transformations.

Reimplemented in KDChart::PolarCoordinatePlane, and KDChart::CartesianCoordinatePlane.

Definition at line 132 of file KDChartAbstractCoordinatePlane.h.

Referenced by KDChart::PolarDiagram::paint(), KDChart::RadarDiagram::paint(), and KDChart::CartesianAxis::paint().

◆ zoomFactorY()

virtual qreal KDChart::AbstractCoordinatePlane::zoomFactorY ( ) const

inlinevirtual

Returns: The zoom factor in vertical direction, that is applied to all coordinate transformations.

Reimplemented in KDChart::PolarCoordinatePlane, and KDChart::CartesianCoordinatePlane.

Definition at line 141 of file KDChartAbstractCoordinatePlane.h.

Referenced by KDChart::PolarDiagram::paint(), KDChart::RadarDiagram::paint(), and KDChart::CartesianAxis::paint().

The documentation for this class was generated from the following files:

Public Types

Public Slots

Signals

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ AxesCalcMode

Constructor & Destructor Documentation

◆ AbstractCoordinatePlane()

◆ ~AbstractCoordinatePlane()

Member Function Documentation

◆ addDiagram()

◆ boundariesChanged

◆ destroyedCoordinatePlane

◆ diagram()

◆ diagrams() [1/2]

◆ diagrams() [2/2]

◆ expandingDirections()

◆ geometry()

◆ geometryChanged

◆ getDataDimensionsList()

◆ globalGridAttributes()

◆ gridDimensionsList()

◆ internal_geometryChanged

◆ isCornerSpacersEnabled()

◆ isEmpty()

◆ isRubberBandZoomingEnabled()

◆ isVisiblePoint()

◆ layoutDiagrams()

◆ layoutPlanes

◆ maximumSize()

◆ minimumSize()

◆ mouseDoubleClickEvent()

◆ mouseMoveEvent()

◆ mousePressEvent()

◆ mouseReleaseEvent()

◆ needLayoutPlanes

◆ needRelayout

◆ needUpdate

◆ parent() [1/2]

◆ parent() [2/2]

◆ propertiesChanged

◆ referenceCoordinatePlane()

◆ relayout

◆ replaceDiagram()

◆ setCornerSpacersEnabled()

◆ setGeometry()

◆ setGlobalGridAttributes()

◆ setGridNeedsRecalculate

◆ setParent()

◆ setReferenceCoordinatePlane()

◆ setRubberBandZoomingEnabled()

◆ setZoomCenter()

◆ setZoomFactors()

◆ setZoomFactorX()

◆ setZoomFactorY()

◆ sharedAxisMasterPlane()

◆ sizeHint()

◆ takeDiagram()

◆ translate()

◆ update

◆ viewportCoordinateSystemChanged

◆ zoomCenter()

◆ zoomFactorX()

◆ zoomFactorY()
