Levey Jennings coordinate plane This is actually nothing real more than a plain cartesian coordinate plane. The difference is, that only Levey Jennings Diagrams can be added to it. More...

#include <KDChartLeveyJenningsCoordinatePlane.h>

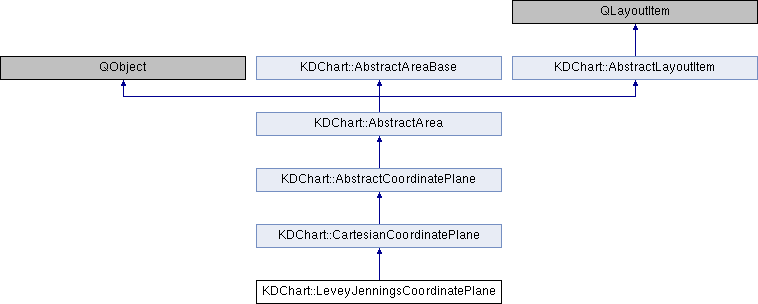

Inheritance diagram for KDChart::LeveyJenningsCoordinatePlane:

Public Member Functions
	LeveyJenningsCoordinatePlane (Chart *parent=nullptr)

	~LeveyJenningsCoordinatePlane () override

void	addDiagram (AbstractDiagram *diagram) override

LeveyJenningsGridAttributes	gridAttributes () const

void	setGridAttributes (const LeveyJenningsGridAttributes &attr)

Public Member Functions inherited from KDChart::CartesianCoordinatePlane
	CartesianCoordinatePlane (Chart *parent=nullptr)

	~CartesianCoordinatePlane () override

bool	autoAdjustGridToZoom () const

unsigned int	autoAdjustHorizontalRangeToData () const
	Returns the maximal allowed percent of the horizontal space covered by the coordinate plane that may be empty. More...

unsigned int	autoAdjustVerticalRangeToData () const
	Returns the maximal allowed percent of the vertical space covered by the coordinate plane that may be empty. More...

AxesCalcMode	axesCalcModeX () const

AxesCalcMode	axesCalcModeY () const

QRectF	diagramArea () const

bool	doesIsometricScaling () const

Qt::Orientations	expandingDirections () const override

const GridAttributes	gridAttributes (Qt::Orientation orientation) const

bool	hasFixedDataCoordinateSpaceRelation () const

bool	hasOwnGridAttributes (Qt::Orientation orientation) const

QPair< qreal, qreal >	horizontalRange () const

bool	isHorizontalRangeReversed () const

bool	isVerticalRangeReversed () const

QRectF	logicalArea () const

void	paint (QPainter *) override

void	resetGridAttributes (Qt::Orientation orientation)

void	setAutoAdjustGridToZoom (bool autoAdjust)

void	setAutoAdjustHorizontalRangeToData (unsigned int percentEmpty=67)
	Automatically adjust horizontal range settings to the ranges covered by the model's values, when ever the data have changed, and then emit horizontalRangeAutomaticallyAdjusted. More...

void	setAutoAdjustVerticalRangeToData (unsigned int percentEmpty=67)
	Automatically adjust vertical range settings to the ranges covered by the model's values, when ever the data have changed, and then emit verticalRangeAutomaticallyAdjusted. More...

void	setAxesCalcModes (AxesCalcMode mode)

void	setAxesCalcModeX (AxesCalcMode mode)

void	setAxesCalcModeY (AxesCalcMode mode)

void	setFixedDataCoordinateSpaceRelation (bool fixed)

void	setGeometry (const QRect &r) override

void	setGridAttributes (Qt::Orientation orientation, const GridAttributes &)

void	setHorizontalRange (const QPair< qreal, qreal > &range)
	Set the boundaries of the visible value space displayed in horizontal direction. More...

void	setHorizontalRangeReversed (bool reverse)

void	setIsometricScaling (bool onOff)

void	setVerticalRange (const QPair< qreal, qreal > &range)
	Set the boundaries of the visible value space displayed in vertical direction. More...

void	setVerticalRangeReversed (bool reverse)

void	setXAxisStartAtZero (bool fixedStart)

void	setZoomCenter (const QPointF &center) override

void	setZoomFactors (qreal factorX, qreal factorY) override

void	setZoomFactorX (qreal factor) override

void	setZoomFactorY (qreal factor) override

AbstractCoordinatePlane *	sharedAxisMasterPlane (QPainter *p=nullptr) override

const QPointF	translate (const QPointF &diagramPoint) const override

const QPointF	translateBack (const QPointF &screenPoint) const

QPair< qreal, qreal >	verticalRange () const

QRectF	visibleDataRange () const

QRectF	visibleDiagramArea () const

bool	xAxisStartAtZero () const

QPointF	zoomCenter () const override

qreal	zoomFactorX () const override

qreal	zoomFactorY () const override

Public Member Functions inherited from KDChart::AbstractCoordinatePlane
	~AbstractCoordinatePlane () override

AbstractDiagram *	diagram ()

AbstractDiagramList	diagrams ()

ConstAbstractDiagramList	diagrams () const

Qt::Orientations	expandingDirections () const override

QRect	geometry () const override

GridAttributes	globalGridAttributes () const

DataDimensionsList	gridDimensionsList ()

bool	isCornerSpacersEnabled () const

bool	isEmpty () const override

bool	isRubberBandZoomingEnabled () const

bool	isVisiblePoint (const QPointF &point) const

QSize	maximumSize () const override

QSize	minimumSize () const override

virtual void	mouseDoubleClickEvent (QMouseEvent *event)

virtual void	mouseMoveEvent (QMouseEvent *event)

virtual void	mousePressEvent (QMouseEvent *event)

virtual void	mouseReleaseEvent (QMouseEvent *event)

Chart *	parent ()

const Chart *	parent () const

AbstractCoordinatePlane *	referenceCoordinatePlane () const

virtual void	replaceDiagram (AbstractDiagram diagram, AbstractDiagram oldDiagram=nullptr)

void	setCornerSpacersEnabled (bool enable)

void	setGeometry (const QRect &r) override

void	setGlobalGridAttributes (const GridAttributes &)

void	setParent (Chart *parent)

void	setReferenceCoordinatePlane (AbstractCoordinatePlane *plane)

void	setRubberBandZoomingEnabled (bool enable)

QSize	sizeHint () const override

virtual void	takeDiagram (AbstractDiagram *diagram)

Public Member Functions inherited from KDChart::AbstractArea
	~AbstractArea () override

virtual int	bottomOverlap (bool doNotRecalculate=false) const

virtual int	leftOverlap (bool doNotRecalculate=false) const

void	paintAll (QPainter &painter) override

virtual void	paintIntoRect (QPainter &painter, const QRect &rect)
	Draws the background and frame, then calls paint(). More...

virtual int	rightOverlap (bool doNotRecalculate=false) const

virtual int	topOverlap (bool doNotRecalculate=false) const

Public Member Functions inherited from KDChart::AbstractAreaBase
void	alignToReferencePoint (const RelativePosition &position)

BackgroundAttributes	backgroundAttributes () const

bool	compare (const AbstractAreaBase *other) const

FrameAttributes	frameAttributes () const

void	getFrameLeadings (int &left, int &top, int &right, int &bottom) const

virtual void	paintBackground (QPainter &painter, const QRect &rectangle)

virtual void	paintFrame (QPainter &painter, const QRect &rectangle)

void	setBackgroundAttributes (const BackgroundAttributes &a)

void	setFrameAttributes (const FrameAttributes &a)

Public Member Functions inherited from KDChart::AbstractLayoutItem
	AbstractLayoutItem (Qt::Alignment itemAlignment={})

virtual void	paintCtx (PaintContext *context)

QLayout *	parentLayout ()

void	removeFromParentLayout ()

void	setParentLayout (QLayout *lay)

virtual void	setParentWidget (QWidget *widget)

virtual void	sizeHintChanged () const

Protected Member Functions
const QPointF	translateBack (const QPointF &screenPoint) const

Protected Member Functions inherited from KDChart::CartesianCoordinatePlane
QRectF	adjustedToMaxEmptyInnerPercentage (const QRectF &r, unsigned int percentX, unsigned int percentY) const

virtual QRectF	calculateRawDataBoundingRect () const

bool	doneSetZoomCenter (const QPointF &center)

bool	doneSetZoomFactorX (qreal factor)

bool	doneSetZoomFactorY (qreal factor)

virtual QRectF	drawingArea () const

DataDimensionsList	getDataDimensionsList () const override

QRectF	getRawDataBoundingRectFromDiagrams () const

void	handleFixedDataCoordinateSpaceRelation (const QRectF &geometry)

bool	hasHeightForWidth () const override

int	heightForWidth (int w) const override

void	layoutDiagrams () override

void	paintEvent (QPaintEvent *)

QSize	sizeHint () const override

Protected Member Functions inherited from KDChart::AbstractCoordinatePlane
	AbstractCoordinatePlane (Chart *parent=nullptr)

Protected Member Functions inherited from KDChart::AbstractArea
	AbstractArea ()

QRect	areaGeometry () const override

void	positionHasChanged () override

Protected Member Functions inherited from KDChart::AbstractAreaBase
	AbstractAreaBase ()

virtual	~AbstractAreaBase ()

QRect	innerRect () const

Additional Inherited Members
Public Types inherited from KDChart::AbstractCoordinatePlane
enum	AxesCalcMode { Linear , Logarithmic }

Public Slots inherited from KDChart::CartesianCoordinatePlane
void	adjustHorizontalRangeToData ()

void	adjustRangesToData ()
	Adjust both, horizontal and vertical range settings to the ranges covered by the model's data values. More...

void	adjustVerticalRangeToData ()

Public Slots inherited from KDChart::AbstractCoordinatePlane
void	layoutPlanes ()

void	relayout ()

void	setGridNeedsRecalculate ()

void	update ()

Signals inherited from KDChart::AbstractCoordinatePlane
void	boundariesChanged ()

void	destroyedCoordinatePlane (AbstractCoordinatePlane *)

void	geometryChanged (QRect, QRect)

void	internal_geometryChanged (QRect, QRect)

void	needLayoutPlanes ()

void	needRelayout ()

void	needUpdate ()

void	propertiesChanged ()

void	viewportCoordinateSystemChanged ()

Signals inherited from KDChart::AbstractArea
void	positionChanged (AbstractArea *)

Static Public Member Functions inherited from KDChart::AbstractAreaBase
static void	paintBackgroundAttributes (QPainter &painter, const QRect &rectangle, const KDChart::BackgroundAttributes &attributes)

static void	paintFrameAttributes (QPainter &painter, const QRect &rectangle, const KDChart::FrameAttributes &attributes)

Protected Slots inherited from KDChart::CartesianCoordinatePlane
void	slotLayoutChanged (AbstractDiagram *)

Protected Attributes inherited from KDChart::AbstractLayoutItem
QWidget *	mParent = nullptr

QLayout *	mParentLayout = nullptr

Detailed Description

Levey Jennings coordinate plane This is actually nothing real more than a plain cartesian coordinate plane. The difference is, that only Levey Jennings Diagrams can be added to it.

Definition at line 28 of file KDChartLeveyJenningsCoordinatePlane.h.
