KDChart::AbstractLayoutItem Class Reference

#include <KDChartLayoutItems.h>

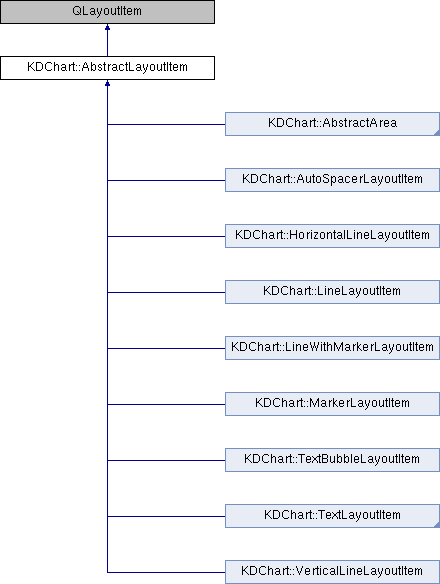

Inheritance diagram for KDChart::AbstractLayoutItem:

Public Member Functions
	AbstractLayoutItem (Qt::Alignment itemAlignment={})
virtual void	paint (QPainter *)=0
virtual void	paintAll (QPainter &painter)
virtual void	paintCtx (PaintContext *context)
QLayout *	parentLayout ()
void	removeFromParentLayout ()
void	setParentLayout (QLayout *lay)
virtual void	setParentWidget (QWidget *widget)
virtual void	sizeHintChanged () const

Protected Attributes
QWidget *	mParent = nullptr
QLayout *	mParentLayout = nullptr

Detailed Description

Base class for all layout items of KD Chart

Definition at line 39 of file KDChartLayoutItems.h.

Constructor & Destructor Documentation

AbstractLayoutItem()

KDChart::AbstractLayoutItem::AbstractLayoutItem ( Qt::Alignment  itemAlignment = {} )

inline

Definition at line 42 of file KDChartLayoutItems.h.

Member Function Documentation

paint()

virtual void KDChart::AbstractLayoutItem::paint ( QPainter *  )

pure virtual

Implemented in KDChart::TextBubbleLayoutItem, KDChart::TernaryCoordinatePlane, KDChart::TernaryAxis, KDChart::PolarCoordinatePlane, KDChart::AutoSpacerLayoutItem, KDChart::VerticalLineLayoutItem, KDChart::HorizontalLineLayoutItem, KDChart::LineWithMarkerLayoutItem, KDChart::LineLayoutItem, KDChart::MarkerLayoutItem, KDChart::TextLayoutItem, KDChart::CartesianCoordinatePlane, and KDChart::CartesianAxis.

Referenced by KDChart::AbstractArea::paintAll().

paintAll()

void KDChart::AbstractLayoutItem::paintAll ( QPainter &  painter )

virtual

Default impl: just call paint.

Derived classes like KDChart::AbstractArea are providing additional action here.

Reimplemented in KDChart::TextArea, KDChart::AbstractArea, and KDChart::TernaryAxis.

Definition at line 51 of file KDChartLayoutItems.cpp.

paintCtx()

void KDChart::AbstractLayoutItem::paintCtx ( PaintContext *  context )

virtual

Default impl: Paint the complete item using its layouted position and size.

Reimplemented in KDChart::TernaryAxis, KDChart::LeveyJenningsAxis, and KDChart::CartesianAxis.

Definition at line 59 of file KDChartLayoutItems.cpp.

References KDChart::PaintContext::painter().

parentLayout()

QLayout* KDChart::AbstractLayoutItem::parentLayout ( )

inline

Definition at line 65 of file KDChartLayoutItems.h.

removeFromParentLayout()

void KDChart::AbstractLayoutItem::removeFromParentLayout ( )

inline

Definition at line 69 of file KDChartLayoutItems.h.

Referenced by KDChart::Chart::takeCoordinatePlane(), and KDChart::Chart::takeHeaderFooter().

setParentLayout()

void KDChart::AbstractLayoutItem::setParentLayout ( QLayout *  lay )

inline

Definition at line 61 of file KDChartLayoutItems.h.

Referenced by KDChart::Chart::addHeaderFooter(), and KDChart::Chart::takeHeaderFooter().

setParentWidget()

void KDChart::AbstractLayoutItem::setParentWidget ( QWidget *  widget )

virtual

Inform the item about its widget: This enables the item, to trigger that widget's update, whenever the size of the item's contents has changed.

Thus, you need to call setParentWidget on every item, that has a non-fixed size.

Definition at line 46 of file KDChartLayoutItems.cpp.

References mParent.

Referenced by KDChart::HeaderFooter::setParent(), and KDChart::AbstractCartesianDiagram::takeAxis().

sizeHintChanged()

void KDChart::AbstractLayoutItem::sizeHintChanged ( ) const

virtual

Report changed size hint: ask the parent widget to recalculate the layout.

Definition at line 68 of file KDChartLayoutItems.cpp.

Member Data Documentation

mParent

QWidget* KDChart::AbstractLayoutItem::mParent = nullptr

protected

Definition at line 80 of file KDChartLayoutItems.h.

Referenced by setParentWidget().

mParentLayout

QLayout* KDChart::AbstractLayoutItem::mParentLayout = nullptr

protected

Definition at line 81 of file KDChartLayoutItems.h.

---

The documentation for this class was generated from the following files:

• KDChartLayoutItems.h
• KDChartLayoutItems.cpp
