An area in the chart with a background, a frame, etc. More...

#include <KDChartAbstractArea.h>

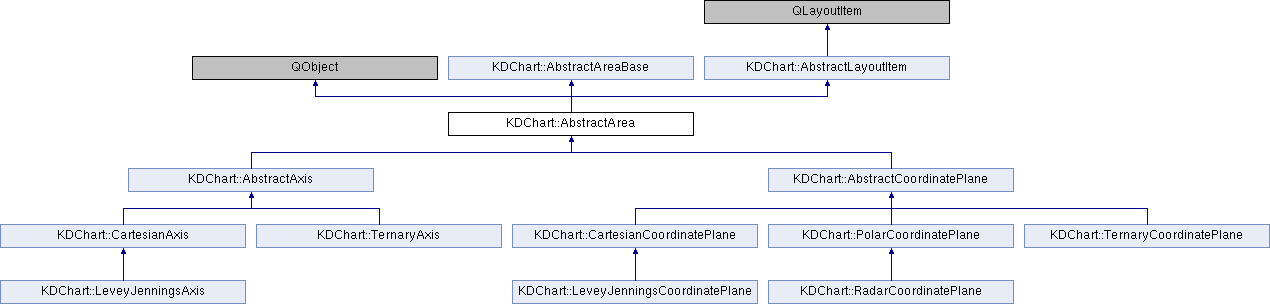

Inheritance diagram for KDChart::AbstractArea:

Signals
void	positionChanged (AbstractArea *)

Public Member Functions
	~AbstractArea () override

virtual int	bottomOverlap (bool doNotRecalculate=false) const

virtual int	leftOverlap (bool doNotRecalculate=false) const

void	paintAll (QPainter &painter) override

virtual void	paintIntoRect (QPainter &painter, const QRect &rect)
	Draws the background and frame, then calls paint(). More...

virtual int	rightOverlap (bool doNotRecalculate=false) const

virtual int	topOverlap (bool doNotRecalculate=false) const

Public Member Functions inherited from KDChart::AbstractAreaBase
void	alignToReferencePoint (const RelativePosition &position)

BackgroundAttributes	backgroundAttributes () const

bool	compare (const AbstractAreaBase *other) const

FrameAttributes	frameAttributes () const

void	getFrameLeadings (int &left, int &top, int &right, int &bottom) const

virtual void	paintBackground (QPainter &painter, const QRect &rectangle)

virtual void	paintFrame (QPainter &painter, const QRect &rectangle)

void	setBackgroundAttributes (const BackgroundAttributes &a)

void	setFrameAttributes (const FrameAttributes &a)

Public Member Functions inherited from KDChart::AbstractLayoutItem
	AbstractLayoutItem (Qt::Alignment itemAlignment={})

virtual void	paint (QPainter *)=0

virtual void	paintCtx (PaintContext *context)

QLayout *	parentLayout ()

void	removeFromParentLayout ()

void	setParentLayout (QLayout *lay)

virtual void	setParentWidget (QWidget *widget)

virtual void	sizeHintChanged () const

Protected Member Functions
	AbstractArea ()

QRect	areaGeometry () const override

void	positionHasChanged () override

Protected Member Functions inherited from KDChart::AbstractAreaBase
	AbstractAreaBase ()

virtual	~AbstractAreaBase ()

QRect	innerRect () const

Additional Inherited Members
Static Public Member Functions inherited from KDChart::AbstractAreaBase
static void	paintBackgroundAttributes (QPainter &painter, const QRect &rectangle, const KDChart::BackgroundAttributes &attributes)

static void	paintFrameAttributes (QPainter &painter, const QRect &rectangle, const KDChart::FrameAttributes &attributes)

Protected Attributes inherited from KDChart::AbstractLayoutItem
QWidget *	mParent = nullptr

QLayout *	mParentLayout = nullptr

Detailed Description

An area in the chart with a background, a frame, etc.

AbstractArea is the base class for all non-widget chart elements that have a set of background attributes and frame attributes, such as coordinate planes or axes.

Note: This class inherits from AbstractAreaBase, AbstractLayoutItem, QObject. The reason for this triple inheritance is that neither AbstractAreaBase nor AbstractLayoutItem are QObject.

Definition at line 34 of file KDChartAbstractArea.h.

Constructor & Destructor Documentation

◆ ~AbstractArea()

AbstractArea::~AbstractArea ( )

override

Definition at line 44 of file KDChartAbstractArea.cpp.

◆ AbstractArea()

AbstractArea::AbstractArea ( )

protected

Definition at line 36 of file KDChartAbstractArea.cpp.

Member Function Documentation

◆ areaGeometry()

QRect AbstractArea::areaGeometry ( ) const

overrideprotectedvirtual

Implements KDChart::AbstractAreaBase.

Definition at line 133 of file KDChartAbstractArea.cpp.

Referenced by KDChart::CartesianCoordinatePlane::drawingArea(), KDChart::PolarCoordinatePlane::layoutDiagrams(), KDChart::TernaryCoordinatePlane::layoutDiagrams(), KDChart::CartesianAxis::paint(), KDChart::TernaryCoordinatePlane::paint(), paintAll(), and KDChart::CartesianAxis::paintCtx().

◆ bottomOverlap()

int AbstractArea::bottomOverlap ( bool doNotRecalculate = false ) const

virtual

This is called at layout time by KDChart:AutoSpacerLayoutItem::sizeHint().

The method triggers AbstractArea::sizeHint() to find out the amount of overlap at the bottom edge of the area.

Note: The default implementation is not using any caching, it might make sense to implement a more sophisticated solution for derived classes that have complex work to do in sizeHint(). All we have here is a primitive flag to be set by the caller if it is sure that no sizeHint() needs to be called.

Definition at line 81 of file KDChartAbstractArea.cpp.

References d.

◆ leftOverlap()

int AbstractArea::leftOverlap ( bool doNotRecalculate = false ) const

virtual

This is called at layout time by KDChart::AutoSpacerLayoutItem::sizeHint().

The method triggers AbstractArea::sizeHint() to find out the amount of overlap at the left edge of the area.

Note: The default implementation is not using any caching, it might make sense to implement a more sophisticated solution for derived classes that have complex work to do in sizeHint(). All we have here is a primitive flag to be set by the caller if it is sure that no sizeHint() needs to be called.

Definition at line 57 of file KDChartAbstractArea.cpp.

References d.

◆ paintAll()

void AbstractArea::paintAll ( QPainter & painter )

overridevirtual

Call paintAll, if you want the background and the frame to be drawn before the normal paint() is invoked automatically.

Reimplemented from KDChart::AbstractLayoutItem.

Reimplemented in KDChart::TernaryAxis.

Definition at line 102 of file KDChartAbstractArea.cpp.

References areaGeometry(), d, KDChart::AbstractAreaBase::innerRect(), KDChart::AbstractLayoutItem::paint(), KDChart::AbstractAreaBase::paintBackground(), and KDChart::AbstractAreaBase::paintFrame().

Referenced by paintIntoRect().

◆ paintIntoRect()

void AbstractArea::paintIntoRect	(	QPainter &	painter,
		const QRect &	rect
	)

virtual

Draws the background and frame, then calls paint().

In most cases there is no need to overwrite this method in a derived class, but you would overwrite AbstractLayoutItem::paint() instead.

Definition at line 90 of file KDChartAbstractArea.cpp.

References paintAll().

◆ positionChanged

void KDChart::AbstractArea::positionChanged ( AbstractArea * )

signal

Referenced by positionHasChanged().

◆ positionHasChanged()

void AbstractArea::positionHasChanged ( )

overrideprotectedvirtual

Reimplemented from KDChart::AbstractAreaBase.

Definition at line 138 of file KDChartAbstractArea.cpp.

References positionChanged().

◆ rightOverlap()

int AbstractArea::rightOverlap ( bool doNotRecalculate = false ) const

virtual

This is called at layout time by KDChart::AutoSpacerLayoutItem::sizeHint().

The method triggers AbstractArea::sizeHint() to find out the amount of overlap at the right edge of the area.

Note: The default implementation is not using any caching, it might make sense to implement a more sophisticated solution for derived classes that have complex work to do in sizeHint(). All we have here is a primitive flag to be set by the caller if it is sure that no sizeHint() needs to be called.

Definition at line 65 of file KDChartAbstractArea.cpp.

References d.

◆ topOverlap()

int AbstractArea::topOverlap ( bool doNotRecalculate = false ) const

virtual

This is called at layout time by KDChart::AutoSpacerLayoutItem::sizeHint().

The method triggers AbstractArea::sizeHint() to find out the amount of overlap at the top edge of the area.

Note: The default implementation is not using any caching, it might make sense to implement a more sophisticated solution for derived classes that have complex work to do in sizeHint(). All we have here is a primitive flag to be set by the caller if it is sure that no sizeHint() needs to be called.

Definition at line 73 of file KDChartAbstractArea.cpp.

References d.

The documentation for this class was generated from the following files:
