KDChart::TextArea Class Reference

A text area in the chart with a background, a frame, etc. More...

#include <KDChartTextArea.h>

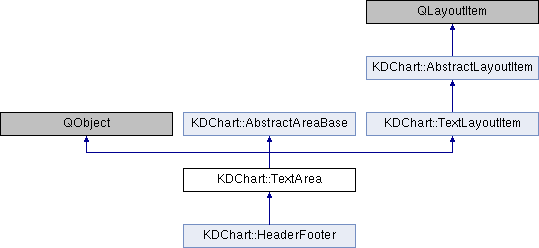

Inheritance diagram for KDChart::TextArea:
KDChart::AbstractAreaBase KDChart::TextLayoutItem KDChart::AbstractLayoutItem KDChart::HeaderFooter

Signals

void positionChanged (TextArea *)


Public Member Functions

 ~TextArea () override

void paintAll (QPainter &painter) override

virtual void paintIntoRect (QPainter &painter, const QRect &rect)
 Draws the background and frame, then calls paint(). More...

- Public Member Functions inherited from KDChart::AbstractAreaBase
void alignToReferencePoint (const RelativePosition &position)

BackgroundAttributes backgroundAttributes () const

bool compare (const AbstractAreaBase *other) const

FrameAttributes frameAttributes () const

void getFrameLeadings (int &left, int &top, int &right, int &bottom) const

virtual void paintBackground (QPainter &painter, const QRect &rectangle)

virtual void paintFrame (QPainter &painter, const QRect &rectangle)

void setBackgroundAttributes (const BackgroundAttributes &a)

void setFrameAttributes (const FrameAttributes &a)

- Public Member Functions inherited from KDChart::TextLayoutItem
 TextLayoutItem ()

 TextLayoutItem (const QString &text, const TextAttributes &attributes, const QObject *autoReferenceArea, KDChartEnums::MeasureOrientation autoReferenceOrientation, Qt::Alignment alignment={})

const QObject * autoReferenceArea () const

QPolygon boundingPolygon () const

Qt::Orientations expandingDirections () const override

QRect geometry () const override

virtual bool intersects (const TextLayoutItem &other, const QPoint &myPos, const QPoint &otherPos) const

virtual bool intersects (const TextLayoutItem &other, const QPointF &myPos, const QPointF &otherPos) const

bool isEmpty () const override

virtual int marginWidth () const

QSize maximumSize () const override

QSize minimumSize () const override

void paint (QPainter *) override

virtual QFont realFont () const

virtual qreal realFontSize () const

void setAutoReferenceArea (const QObject *area)

void setGeometry (const QRect &r) override

void setText (const QString &text)

void setTextAlignment (Qt::Alignment)

void setTextAttributes (const TextAttributes &a)
 Use this to specify the text attributes to be used for this item. More...

QSize sizeHint () const override

virtual QSize sizeHintUnrotated () const

QString text () const

Qt::Alignment textAlignment () const

TextAttributes textAttributes () const

- Public Member Functions inherited from KDChart::AbstractLayoutItem
 AbstractLayoutItem (Qt::Alignment itemAlignment={})

virtual void paintCtx (PaintContext *context)

QLayout * parentLayout ()

void removeFromParentLayout ()

void setParentLayout (QLayout *lay)

virtual void setParentWidget (QWidget *widget)

virtual void sizeHintChanged () const


Protected Member Functions

 TextArea ()

QRect areaGeometry () const override

void positionHasChanged () override

- Protected Member Functions inherited from KDChart::AbstractAreaBase
 AbstractAreaBase ()

virtual ~AbstractAreaBase ()

QRect innerRect () const


Additional Inherited Members

- Static Public Member Functions inherited from KDChart::AbstractAreaBase
static void paintBackgroundAttributes (QPainter &painter, const QRect &rectangle, const KDChart::BackgroundAttributes &attributes)

static void paintFrameAttributes (QPainter &painter, const QRect &rectangle, const KDChart::FrameAttributes &attributes)

- Protected Attributes inherited from KDChart::AbstractLayoutItem
QWidget * mParent = nullptr

QLayout * mParentLayout = nullptr


Detailed Description

A text area in the chart with a background, a frame, etc.

TextArea is the base class for all text containing non-widget chart elements that have a set of background attributes and frame attributes, such as headers or footers.

Note
This class inherits AbstractAreaBase, TextLayoutItem, and QObject. The reason for this triple inheritance is that neither AbstractAreaBase nor TextLayoutItem inherit QObject.

Definition at line 34 of file KDChartTextArea.h.

Constructor & Destructor Documentation

◆ ~TextArea()

TextArea::~TextArea ( )
override

Definition at line 42 of file KDChartTextArea.cpp.

◆ TextArea()

TextArea::TextArea ( )
protected

Definition at line 34 of file KDChartTextArea.cpp.

Member Function Documentation

◆ areaGeometry()

QRect TextArea::areaGeometry ( ) const
overrideprotectedvirtual

Implements KDChart::AbstractAreaBase.

Definition at line 86 of file KDChartTextArea.cpp.

References KDChart::TextLayoutItem::geometry().

Referenced by paintAll().

◆ paintAll()

void TextArea::paintAll ( QPainter &  painter)
overridevirtual

Call paintAll, if you want the background and the frame to be drawn before the normal paint() is invoked automatically.

Reimplemented from KDChart::AbstractLayoutItem.

Definition at line 64 of file KDChartTextArea.cpp.

References areaGeometry(), KDChart::TextLayoutItem::geometry(), KDChart::AbstractAreaBase::innerRect(), KDChart::TextLayoutItem::paint(), KDChart::AbstractAreaBase::paintBackground(), KDChart::AbstractAreaBase::paintFrame(), and KDChart::TextLayoutItem::setGeometry().

Referenced by paintIntoRect().

◆ paintIntoRect()

void TextArea::paintIntoRect ( QPainter &  painter,
const QRect &  rect
)
virtual

Draws the background and frame, then calls paint().

In most cases there is no need to overwrite this method in a derived class, but you would overwrite TextLayoutItem::paint() instead.

Definition at line 52 of file KDChartTextArea.cpp.

References KDChart::TextLayoutItem::geometry(), paintAll(), and KDChart::TextLayoutItem::setGeometry().

◆ positionChanged

void KDChart::TextArea::positionChanged ( TextArea )
signal

Referenced by positionHasChanged().

◆ positionHasChanged()

void TextArea::positionHasChanged ( )
overrideprotectedvirtual

Reimplemented from KDChart::AbstractAreaBase.

Definition at line 91 of file KDChartTextArea.cpp.

References positionChanged().


The documentation for this class was generated from the following files:
