Polar coordinate plane. More...

#include <KDChartPolarCoordinatePlane.h>

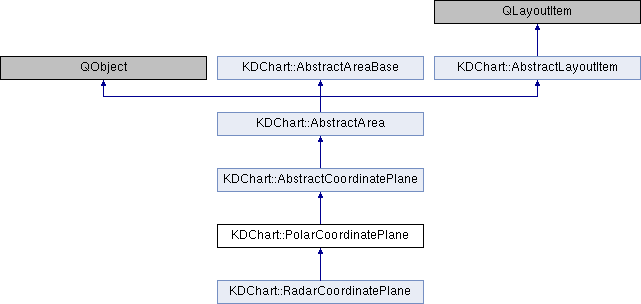

Inheritance diagram for KDChart::PolarCoordinatePlane:

Public Types
typedef QList< CoordinateTransformation >	CoordinateTransformationList

Public Types inherited from KDChart::AbstractCoordinatePlane
enum	AxesCalcMode { Linear , Logarithmic }

Public Member Functions
	PolarCoordinatePlane (Chart *parent=nullptr)

	~PolarCoordinatePlane () override

void	addDiagram (AbstractDiagram *diagram) override

qreal	angleUnit () const

const GridAttributes	gridAttributes (bool circular) const

bool	hasOwnGridAttributes (bool circular) const

void	paint (QPainter *) override

qreal	radiusUnit () const

void	resetGridAttributes (bool circular)

void	setGridAttributes (bool circular, const GridAttributes &)

void	setStartPosition (qreal degrees)

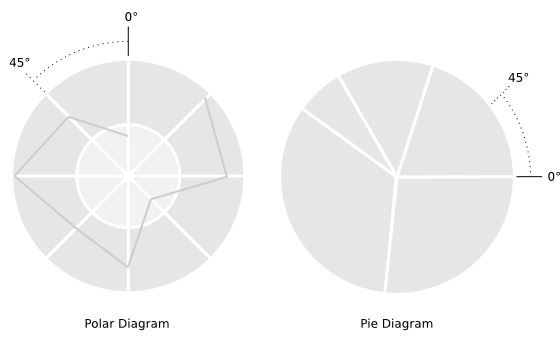

	Specify the rotation of the coordinate plane. More...

void	setZoomCenter (const QPointF &center) override

void	setZoomFactors (qreal factorX, qreal factorY) override

void	setZoomFactorX (qreal factor) override

void	setZoomFactorY (qreal factor) override

qreal	startPosition () const

const QPointF	translate (const QPointF &diagramPoint) const override

const QPointF	translatePolar (const QPointF &diagramPoint) const

QPointF	zoomCenter () const override

qreal	zoomFactorX () const override

qreal	zoomFactorY () const override

Public Member Functions inherited from KDChart::AbstractCoordinatePlane
	~AbstractCoordinatePlane () override

AbstractDiagram *	diagram ()

AbstractDiagramList	diagrams ()

ConstAbstractDiagramList	diagrams () const

Qt::Orientations	expandingDirections () const override

QRect	geometry () const override

GridAttributes	globalGridAttributes () const

DataDimensionsList	gridDimensionsList ()

bool	isCornerSpacersEnabled () const

bool	isEmpty () const override

bool	isRubberBandZoomingEnabled () const

bool	isVisiblePoint (const QPointF &point) const

QSize	maximumSize () const override

QSize	minimumSize () const override

virtual void	mouseDoubleClickEvent (QMouseEvent *event)

virtual void	mouseMoveEvent (QMouseEvent *event)

virtual void	mousePressEvent (QMouseEvent *event)

virtual void	mouseReleaseEvent (QMouseEvent *event)

Chart *	parent ()

const Chart *	parent () const

AbstractCoordinatePlane *	referenceCoordinatePlane () const

virtual void	replaceDiagram (AbstractDiagram diagram, AbstractDiagram oldDiagram=nullptr)

void	setCornerSpacersEnabled (bool enable)

void	setGeometry (const QRect &r) override

void	setGlobalGridAttributes (const GridAttributes &)

void	setParent (Chart *parent)

void	setReferenceCoordinatePlane (AbstractCoordinatePlane *plane)

void	setRubberBandZoomingEnabled (bool enable)

virtual AbstractCoordinatePlane *	sharedAxisMasterPlane (QPainter *p=nullptr)

QSize	sizeHint () const override

virtual void	takeDiagram (AbstractDiagram *diagram)

Public Member Functions inherited from KDChart::AbstractArea
	~AbstractArea () override

virtual int	bottomOverlap (bool doNotRecalculate=false) const

virtual int	leftOverlap (bool doNotRecalculate=false) const

void	paintAll (QPainter &painter) override

virtual void	paintIntoRect (QPainter &painter, const QRect &rect)
	Draws the background and frame, then calls paint(). More...

virtual int	rightOverlap (bool doNotRecalculate=false) const

virtual int	topOverlap (bool doNotRecalculate=false) const

Public Member Functions inherited from KDChart::AbstractAreaBase
void	alignToReferencePoint (const RelativePosition &position)

BackgroundAttributes	backgroundAttributes () const

bool	compare (const AbstractAreaBase *other) const

FrameAttributes	frameAttributes () const

void	getFrameLeadings (int &left, int &top, int &right, int &bottom) const

virtual void	paintBackground (QPainter &painter, const QRect &rectangle)

virtual void	paintFrame (QPainter &painter, const QRect &rectangle)

void	setBackgroundAttributes (const BackgroundAttributes &a)

void	setFrameAttributes (const FrameAttributes &a)

Public Member Functions inherited from KDChart::AbstractLayoutItem
	AbstractLayoutItem (Qt::Alignment itemAlignment={})

virtual void	paintCtx (PaintContext *context)

QLayout *	parentLayout ()

void	removeFromParentLayout ()

void	setParentLayout (QLayout *lay)

virtual void	setParentWidget (QWidget *widget)

virtual void	sizeHintChanged () const

Protected Slots
void	adjustZoomAndRepaint ()

void	slotLayoutChanged (AbstractDiagram *diagram)

Protected Member Functions
DataDimensionsList	getDataDimensionsList () const override

void	layoutDiagrams () override

void	paintEvent (QPaintEvent *)

void	resizeEvent (QResizeEvent *)

Protected Member Functions inherited from KDChart::AbstractCoordinatePlane
	AbstractCoordinatePlane (Chart *parent=nullptr)

Protected Member Functions inherited from KDChart::AbstractArea
	AbstractArea ()

QRect	areaGeometry () const override

void	positionHasChanged () override

Protected Member Functions inherited from KDChart::AbstractAreaBase
	AbstractAreaBase ()

virtual	~AbstractAreaBase ()

QRect	innerRect () const

Additional Inherited Members
Public Slots inherited from KDChart::AbstractCoordinatePlane
void	layoutPlanes ()

void	relayout ()

void	setGridNeedsRecalculate ()

void	update ()

Signals inherited from KDChart::AbstractCoordinatePlane
void	boundariesChanged ()

void	destroyedCoordinatePlane (AbstractCoordinatePlane *)

void	geometryChanged (QRect, QRect)

void	internal_geometryChanged (QRect, QRect)

void	needLayoutPlanes ()

void	needRelayout ()

void	needUpdate ()

void	propertiesChanged ()

void	viewportCoordinateSystemChanged ()

Signals inherited from KDChart::AbstractArea
void	positionChanged (AbstractArea *)

Static Public Member Functions inherited from KDChart::AbstractAreaBase
static void	paintBackgroundAttributes (QPainter &painter, const QRect &rectangle, const KDChart::BackgroundAttributes &attributes)

static void	paintFrameAttributes (QPainter &painter, const QRect &rectangle, const KDChart::FrameAttributes &attributes)

Protected Attributes inherited from KDChart::AbstractLayoutItem
QWidget *	mParent = nullptr

QLayout *	mParentLayout = nullptr

Detailed Description

Polar coordinate plane.

Definition at line 24 of file KDChartPolarCoordinatePlane.h.

Member Typedef Documentation

◆ CoordinateTransformationList

typedef QList<CoordinateTransformation> KDChart::PolarCoordinatePlane::CoordinateTransformationList

Definition at line 33 of file KDChartPolarCoordinatePlane.h.

Constructor & Destructor Documentation

◆ PolarCoordinatePlane()

PolarCoordinatePlane::PolarCoordinatePlane ( Chart * parent = nullptr )

explicit

Definition at line 35 of file KDChartPolarCoordinatePlane.cpp.

◆ ~PolarCoordinatePlane()

PolarCoordinatePlane::~PolarCoordinatePlane ( )

override

Definition at line 41 of file KDChartPolarCoordinatePlane.cpp.

Member Function Documentation

◆ addDiagram()

void PolarCoordinatePlane::addDiagram ( AbstractDiagram * diagram )

overridevirtual

Adds a diagram to this coordinate plane.

Parameters

diagram The diagram to add.

See also: replaceDiagram, takeDiagram

Reimplemented from KDChart::AbstractCoordinatePlane.

Definition at line 51 of file KDChartPolarCoordinatePlane.cpp.

References KDChart::AbstractCoordinatePlane::addDiagram(), KDChart::AbstractCoordinatePlane::diagram(), KDChart::AbstractDiagram::layoutChanged(), and slotLayoutChanged().

◆ adjustZoomAndRepaint

void PolarCoordinatePlane::adjustZoomAndRepaint ( )

protectedslot

Definition at line 121 of file KDChartPolarCoordinatePlane.cpp.

References d, setZoomFactors(), and KDChart::AbstractCoordinatePlane::update().

◆ angleUnit()

qreal PolarCoordinatePlane::angleUnit ( ) const

Definition at line 194 of file KDChartPolarCoordinatePlane.cpp.

References d.

Referenced by layoutDiagrams().

◆ getDataDimensionsList()

DataDimensionsList PolarCoordinatePlane::getDataDimensionsList ( ) const

overrideprotectedvirtual

Implements KDChart::AbstractCoordinatePlane.

Definition at line 291 of file KDChartPolarCoordinatePlane.cpp.

◆ gridAttributes()

const GridAttributes KDChart::PolarCoordinatePlane::gridAttributes ( bool circular ) const

Returns: The attributes used for grid lines drawn in circular direction (or in sagittal direction, resp.).

Note: This function always returns a valid set of grid attributes: If no special grid attributes were set for this direction the global attributes are returned, as returned by AbstractCoordinatePlane::globalGridAttributes.

See also: setGridAttributes; resetGridAttributes; AbstractCoordinatePlane::globalGridAttributes; hasOwnGridAttributes

Definition at line 320 of file KDChartPolarCoordinatePlane.cpp.

References d.

◆ hasOwnGridAttributes()

bool KDChart::PolarCoordinatePlane::hasOwnGridAttributes ( bool circular ) const

Returns: Returns whether the grid attributes have been set for the respective direction via setGridAttributes( bool circular ).

If false, the grid will use the global attributes set by AbstractCoordinatePlane::globalGridAttributes (or the default attributes, resp.)

See also: setGridAttributes; resetGridAttributes; AbstractCoordinatePlane::globalGridAttributes

Definition at line 355 of file KDChartPolarCoordinatePlane.cpp.

References d.

◆ layoutDiagrams()

void PolarCoordinatePlane::layoutDiagrams ( )

overrideprotectedvirtual

Distribute the available space among the diagrams and axes.

Implements KDChart::AbstractCoordinatePlane.

Definition at line 134 of file KDChartPolarCoordinatePlane.cpp.

References angleUnit(), KDChart::AbstractArea::areaGeometry(), d, KDChart::AbstractCoordinatePlane::diagram(), KDChart::AbstractCoordinatePlane::diagrams(), radiusUnit(), startPosition(), KDChart::AbstractCoordinatePlane::update(), and KDChart::CoordinateTransformation::zoom.

Referenced by resizeEvent(), and slotLayoutChanged().

◆ paint()

void PolarCoordinatePlane::paint ( QPainter * painter )

overridevirtual

reimp

Implements KDChart::AbstractLayoutItem.

Definition at line 60 of file KDChartPolarCoordinatePlane.cpp.

References d, KDChart::AbstractCoordinatePlane::diagrams(), KDChart::AbstractCoordinatePlane::geometry(), KDChart::PolarDiagram::paint(), KDChart::PaintContext::setCoordinatePlane(), KDChart::PaintContext::setPainter(), KDChart::PaintContext::setRectangle(), zoomFactorX(), and zoomFactorY().

◆ paintEvent()

void KDChart::PolarCoordinatePlane::paintEvent ( QPaintEvent * )

protected

◆ radiusUnit()

qreal PolarCoordinatePlane::radiusUnit ( ) const

Definition at line 201 of file KDChartPolarCoordinatePlane.cpp.

References d.

Referenced by layoutDiagrams().

◆ resetGridAttributes()

void KDChart::PolarCoordinatePlane::resetGridAttributes ( bool circular )

Reset the attributes to be used for grid lines drawn in circular direction (or in sagittal direction, resp.). By calling this method you specify that the global attributes set by AbstractCoordinatePlane::setGlobalGridAttributes be used.

See also: setGridAttributes, gridAttributes; AbstractCoordinatePlane::globalGridAttributes; hasOwnGridAttributes

Definition at line 313 of file KDChartPolarCoordinatePlane.cpp.

◆ resizeEvent()

void PolarCoordinatePlane::resizeEvent ( QResizeEvent * )

protected

Definition at line 128 of file KDChartPolarCoordinatePlane.cpp.

References d, and layoutDiagrams().

◆ setGridAttributes()

void KDChart::PolarCoordinatePlane::setGridAttributes	(	bool	circular,
		const GridAttributes &	a
	)

Set the attributes to be used for grid lines drawn in circular direction (or in sagittal direction, resp.).

To disable circular grid painting, for example, your code should like this:

GridAttributes ga = plane->gridAttributes( bool );
ga.setGridVisible( false );
plane-setGridAttributes( bool, ga );

Note: setGridAttributes overwrites the global attributes that were set by AbstractCoordinatePlane::setGlobalGridAttributes. To re-activate these global attributes you can call resetGridAttributes.
