#include <KDChartCartesianAxis.h>

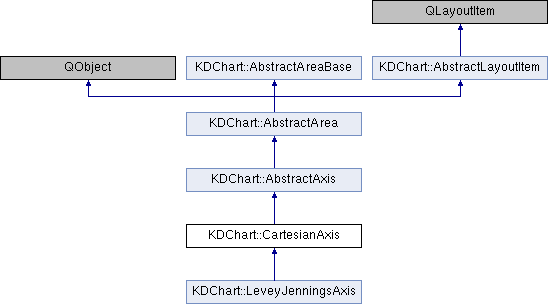

Inheritance diagram for KDChart::CartesianAxis:

Public Types
enum	Position { Bottom , Top , Right , Left }

Public Slots
void	setCachedSizeDirty () const

virtual int	tickLength (bool subUnitTicks=false) const

Public Slots inherited from KDChart::AbstractAxis
void	update ()

Public Member Functions
	CartesianAxis (AbstractCartesianDiagram *diagram=nullptr)

	~CartesianAxis () override

QMultiMap< qreal, QString >	annotations () const

bool	compare (const CartesianAxis *other) const

int	customTickLength () const

QList< qreal >	customTicks () const

Qt::Orientations	expandingDirections () const override

QRect	geometry () const override

bool	hasDefaultTitleTextAttributes () const

virtual bool	isAbscissa () const

bool	isEmpty () const override

virtual bool	isOrdinate () const

virtual void	layoutPlanes ()

QSize	maximumSize () const override

QSize	minimumSize () const override

void	paint (QPainter *) override

void	paintCtx (PaintContext *) override

virtual Position	position () const

void	resetTitleTextAttributes ()

void	setAnnotations (const QMultiMap< qreal, QString > &annotations)

void	setCustomTickLength (int value)

void	setCustomTicks (const QList< qreal > &ticksPostions)

void	setGeometry (const QRect &r) override

virtual void	setPosition (Position p)

Q_DECL_DEPRECATED void	setTitleSize (qreal value)
	use setTitleTextAttributes() instead More...

Q_DECL_DEPRECATED void	setTitleSpace (qreal value)

void	setTitleText (const QString &text)

void	setTitleTextAttributes (const TextAttributes &a)

QSize	sizeHint () const override

Q_DECL_DEPRECATED qreal	titleSize () const

Q_DECL_DEPRECATED qreal	titleSpace () const

QString	titleText () const

TextAttributes	titleTextAttributes () const

Public Member Functions inherited from KDChart::AbstractAxis
	AbstractAxis (AbstractDiagram *diagram=nullptr)

	~AbstractAxis () override

bool	compare (const AbstractAxis *other) const

virtual void	connectSignals ()

const AbstractCoordinatePlane *	coordinatePlane () const
	Convenience function, returns the coordinate plane, in which this axis is used. More...

void	createObserver (AbstractDiagram *diagram)

virtual const QString	customizedLabel (const QString &label) const
	Reimplement this method if you want to adjust axis labels before they are printed. More...

void	deleteObserver (AbstractDiagram *diagram)

const AbstractDiagram *	diagram () const

QStringList	labels () const

bool	observedBy (AbstractDiagram *diagram) const

RulerAttributes	rulerAttributes () const
	Returns the attributes to be used for painting the rulers. More...

void	setLabels (const QStringList &list)
	Use this to specify your own set of strings, to be used as axis labels. More...

void	setRulerAttributes (const RulerAttributes &a)
	Use this to specify the attributes used to paint the axis ruler. More...

void	setShortLabels (const QStringList &list)
	Use this to specify your own set of strings, to be used as axis labels, in case the normal labels are too long. More...

void	setTextAttributes (const TextAttributes &a)
	Use this to specify the text attributes to be used for axis labels. More...

QStringList	shortLabels () const

TextAttributes	textAttributes () const
	Returns the text attributes to be used for axis labels. More...

Public Member Functions inherited from KDChart::AbstractArea
	~AbstractArea () override

virtual int	bottomOverlap (bool doNotRecalculate=false) const

virtual int	leftOverlap (bool doNotRecalculate=false) const

void	paintAll (QPainter &painter) override

virtual void	paintIntoRect (QPainter &painter, const QRect &rect)
	Draws the background and frame, then calls paint(). More...

virtual int	rightOverlap (bool doNotRecalculate=false) const

virtual int	topOverlap (bool doNotRecalculate=false) const

Public Member Functions inherited from KDChart::AbstractAreaBase
void	alignToReferencePoint (const RelativePosition &position)

BackgroundAttributes	backgroundAttributes () const

bool	compare (const AbstractAreaBase *other) const

FrameAttributes	frameAttributes () const

void	getFrameLeadings (int &left, int &top, int &right, int &bottom) const

virtual void	paintBackground (QPainter &painter, const QRect &rectangle)

virtual void	paintFrame (QPainter &painter, const QRect &rectangle)

void	setBackgroundAttributes (const BackgroundAttributes &a)

void	setFrameAttributes (const FrameAttributes &a)

Public Member Functions inherited from KDChart::AbstractLayoutItem
	AbstractLayoutItem (Qt::Alignment itemAlignment={})

QLayout *	parentLayout ()

void	removeFromParentLayout ()

void	setParentLayout (QLayout *lay)

virtual void	setParentWidget (QWidget *widget)

virtual void	sizeHintChanged () const

Additional Inherited Members
Signals inherited from KDChart::AbstractAxis
void	coordinateSystemChanged ()

Signals inherited from KDChart::AbstractArea
void	positionChanged (AbstractArea *)

Static Public Member Functions inherited from KDChart::AbstractAreaBase
static void	paintBackgroundAttributes (QPainter &painter, const QRect &rectangle, const KDChart::BackgroundAttributes &attributes)

static void	paintFrameAttributes (QPainter &painter, const QRect &rectangle, const KDChart::FrameAttributes &attributes)

Protected Slots inherited from KDChart::AbstractAxis
virtual void	delayedInit ()

Protected Member Functions inherited from KDChart::AbstractArea
	AbstractArea ()

QRect	areaGeometry () const override

void	positionHasChanged () override

Protected Member Functions inherited from KDChart::AbstractAreaBase
	AbstractAreaBase ()

virtual	~AbstractAreaBase ()

QRect	innerRect () const

Protected Attributes inherited from KDChart::AbstractLayoutItem
QWidget *	mParent = nullptr

QLayout *	mParentLayout = nullptr

Detailed Description

The class for cartesian axes.

For being useful, axes need to be assigned to a diagram, see AbstractCartesianDiagram::addAxis and AbstractCartesianDiagram::takeAxis.

See also: PolarAxis, AbstractCartesianDiagram

Definition at line 30 of file KDChartCartesianAxis.h.

Member Enumeration Documentation

◆ Position

enum KDChart::CartesianAxis::Position

Enumerator
Bottom
Top
Right
Left

Definition at line 38 of file KDChartCartesianAxis.h.

Constructor & Destructor Documentation

◆ CartesianAxis()

CartesianAxis::CartesianAxis ( AbstractCartesianDiagram * diagram = nullptr )

explicit

C'tor of the class for cartesian axes.

Note: If you pass a null parent to the constructor, you need to call your diagram's addAxis function to add your axis to the diagram. Otherwise there is no need to call addAxis, since the constructor does it already.

See also: AbstractCartesianDiagram::addAxis

Definition at line 370 of file KDChartCartesianAxis.cpp.

◆ ~CartesianAxis()

CartesianAxis::~CartesianAxis ( )

override

Definition at line 376 of file KDChartCartesianAxis.cpp.

References d, and KDChart::AbstractAxis::diagram().

Member Function Documentation

◆ annotations()

QMultiMap< qreal, QString > CartesianAxis::annotations ( ) const

Returns the currently set axis annotations.

Definition at line 1114 of file KDChartCartesianAxis.cpp.

References d.

Referenced by setAnnotations().

◆ compare()

bool CartesianAxis::compare ( const CartesianAxis * other ) const

Returns true if both axes have the same settings.

Definition at line 398 of file KDChartCartesianAxis.cpp.

References KDChart::AbstractAxis::compare(), position(), titleText(), and titleTextAttributes().

◆ customTickLength()

int CartesianAxis::customTickLength ( ) const

Returns the length of custom ticks on the axis.

Definition at line 1103 of file KDChartCartesianAxis.cpp.

References d.

◆ customTicks()

QList< qreal > CartesianAxis::customTicks ( ) const

Returns the currently set custom ticks on the axis.

Definition at line 1129 of file KDChartCartesianAxis.cpp.

References d.

◆ expandingDirections()

Qt::Orientations CartesianAxis::expandingDirections ( ) const

override

pure virtual in QLayoutItem

Definition at line 922 of file KDChartCartesianAxis.cpp.

References Bottom, Left, position(), Right, and Top.

◆ geometry()

QRect CartesianAxis::geometry ( ) const

overridevirtual

pure virtual in QLayoutItem

Implements KDChart::AbstractAxis.

Definition at line 1088 of file KDChartCartesianAxis.cpp.

References d.

Referenced by KDChart::LeveyJenningsAxis::paintAsAbscissa(), KDChart::LeveyJenningsAxis::paintAsOrdinate(), and paintCtx().

◆ hasDefaultTitleTextAttributes()

bool CartesianAxis::hasDefaultTitleTextAttributes ( ) const

Definition at line 453 of file KDChartCartesianAxis.cpp.

References d.

Referenced by titleTextAttributes().

◆ isAbscissa()

bool CartesianAxis::isAbscissa ( ) const

virtual

Definition at line 515 of file KDChartCartesianAxis.cpp.

References Bottom, d, Left, position(), referenceDiagramIsBarDiagram(), Right, and Top.

Referenced by isOrdinate(), KDChart::LeveyJenningsAxis::paintAsAbscissa(), paintCtx(), and KDChart::CartesianCoordinatePlane::sharedAxisMasterPlane().

◆ isEmpty()

bool CartesianAxis::isEmpty ( ) const

override

pure virtual in QLayoutItem

Definition at line 916 of file KDChartCartesianAxis.cpp.

Referenced by paintCtx().

◆ isOrdinate()

bool CartesianAxis::isOrdinate ( ) const

virtual

Definition at line 523 of file KDChartCartesianAxis.cpp.

References isAbscissa().

Referenced by KDChart::LeveyJenningsAxis::paintAsOrdinate(), KDChart::LeveyJenningsAxis::paintCtx(), and KDChart::CartesianCoordinatePlane::sharedAxisMasterPlane().

◆ layoutPlanes()

void CartesianAxis::layoutPlanes ( )

virtual

Definition at line 480 of file KDChartCartesianAxis.cpp.

References d, and KDChart::AbstractCoordinatePlane::layoutPlanes().

Referenced by resetTitleTextAttributes(), setAnnotations(), setCustomTickLength(), setCustomTicks(), setPosition(), setTitleText(), and setTitleTextAttributes().

◆ maximumSize()

QSize CartesianAxis::maximumSize ( ) const

override

pure virtual in QLayoutItem

Definition at line 947 of file KDChartCartesianAxis.cpp.

References d.

Referenced by minimumSize(), and sizeHint().

◆ minimumSize()

QSize CartesianAxis::minimumSize ( ) const

override

pure virtual in QLayoutItem

Definition at line 1067 of file KDChartCartesianAxis.cpp.

References maximumSize().

◆ paint()

void CartesianAxis::paint ( QPainter * painter )

overridevirtual

reimp

Implements KDChart::AbstractLayoutItem.

Definition at line 528 of file KDChartCartesianAxis.cpp.

References KDChart::AbstractArea::areaGeometry(), d, paintCtx(), KDChart::PaintContext::setCoordinatePlane(), KDChart::PaintContext::setPainter(), KDChart::PaintContext::setRectangle(), KDChart::AbstractCoordinatePlane::zoomFactorX(), and KDChart::AbstractCoordinatePlane::zoomFactorY().

◆ paintCtx()

void CartesianAxis::paintCtx ( PaintContext * context )

overridevirtual

reimp

Reimplemented from KDChart::AbstractLayoutItem.

Reimplemented in KDChart::LeveyJenningsAxis.

Definition at line 641 of file KDChartCartesianAxis.cpp.

References KDChart::AbstractArea::areaGeometry(), KDChart::TextAttributes::autoRotate(), Bottom, KDChart::PaintContext::coordinatePlane(), KDChart::AbstractAxis::customizedLabel(), d, KDChart::DataDimension::end, geometry(), KDChart::AbstractCoordinatePlane::gridDimensionsList(), KDChart::RulerAttributes::hasTickMarkPenAt(), isAbscissa(), isEmpty(), KDChart::TextAttributes::isVisible(), KDChart::RulerAttributes::labelMargin(), Left, KDChart::RulerAttributes::majorTickMarkPen(), KDChartEnums::MeasureOrientationMinimum, KDChart::RulerAttributes::minorTickMarkPen(), KDChart::PaintContext::painter(), KDChart::AbstractCoordinatePlane::parent(), position(), referenceDiagramNeedsCenteredAbscissaTicks(), Right, KDChart::TextAttributes::rotation(), KDChart::AbstractAxis::rulerAttributes(), KDChart::TextAttributes::setRotation(), KDChart::RulerAttributes::showFirstTick(), KDChart::DataDimension::start, KDChart::AbstractAxis::textAttributes(), tickLength(), KDChart::RulerAttributes::tickMarkPen(), titleText(), Top, and KDChart::CartesianCoordinatePlane::translate().

Referenced by paint(), and KDChart::LeveyJenningsAxis::paintAsAbscissa().

◆ position()

CartesianAxis::Position CartesianAxis::position ( ) const

virtual

Definition at line 475 of file KDChartCartesianAxis.cpp.

References d.

Referenced by compare(), expandingDirections(), isAbscissa(), KDChart::LeveyJenningsAxis::paintAsAbscissa(), KDChart::LeveyJenningsAxis::paintAsOrdinate(), and paintCtx().

◆ resetTitleTextAttributes()

void CartesianAxis::resetTitleTextAttributes ( )

Reset the title text attributes to the built-in default:

Same font and pen as AbstractAxis::textAttributes() and 1.5 times their size.

Definition at line 446 of file KDChartCartesianAxis.cpp.

References d, layoutPlanes(), and setCachedSizeDirty().

◆ setAnnotations()

void CartesianAxis::setAnnotations ( const QMultiMap< qreal, QString > & annotations )

Sets the axis annotations to annotations. Annotations are a QMap of qreals and QStrings defining special markers and their position. If you use annotations, the normal ticks and values will be invisible. To unset the annotations, pass an empty QMap.

Definition at line 1119 of file KDChartCartesianAxis.cpp.

References annotations(), d, layoutPlanes(), and setCachedSizeDirty().

◆ setCachedSizeDirty

void CartesianAxis::setCachedSizeDirty ( ) const

slot

Definition at line 941 of file KDChartCartesianAxis.cpp.

References d.

Referenced by resetTitleTextAttributes(), setAnnotations(), setCustomTickLength(), setCustomTicks(), setGeometry(), setPosition(), setTitleText(), and setTitleTextAttributes().

◆ setCustomTickLength()

void CartesianAxis::setCustomTickLength ( int value )

Sets the length of custom ticks on the axis.

Definition at line 1093 of file KDChartCartesianAxis.cpp.

References d, layoutPlanes(), and setCachedSizeDirty().

◆ setCustomTicks()

void CartesianAxis::setCustomTicks ( const QList< qreal > & ticksPostions )

Sets custom ticks on the axis. Ticks are a QList of qreals defining their special position.

Definition at line 1134 of file KDChartCartesianAxis.cpp.

References d, layoutPlanes(), and setCachedSizeDirty().

◆ setGeometry()

void CartesianAxis::setGeometry ( const QRect & r )

overridevirtual

pure virtual in QLayoutItem

Implements KDChart::AbstractAxis.

Definition at line 1079 of file KDChartCartesianAxis.cpp.

References d, and setCachedSizeDirty().

◆ setPosition()

void CartesianAxis::setPosition ( Position p )

virtual

Definition at line 458 of file KDChartCartesianAxis.cpp.

References d, layoutPlanes(), and setCachedSizeDirty().

◆ setTitleSize()

void CartesianAxis::setTitleSize ( qreal value )

use setTitleTextAttributes() instead

Deprecated:

Definition at line 585 of file KDChartCartesianAxis.cpp.

◆ setTitleSpace()

void CartesianAxis::setTitleSpace ( qreal value )

Deprecated:: Sets the spacing between the title and the diagram. Be aware that setting this value can lead to collisions between axis labels and the title

Definition at line 575 of file KDChartCartesianAxis.cpp.

References d.

◆ setTitleText()

void CartesianAxis::setTitleText ( const QString & text )

Sets the optional text displayed as chart title.

Definition at line 414 of file KDChartCartesianAxis.cpp.

References d, layoutPlanes(), and setCachedSizeDirty().

◆ setTitleTextAttributes()

void CartesianAxis::setTitleTextAttributes ( const TextAttributes & a )

Definition at line 426 of file KDChartCartesianAxis.cpp.

References d, layoutPlanes(), and setCachedSizeDirty().

◆ sizeHint()

QSize CartesianAxis::sizeHint ( ) const

override

pure virtual in QLayoutItem

Definition at line 1073 of file KDChartCartesianAxis.cpp.

References maximumSize().

◆ tickLength

int CartesianAxis::tickLength ( bool subUnitTicks = false ) const

virtualslot

Definition at line 1108 of file KDChartCartesianAxis.cpp.

References KDChart::RulerAttributes::majorTickMarkLength(), KDChart::RulerAttributes::minorTickMarkLength(), and KDChart::AbstractAxis::rulerAttributes().

Referenced by paintCtx().

◆ titleSize()

qreal CartesianAxis::titleSize ( ) const

Deprecated:

Definition at line 591 of file KDChartCartesianAxis.cpp.

◆ titleSpace()

qreal CartesianAxis::titleSpace ( ) const

Deprecated:

Definition at line 580 of file KDChartCartesianAxis.cpp.

References d.

◆ titleText()

QString CartesianAxis::titleText ( ) const

Definition at line 421 of file KDChartCartesianAxis.cpp.

References d.

Referenced by compare(), and paintCtx().

◆ titleTextAttributes()

TextAttributes CartesianAxis::titleTextAttributes ( ) const

Returns the text attributes that will be used for displaying the title text. This is either the text attributes as specified by setTitleTextAttributes, or (if setTitleTextAttributes() was not called) the default text attributes.

See also: resetTitleTextAttributes, hasDefaultTitleTextAttributes

Definition at line 434 of file KDChartCartesianAxis.cpp.

References d, KDChart::TextAttributes::fontSize(), hasDefaultTitleTextAttributes(), KDChart::TextAttributes::setFontSize(), KDChart::Measure::setValue(), KDChart::AbstractAxis::textAttributes(), and KDChart::Measure::value().

Referenced by compare().

The documentation for this class was generated from the following files:

Public Types

Public Slots

Public Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ Position

Constructor & Destructor Documentation

◆ CartesianAxis()

◆ ~CartesianAxis()

Member Function Documentation

◆ annotations()

◆ compare()

◆ customTickLength()

◆ customTicks()

◆ expandingDirections()

◆ geometry()

◆ hasDefaultTitleTextAttributes()

◆ isAbscissa()

◆ isEmpty()

◆ isOrdinate()

◆ layoutPlanes()

◆ maximumSize()

◆ minimumSize()

◆ paint()

◆ paintCtx()

◆ position()

◆ resetTitleTextAttributes()

◆ setAnnotations()

◆ setCachedSizeDirty

◆ setCustomTickLength()

◆ setCustomTicks()

◆ setGeometry()

◆ setPosition()

◆ setTitleSize()

◆ setTitleSpace()

◆ setTitleText()

◆ setTitleTextAttributes()

◆ sizeHint()

◆ tickLength

◆ titleSize()

◆ titleSpace()

◆ titleText()

◆ titleTextAttributes()
