#include <KDChartAbstractAxis.h>

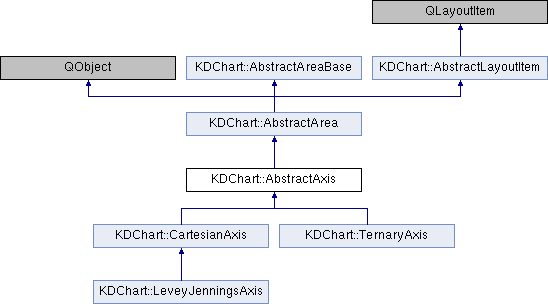

Inheritance diagram for KDChart::AbstractAxis:

Public Slots
void	update ()

Signals
void	coordinateSystemChanged ()

Signals inherited from KDChart::AbstractArea
void	positionChanged (AbstractArea *)

Public Member Functions
	AbstractAxis (AbstractDiagram *diagram=nullptr)

	~AbstractAxis () override

bool	compare (const AbstractAxis *other) const

virtual void	connectSignals ()

const AbstractCoordinatePlane *	coordinatePlane () const
	Convenience function, returns the coordinate plane, in which this axis is used. More...

void	createObserver (AbstractDiagram *diagram)

virtual const QString	customizedLabel (const QString &label) const
	Reimplement this method if you want to adjust axis labels before they are printed. More...

void	deleteObserver (AbstractDiagram *diagram)

const AbstractDiagram *	diagram () const

QRect	geometry () const override=0

QStringList	labels () const

bool	observedBy (AbstractDiagram *diagram) const

RulerAttributes	rulerAttributes () const
	Returns the attributes to be used for painting the rulers. More...

void	setGeometry (const QRect &rect) override=0

void	setLabels (const QStringList &list)
	Use this to specify your own set of strings, to be used as axis labels. More...

void	setRulerAttributes (const RulerAttributes &a)
	Use this to specify the attributes used to paint the axis ruler. More...

void	setShortLabels (const QStringList &list)
	Use this to specify your own set of strings, to be used as axis labels, in case the normal labels are too long. More...

void	setTextAttributes (const TextAttributes &a)
	Use this to specify the text attributes to be used for axis labels. More...

QStringList	shortLabels () const

TextAttributes	textAttributes () const
	Returns the text attributes to be used for axis labels. More...

Public Member Functions inherited from KDChart::AbstractArea
	~AbstractArea () override

virtual int	bottomOverlap (bool doNotRecalculate=false) const

virtual int	leftOverlap (bool doNotRecalculate=false) const

void	paintAll (QPainter &painter) override

virtual void	paintIntoRect (QPainter &painter, const QRect &rect)
	Draws the background and frame, then calls paint(). More...

virtual int	rightOverlap (bool doNotRecalculate=false) const

virtual int	topOverlap (bool doNotRecalculate=false) const

Public Member Functions inherited from KDChart::AbstractAreaBase
void	alignToReferencePoint (const RelativePosition &position)

BackgroundAttributes	backgroundAttributes () const

bool	compare (const AbstractAreaBase *other) const

FrameAttributes	frameAttributes () const

void	getFrameLeadings (int &left, int &top, int &right, int &bottom) const

virtual void	paintBackground (QPainter &painter, const QRect &rectangle)

virtual void	paintFrame (QPainter &painter, const QRect &rectangle)

void	setBackgroundAttributes (const BackgroundAttributes &a)

void	setFrameAttributes (const FrameAttributes &a)

Public Member Functions inherited from KDChart::AbstractLayoutItem
	AbstractLayoutItem (Qt::Alignment itemAlignment={})

virtual void	paint (QPainter *)=0

virtual void	paintCtx (PaintContext *context)

QLayout *	parentLayout ()

void	removeFromParentLayout ()

void	setParentLayout (QLayout *lay)

virtual void	setParentWidget (QWidget *widget)

virtual void	sizeHintChanged () const

Protected Slots
virtual void	delayedInit ()

Additional Inherited Members
Static Public Member Functions inherited from KDChart::AbstractAreaBase
static void	paintBackgroundAttributes (QPainter &painter, const QRect &rectangle, const KDChart::BackgroundAttributes &attributes)

static void	paintFrameAttributes (QPainter &painter, const QRect &rectangle, const KDChart::FrameAttributes &attributes)

Protected Member Functions inherited from KDChart::AbstractArea
	AbstractArea ()

QRect	areaGeometry () const override

void	positionHasChanged () override

Protected Member Functions inherited from KDChart::AbstractAreaBase
	AbstractAreaBase ()

virtual	~AbstractAreaBase ()

QRect	innerRect () const

Protected Attributes inherited from KDChart::AbstractLayoutItem
QWidget *	mParent = nullptr

QLayout *	mParentLayout = nullptr

Detailed Description

The base class for axes.

For being useful, axes need to be assigned to a diagram, see AbstractCartesianDiagram::addAxis and AbstractCartesianDiagram::takeAxis.

See also: PolarAxis, AbstractCartesianDiagram

Definition at line 44 of file KDChartAbstractAxis.h.

Constructor & Destructor Documentation

◆ AbstractAxis()

AbstractAxis::AbstractAxis ( AbstractDiagram * diagram = nullptr )

explicit

Definition at line 100 of file KDChartAbstractAxis.cpp.

References delayedInit().

◆ ~AbstractAxis()

AbstractAxis::~AbstractAxis ( )

override

Definition at line 107 of file KDChartAbstractAxis.cpp.

References d.

Member Function Documentation

◆ compare()

bool AbstractAxis::compare ( const AbstractAxis * other ) const

Returns true if both axes have the same settings.

Definition at line 132 of file KDChartAbstractAxis.cpp.

References labels(), shortLabels(), and textAttributes().

Referenced by KDChart::CartesianAxis::compare().

◆ connectSignals()

void AbstractAxis::connectSignals ( )

virtual

Wireing the signal/slot connections.

This method gets called automatically, each time, when you assign the axis to a diagram, either by passing a diagram* to the c'tor, or by calling the diagram's setAxis method, resp.

If overwriting this method in derived classes, make sure to call this base method AbstractAxis::connectSignals(), so your axis gets connected to the diagram's built-in signals.

See also: AbstractCartesianDiagram::addAxis()

Definition at line 159 of file KDChartAbstractAxis.cpp.

References coordinateSystemChanged(), d, and KDChart::DiagramObserver::diagramDataChanged().

◆ coordinatePlane()

const AbstractCoordinatePlane * AbstractAxis::coordinatePlane ( ) const

Convenience function, returns the coordinate plane, in which this axis is used.

If the axis is not used in a coordinate plane, the return value is Zero.

Definition at line 222 of file KDChartAbstractAxis.cpp.

References d.

◆ coordinateSystemChanged

void KDChart::AbstractAxis::coordinateSystemChanged ( )

signal

Referenced by connectSignals().

◆ createObserver()

void AbstractAxis::createObserver ( AbstractDiagram * diagram )

Definition at line 149 of file KDChartAbstractAxis.cpp.

References d, and diagram().

Referenced by KDChart::AbstractCartesianDiagram::addAxis().

◆ customizedLabel()

const QString AbstractAxis::customizedLabel ( const QString & label ) const

virtual

Reimplement this method if you want to adjust axis labels before they are printed.

KD Chart is calling this method immediately before drawing the text, this means: What you return here will be drawn without further modifications.

Parameters

label The text of the label as KD Chart has calculated it automatically (or as it was taken from a QStringList provided by you, resp.)

Note: If you reimplement this method in a subclass of KDChartCartesianAxis, and your reimplementation's return value depends on data other than label (so KDChart will not know when it changes), you must manually ensure that layouts are adapted to any changed sizes of the axis labels. To do that, call KDChartCartesianAxis::layoutPlanes() from your reimplementation when you know that the external data changed and it will change label sizes - or when you cannot exclude that.

Returns: The text to be drawn. By default this is the same as label.

Definition at line 144 of file KDChartAbstractAxis.cpp.

Referenced by KDChart::LeveyJenningsAxis::paintAsOrdinate(), and KDChart::CartesianAxis::paintCtx().

◆ delayedInit

void AbstractAxis::delayedInit ( )

protectedvirtualslot

called for initializing after the c'tor has completed

Definition at line 124 of file KDChartAbstractAxis.cpp.

References d.

Referenced by AbstractAxis().

◆ deleteObserver()

void AbstractAxis::deleteObserver ( AbstractDiagram * diagram )

Definition at line 154 of file KDChartAbstractAxis.cpp.

References d, and diagram().

Referenced by KDChart::AbstractCartesianDiagram::takeAxis().

◆ diagram()

const AbstractDiagram * KDChart::AbstractAxis::diagram ( ) const

Definition at line 229 of file KDChartAbstractAxis.cpp.

References d.

Referenced by KDChart::TernaryAxis::TernaryAxis(), KDChart::CartesianAxis::~CartesianAxis(), KDChart::LeveyJenningsAxis::~LeveyJenningsAxis(), createObserver(), and deleteObserver().

◆ geometry()

QRect KDChart::AbstractAxis::geometry ( ) const

overridepure virtual

Implemented in KDChart::TernaryAxis, and KDChart::CartesianAxis.

◆ labels()

QStringList AbstractAxis::labels ( ) const

Returns a list of strings, that are used as axis labels, as set via setLabels.

See also: setLabels

Definition at line 203 of file KDChartAbstractAxis.cpp.

References d.

Referenced by compare(), KDChart::LeveyJenningsAxis::paintAsOrdinate(), and KDChart::TernaryAxis::paintCtx().

◆ observedBy()

bool KDChart::AbstractAxis::observedBy ( AbstractDiagram * diagram ) const

Definition at line 234 of file KDChartAbstractAxis.cpp.

References d.

◆ rulerAttributes()

RulerAttributes AbstractAxis::rulerAttributes ( ) const

Returns the attributes to be used for painting the rulers.

See also: setRulerAttributes

Definition at line 189 of file KDChartAbstractAxis.cpp.

References d.

Referenced by KDChart::CartesianAxis::paintCtx(), and KDChart::CartesianAxis::tickLength().

◆ setGeometry()

void KDChart::AbstractAxis::setGeometry ( const QRect & rect )

overridepure virtual

Implemented in KDChart::TernaryAxis, and KDChart::CartesianAxis.

◆ setLabels()

void AbstractAxis::setLabels ( const QStringList & list )

Use this to specify your own set of strings, to be used as axis labels.

Labels specified via setLabels take precedence: If a non-empty list is passed, KD Chart will use these strings as axis labels, instead of calculating them.

If you pass a smaller number of strings than the number of labels drawn at this axis, KD Chart will repeat the strings until all labels are drawn. As an example you could specify the seven days of the week as abscissa labels, which would be repeatedly used then.

By passing an empty QStringList you can reset the default behaviour.

See also: labels, setShortLabels

Definition at line 194 of file KDChartAbstractAxis.cpp.

References d.

Referenced by KDChart::LeveyJenningsAxis::paintAsAbscissa().

◆ setRulerAttributes()

void AbstractAxis::setRulerAttributes ( const RulerAttributes & a )

Use this to specify the attributes used to paint the axis ruler.

Every axis has a default set of ruler attributes that is exactly the same among them. Use this method to specify your own attributes.

See also: rulerAttributes

Definition at line 183 of file KDChartAbstractAxis.cpp.

References d.

◆ setShortLabels()

void AbstractAxis::setShortLabels ( const QStringList & list )

Use this to specify your own set of strings, to be used as axis labels, in case the normal labels are too long.

Note: Setting done via setShortLabels will be ignored, if you did not pass a non-empty string list via setLabels too!

By passing an empty QStringList you can reset the default behaviour.

See also: shortLabels, setLabels

Definition at line 208 of file KDChartAbstractAxis.cpp.

References d.

◆ setTextAttributes()

void AbstractAxis::setTextAttributes ( const TextAttributes & a )

Use this to specify the text attributes to be used for axis labels.

By default, the reference area will be set at painting time. It will be the then-valid coordinate plane's parent widget, so normally, it will be the KDChart::Chart. Thus the labels of all of your axes in all of your diagrams within that Chart will be drawn in same font size, by default.

See also: textAttributes, setLabels

Definition at line 169 of file KDChartAbstractAxis.cpp.

References d.

Referenced by KDChart::LeveyJenningsAxis::setType().

◆ shortLabels()

QStringList AbstractAxis::shortLabels ( ) const

Returns a list of strings, that are used as axis labels, as set via setShortLabels.

Note: Setting done via setShortLabels will be ignored, if you did not pass a non-empty string list via setLabels too!

See also: setShortLabels

Definition at line 217 of file KDChartAbstractAxis.cpp.

References d.

Referenced by compare().

◆ textAttributes()

TextAttributes AbstractAxis::textAttributes ( ) const

Returns the text attributes to be used for axis labels.

See also: setTextAttributes

Definition at line 178 of file KDChartAbstractAxis.cpp.

References d.

Referenced by compare(), KDChart::LeveyJenningsAxis::paintAsAbscissa(), KDChart::LeveyJenningsAxis::paintAsOrdinate(), KDChart::CartesianAxis::paintCtx(), KDChart::LeveyJenningsAxis::setType(), and KDChart::CartesianAxis::titleTextAttributes().

◆ update

void KDChart::AbstractAxis::update ( )

slot

Definition at line 239 of file KDChartAbstractAxis.cpp.

References d.

The documentation for this class was generated from the following files:

Public Slots

Signals

Public Member Functions

Protected Slots

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ AbstractAxis()

◆ ~AbstractAxis()

Member Function Documentation

◆ compare()

◆ connectSignals()

◆ coordinatePlane()

◆ coordinateSystemChanged

◆ createObserver()

◆ customizedLabel()

◆ delayedInit

◆ deleteObserver()

◆ diagram()

◆ geometry()

◆ labels()

◆ observedBy()

◆ rulerAttributes()

◆ setGeometry()

◆ setLabels()

◆ setRulerAttributes()

◆ setShortLabels()

◆ setTextAttributes()

◆ shortLabels()

◆ textAttributes()

◆ update
