Base class for diagrams based on a polar coordinate system. More...

#include <KDChartAbstractPolarDiagram.h>

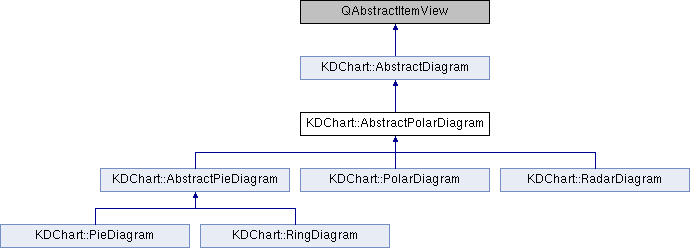

Inheritance diagram for KDChart::AbstractPolarDiagram:

Public Member Functions
	AbstractPolarDiagram (QWidget parent=nullptr, PolarCoordinatePlane plane=nullptr)

	~AbstractPolarDiagram () override

int	columnCount () const

virtual qreal	numberOfDatasets () const

virtual qreal	numberOfGridRings () const =0

virtual qreal	numberOfValuesPerDataset () const =0

const PolarCoordinatePlane *	polarCoordinatePlane () const

int	rowCount () const

virtual qreal	valueTotals () const =0

Public Member Functions inherited from KDChart::AbstractDiagram
	~AbstractDiagram () override

bool	allowOverlappingDataValueTexts () const

bool	antiAliasing () const

virtual AttributesModel *	attributesModel () const

QBrush	brush () const

QBrush	brush (const QModelIndex &index) const

QBrush	brush (int dataset) const

bool	compare (const AbstractDiagram *other) const

AbstractCoordinatePlane *	coordinatePlane () const

const QPair< QPointF, QPointF >	dataBoundaries () const
	Return the bottom left and top right data point, that the diagram will display (unless the grid adjusts these values). More...

void	dataChanged (const QModelIndex &topLeft, const QModelIndex &bottomRight, const QVector< int > &roles=QVector< int >()) override

QList< QBrush >	datasetBrushes () const

int	datasetDimension () const

QStringList	datasetLabels () const

QList< MarkerAttributes >	datasetMarkers () const

QList< QPen >	datasetPens () const

DataValueAttributes	dataValueAttributes () const

DataValueAttributes	dataValueAttributes (const QModelIndex &index) const

DataValueAttributes	dataValueAttributes (int dataset) const

void	doItemsLayout () override

int	horizontalOffset () const override

QModelIndex	indexAt (const QPoint &point) const override

QModelIndexList	indexesAt (const QPoint &point) const

QModelIndexList	indexesIn (const QRect &rect) const

bool	isHidden () const

bool	isHidden (const QModelIndex &index) const

bool	isHidden (int dataset) const

bool	isIndexHidden (const QModelIndex &index) const override

QStringList	itemRowLabels () const

QModelIndex	moveCursor (CursorAction cursorAction, Qt::KeyboardModifiers modifiers) override

virtual void	paint (PaintContext *paintContext)=0

void	paintDataValueText (QPainter *painter, const QModelIndex &index, const QPointF &pos, qreal value)

void	paintMarker (QPainter *painter, const DataValueAttributes &a, const QModelIndex &index, const QPointF &pos)

virtual void	paintMarker (QPainter *painter, const MarkerAttributes &markerAttributes, const QBrush &brush, const QPen &, const QPointF &point, const QSizeF &size)

void	paintMarker (QPainter *painter, const QModelIndex &index, const QPointF &pos)

QPen	pen () const

QPen	pen (const QModelIndex &index) const

QPen	pen (int dataset) const

bool	percentMode () const
	Returns whether this diagram is drawn in percent mode. More...

virtual void	resize (const QSizeF &area)=0

void	scrollTo (const QModelIndex &index, ScrollHint hint=EnsureVisible) override

void	setAllowOverlappingDataValueTexts (bool allow)

void	setAntiAliasing (bool enabled)

virtual void	setAttributesModel (AttributesModel *model)
	Sets an external AttributesModel on this diagram. More...

void	setBrush (const QBrush &brush)

void	setBrush (const QModelIndex &index, const QBrush &brush)

void	setBrush (int dataset, const QBrush &brush)

virtual void	setCoordinatePlane (AbstractCoordinatePlane *plane)

Q_DECL_DEPRECATED void	setDatasetDimension (int dimension)

void	setDataValueAttributes (const DataValueAttributes &a)

void	setDataValueAttributes (const QModelIndex &index, const DataValueAttributes &a)

void	setDataValueAttributes (int dataset, const DataValueAttributes &a)

void	setHidden (bool hidden)

void	setHidden (const QModelIndex &index, bool hidden)

void	setHidden (int dataset, bool hidden)

void	setModel (QAbstractItemModel *model) override

void	setPen (const QModelIndex &index, const QPen &pen)

void	setPen (const QPen &pen)

void	setPen (int dataset, const QPen &pen)

Q_DECL_DEPRECATED void	setPercentMode (bool percent)
	Deprecated method that turns the percent mode of this diagram on or off. More...

void	setRootIndex (const QModelIndex &idx) override
	Reimplemented for internal purposes. More...

void	setSelection (const QRect &rect, QItemSelectionModel::SelectionFlags command) override

void	setSelectionModel (QItemSelectionModel *selectionModel) override

void	setUnitPrefix (const QString &prefix, int column, Qt::Orientation orientation)

void	setUnitPrefix (const QString &prefix, Qt::Orientation orientation)

void	setUnitSuffix (const QString &suffix, int column, Qt::Orientation orientation)

void	setUnitSuffix (const QString &suffix, Qt::Orientation orientation)

QString	unitPrefix (int column, Qt::Orientation orientation, bool fallback=false) const

QString	unitPrefix (Qt::Orientation orientation) const

QString	unitSuffix (int column, Qt::Orientation orientation, bool fallback=false) const

QString	unitSuffix (Qt::Orientation orientation) const

void	update () const

void	useDefaultColors ()

void	useRainbowColors ()

virtual bool	usesExternalAttributesModel () const

void	useSubduedColors ()

int	verticalOffset () const override

QRect	visualRect (const QModelIndex &index) const override

virtual QRegion	visualRegion (const QModelIndex &index) const

QRegion	visualRegionForSelection (const QItemSelection &selection) const override

Additional Inherited Members
Signals inherited from KDChart::AbstractDiagram
void	aboutToBeDestroyed ()

void	attributesModelAboutToChange (AttributesModel newModel, AttributesModel oldModel)

void	boundariesChanged ()

void	dataHidden ()

void	layoutChanged (AbstractDiagram *)

void	modelDataChanged ()

void	modelsChanged ()

void	propertiesChanged ()

void	viewportCoordinateSystemChanged ()

Protected Slots inherited from KDChart::AbstractDiagram
void	setDataBoundariesDirty () const

Protected Member Functions inherited from KDChart::AbstractDiagram
	AbstractDiagram (Private p, QWidget parent, AbstractCoordinatePlane *plane)

	AbstractDiagram (QWidget parent=nullptr, AbstractCoordinatePlane plane=nullptr)

QModelIndex	attributesModelRootIndex () const
	returns a QModelIndex pointing into the AttributesModel that corresponds to the root index of the diagram. More...

virtual const QPair< QPointF, QPointF >	calculateDataBoundaries () const =0

virtual bool	checkInvariants (bool justReturnTheStatus=false) const

virtual Q_DECL_DEPRECATED void	paintDataValueTexts (QPainter *painter)

virtual Q_DECL_DEPRECATED void	paintMarkers (QPainter *painter)

void	setAttributesModelRootIndex (const QModelIndex &)

void	setDatasetDimensionInternal (int dimension)

Q_DECL_DEPRECATED qreal	valueForCell (int row, int column) const
