A header or footer displaying text above or below charts. More...

#include <KDChartHeaderFooter.h>

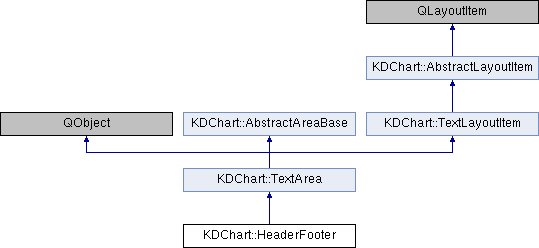

Inheritance diagram for KDChart::HeaderFooter:

Public Types
enum	HeaderFooterType { Header , Footer }

Signals
void	destroyedHeaderFooter (HeaderFooter *)

void	positionChanged (HeaderFooter *)

Signals inherited from KDChart::TextArea
void	positionChanged (TextArea *)

Public Member Functions
	HeaderFooter (Chart *parent=nullptr)

	~HeaderFooter () override

virtual HeaderFooter *	clone () const

bool	compare (const HeaderFooter &other) const

Position	position () const

void	setParent (QObject *parent)

void	setPosition (Position position)

void	setType (HeaderFooterType type)

HeaderFooterType	type () const

Public Member Functions inherited from KDChart::TextArea
	~TextArea () override

void	paintAll (QPainter &painter) override

virtual void	paintIntoRect (QPainter &painter, const QRect &rect)
	Draws the background and frame, then calls paint(). More...

Public Member Functions inherited from KDChart::AbstractAreaBase
void	alignToReferencePoint (const RelativePosition &position)

BackgroundAttributes	backgroundAttributes () const

bool	compare (const AbstractAreaBase *other) const

FrameAttributes	frameAttributes () const

void	getFrameLeadings (int &left, int &top, int &right, int &bottom) const

virtual void	paintBackground (QPainter &painter, const QRect &rectangle)

virtual void	paintFrame (QPainter &painter, const QRect &rectangle)

void	setBackgroundAttributes (const BackgroundAttributes &a)

void	setFrameAttributes (const FrameAttributes &a)

Public Member Functions inherited from KDChart::TextLayoutItem
	TextLayoutItem ()

	TextLayoutItem (const QString &text, const TextAttributes &attributes, const QObject *autoReferenceArea, KDChartEnums::MeasureOrientation autoReferenceOrientation, Qt::Alignment alignment={})

const QObject *	autoReferenceArea () const

QPolygon	boundingPolygon () const

Qt::Orientations	expandingDirections () const override

QRect	geometry () const override

virtual bool	intersects (const TextLayoutItem &other, const QPoint &myPos, const QPoint &otherPos) const

virtual bool	intersects (const TextLayoutItem &other, const QPointF &myPos, const QPointF &otherPos) const

bool	isEmpty () const override

virtual int	marginWidth () const

QSize	maximumSize () const override

QSize	minimumSize () const override

void	paint (QPainter *) override

virtual QFont	realFont () const

virtual qreal	realFontSize () const

void	setAutoReferenceArea (const QObject *area)

void	setGeometry (const QRect &r) override

void	setText (const QString &text)

void	setTextAlignment (Qt::Alignment)

void	setTextAttributes (const TextAttributes &a)
	Use this to specify the text attributes to be used for this item. More...

QSize	sizeHint () const override

virtual QSize	sizeHintUnrotated () const

QString	text () const

Qt::Alignment	textAlignment () const

TextAttributes	textAttributes () const

Public Member Functions inherited from KDChart::AbstractLayoutItem
	AbstractLayoutItem (Qt::Alignment itemAlignment={})

virtual void	paintCtx (PaintContext *context)

QLayout *	parentLayout ()

void	removeFromParentLayout ()

void	setParentLayout (QLayout *lay)

virtual void	setParentWidget (QWidget *widget)

virtual void	sizeHintChanged () const

Additional Inherited Members
Static Public Member Functions inherited from KDChart::AbstractAreaBase
static void	paintBackgroundAttributes (QPainter &painter, const QRect &rectangle, const KDChart::BackgroundAttributes &attributes)

static void	paintFrameAttributes (QPainter &painter, const QRect &rectangle, const KDChart::FrameAttributes &attributes)

Protected Member Functions inherited from KDChart::TextArea
	TextArea ()

QRect	areaGeometry () const override

void	positionHasChanged () override

Protected Member Functions inherited from KDChart::AbstractAreaBase
	AbstractAreaBase ()

virtual	~AbstractAreaBase ()

QRect	innerRect () const

Protected Attributes inherited from KDChart::AbstractLayoutItem
QWidget *	mParent = nullptr

QLayout *	mParentLayout = nullptr

Detailed Description

A header or footer displaying text above or below charts.

Definition at line 25 of file KDChartHeaderFooter.h.

Member Enumeration Documentation

◆ HeaderFooterType

enum KDChart::HeaderFooter::HeaderFooterType

Enumerator
Header
Footer

Definition at line 39 of file KDChartHeaderFooter.h.

Constructor & Destructor Documentation

◆ HeaderFooter()

HeaderFooter::HeaderFooter ( Chart * parent = nullptr )

Definition at line 40 of file KDChartHeaderFooter.cpp.

References setParent().

Referenced by clone().

◆ ~HeaderFooter()

HeaderFooter::~HeaderFooter ( )

override

Definition at line 47 of file KDChartHeaderFooter.cpp.

References destroyedHeaderFooter().

Member Function Documentation

◆ clone()

HeaderFooter * HeaderFooter::clone ( ) const

virtual

Creates an exact copy of this header/footer.

Definition at line 80 of file KDChartHeaderFooter.cpp.

References HeaderFooter(), d, position(), KDChart::TextLayoutItem::text(), KDChart::TextLayoutItem::textAttributes(), and type().

◆ compare()

bool HeaderFooter::compare ( const HeaderFooter & other ) const

Definition at line 90 of file KDChartHeaderFooter.cpp.

References KDChart::TextLayoutItem::autoReferenceArea(), position(), KDChart::TextLayoutItem::text(), KDChart::TextLayoutItem::textAttributes(), and type().

◆ destroyedHeaderFooter

void KDChart::HeaderFooter::destroyedHeaderFooter ( HeaderFooter * )

signal

Referenced by ~HeaderFooter(), KDChart::Chart::addHeaderFooter(), and KDChart::Chart::takeHeaderFooter().

◆ position()

Position HeaderFooter::position ( ) const

Definition at line 118 of file KDChartHeaderFooter.cpp.

References d.

Referenced by KDChart::Chart::addHeaderFooter(), clone(), compare(), and setPosition().

◆ positionChanged

void KDChart::HeaderFooter::positionChanged ( HeaderFooter * )

signal

Referenced by KDChart::Chart::addHeaderFooter(), setPosition(), and setType().

◆ setParent()

void HeaderFooter::setParent ( QObject * parent )

Definition at line 52 of file KDChartHeaderFooter.cpp.

References KDChart::TextLayoutItem::autoReferenceArea(), KDChart::TextLayoutItem::setAutoReferenceArea(), and KDChart::AbstractLayoutItem::setParentWidget().

Referenced by HeaderFooter(), KDChart::Widget::addHeaderFooter(), and KDChart::Widget::replaceHeaderFooter().

◆ setPosition()

void HeaderFooter::setPosition ( Position position )

Definition at line 110 of file KDChartHeaderFooter.cpp.

References d, position(), and positionChanged().

◆ setType()

void HeaderFooter::setType ( HeaderFooterType type )

Definition at line 97 of file KDChartHeaderFooter.cpp.

References d, positionChanged(), and type().

◆ type()

HeaderFooter::HeaderFooterType HeaderFooter::type ( ) const

Definition at line 105 of file KDChartHeaderFooter.cpp.
