Legend defines the interface for the legend drawing class. More...

#include <KDChartLegend.h>

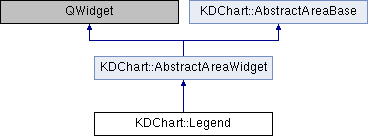

Inheritance diagram for KDChart::Legend:

Public Types
enum	LegendStyle { MarkersOnly = 0 , LinesOnly = 1 , MarkersAndLines = 2 }

Signals
void	destroyedLegend (Legend *)

void	propertiesChanged ()

Signals inherited from KDChart::AbstractAreaWidget
void	positionChanged (AbstractAreaWidget *)

Public Member Functions
	Legend (KDChart::AbstractDiagram diagram, QWidget parent=nullptr)

	Legend (QWidget *parent=nullptr)

	~Legend () override

void	addDiagram (KDChart::AbstractDiagram *newDiagram)

Qt::Alignment	alignment () const

QBrush	brush (uint dataset) const

const QMap< uint, QBrush >	brushes () const

virtual Legend *	clone () const

bool	compare (const Legend *other) const

ConstDiagramList	constDiagrams () const

uint	datasetCount () const

bool	datasetIsHidden (uint dataset) const

uint	dataSetOffset (KDChart::AbstractDiagram *diagram)

KDChart::AbstractDiagram *	diagram () const

DiagramList	diagrams () const

const RelativePosition	floatingPosition () const

void	forceRebuild () override

bool	hasHeightForWidth () const override

int	heightForWidth (int width) const override

const QList< uint >	hiddenDatasets () const

LegendStyle	legendStyle () const

Qt::Alignment	legendSymbolAlignment () const
	Returns the alignment used while drawing legend symbol(alignment of Legend::LinesOnly) within the legend. More...

const QMap< uint, MarkerAttributes >	markerAttributes () const

MarkerAttributes	markerAttributes (uint dataset) const

QSize	minimumSizeHint () const override

void	needSizeHint () override

Qt::Orientation	orientation () const

void	paint (QPainter *painter) override

QPen	pen (uint dataset) const

const QMap< uint, QPen >	pens () const

Position	position () const

const QWidget *	referenceArea () const

void	removeDiagram (KDChart::AbstractDiagram *oldDiagram)

void	removeDiagrams ()

void	replaceDiagram (KDChart::AbstractDiagram newDiagram, KDChart::AbstractDiagram oldDiagram=nullptr)

void	resetTexts ()
	Removes all legend texts that might have been set by setText. More...

void	resizeEvent (QResizeEvent *event) override

void	resizeLayout (const QSize &size) override

void	setAlignment (Qt::Alignment)
	Specify the alignment of a non-floating legend. More...

void	setBrush (uint dataset, const QBrush &brush)

void	setBrushesFromDiagram (KDChart::AbstractDiagram *diagram)

void	setColor (uint dataset, const QColor &color)

void	setDatasetHidden (uint dataset, bool hidden)

void	setDefaultColors ()

void	setDiagram (KDChart::AbstractDiagram *newDiagram)
	A convenience method doing the same as replaceDiagram( newDiagram, 0 );. More...

void	setFloatingPosition (const RelativePosition &relativePosition)

void	setHiddenDatasets (const QList< uint > &hiddenDatasets)

void	setLegendStyle (LegendStyle style)

void	setLegendSymbolAlignment (Qt::Alignment)
	Specify the alignment of the legend symbol( alignment of Legend::LinesOnly) within the legend. More...

void	setMarkerAttributes (uint dataset, const MarkerAttributes &)

void	setOrientation (Qt::Orientation orientation)

void	setPen (uint dataset, const QPen &pen)

void	setPosition (Position position)
	Specify the position of a non-floating legend. More...

void	setRainbowColors ()

void	setReferenceArea (const QWidget *area)

void	setShowLines (bool legendShowLines)

void	setSortOrder (Qt::SortOrder order)

void	setSpacing (uint space)

void	setSubduedColors (bool ordered=false)

void	setText (uint dataset, const QString &text)

void	setTextAlignment (Qt::Alignment)
	Specify the alignment of the text elements within the legend. More...

void	setTextAttributes (const TextAttributes &a)

void	setTitleText (const QString &text)

void	setTitleTextAttributes (const TextAttributes &a)

void	setUseAutomaticMarkerSize (bool useAutomaticMarkerSize)

void	setVisible (bool visible) override

bool	showLines () const

QSize	sizeHint () const override

Qt::SortOrder	sortOrder () const

uint	spacing () const

QString	text (uint dataset) const

Qt::Alignment	textAlignment () const
	Returns the alignment used while rendering text elements within the legend. More...

TextAttributes	textAttributes () const

const QMap< uint, QString >	texts () const

QString	titleText () const

TextAttributes	titleTextAttributes () const

bool	useAutomaticMarkerSize () const

Public Member Functions inherited from KDChart::AbstractAreaWidget
	AbstractAreaWidget (QWidget *parent=nullptr)

void	paintAll (QPainter &painter)

void	paintEvent (QPaintEvent *event) override
	Draws the background and frame, then calls paint(). More...

virtual void	paintIntoRect (QPainter &painter, const QRect &rect)
	Draws the background and frame, then calls paint(). More...

Public Member Functions inherited from KDChart::AbstractAreaBase
void	alignToReferencePoint (const RelativePosition &position)

BackgroundAttributes	backgroundAttributes () const

bool	compare (const AbstractAreaBase *other) const

FrameAttributes	frameAttributes () const

void	getFrameLeadings (int &left, int &top, int &right, int &bottom) const

virtual void	paintBackground (QPainter &painter, const QRect &rectangle)

virtual void	paintFrame (QPainter &painter, const QRect &rectangle)

void	setBackgroundAttributes (const BackgroundAttributes &a)

void	setFrameAttributes (const FrameAttributes &a)

Additional Inherited Members
Static Public Member Functions inherited from KDChart::AbstractAreaBase
static void	paintBackgroundAttributes (QPainter &painter, const QRect &rectangle, const KDChart::BackgroundAttributes &attributes)

static void	paintFrameAttributes (QPainter &painter, const QRect &rectangle, const KDChart::FrameAttributes &attributes)

Protected Member Functions inherited from KDChart::AbstractAreaWidget
	~AbstractAreaWidget () override

QRect	areaGeometry () const override

void	positionHasChanged () override

Protected Member Functions inherited from KDChart::AbstractAreaBase
	AbstractAreaBase ()

virtual	~AbstractAreaBase ()

QRect	innerRect () const

Detailed Description

Legend defines the interface for the legend drawing class.

Legend is the class for drawing legends for all kinds of diagrams ("chart types").

Legend is drawn on chart level, not per diagram, but you can have more than one legend per chart, using KDChart::Chart::addLegend().

Note: Legend is different from all other classes ofd KD Chart, since it can be displayed outside of the Chart's area. If you want to, you can embed the legend into your own widget, or into another part of a bigger layout, into which you might have inserted the Chart.

On the other hand, please note that you MUST call Chart::addLegend to get your legend positioned into the correct place of your chart - if you want to have the legend shown inside of the chart (that's probably true for most cases).

Definition at line 43 of file KDChartLegend.h.

Member Enumeration Documentation

◆ LegendStyle

enum KDChart::Legend::LegendStyle

Enumerator
MarkersOnly
LinesOnly
MarkersAndLines

Definition at line 55 of file KDChartLegend.h.

Constructor & Destructor Documentation

◆ Legend() [1/2]

Legend::Legend ( QWidget * parent = nullptr )

explicit

Definition at line 60 of file KDChartLegend.cpp.

References d.

Referenced by clone().

◆ Legend() [2/2]

Legend::Legend	(	KDChart::AbstractDiagram *	diagram,
		QWidget *	parent = `nullptr`
	)

explicit

Definition at line 67 of file KDChartLegend.cpp.

References d, diagram(), and setDiagram().

◆ ~Legend()

Legend::~Legend ( )

override

Definition at line 75 of file KDChartLegend.cpp.

References destroyedLegend().

Member Function Documentation

◆ addDiagram()

void Legend::addDiagram ( KDChart::AbstractDiagram * newDiagram )

Add the given diagram to the legend.

Parameters

newDiagram The diagram to add.

See also: diagram, diagrams, removeDiagram, removeDiagrams, replaceDiagram, setDiagram

Definition at line 275 of file KDChartLegend.cpp.

References d, KDChart::DiagramObserver::diagramAboutToBeDestroyed(), KDChart::DiagramObserver::diagramAttributesChanged(), KDChart::DiagramObserver::diagramDataChanged(), and KDChart::DiagramObserver::diagramDataHidden().

Referenced by replaceDiagram().

◆ alignment()

Qt::Alignment Legend::alignment ( ) const

Returns the alignment of a non-floating legend.

See also: setAlignment

Definition at line 428 of file KDChartLegend.cpp.

References d.

Referenced by clone(), compare(), setAlignment(), setLegendSymbolAlignment(), and setTextAlignment().

◆ brush()

QBrush Legend::brush ( uint dataset ) const

Definition at line 587 of file KDChartLegend.cpp.

References d.

Referenced by setBrush().

◆ brushes()

const QMap< uint, QBrush > Legend::brushes ( ) const

Definition at line 596 of file KDChartLegend.cpp.

References d.

Referenced by compare().

◆ clone()

Legend * Legend::clone ( ) const

virtual

Creates an exact copy of this legend.

Definition at line 178 of file KDChartLegend.cpp.

References Legend(), alignment(), d, KDChart::AbstractAreaBase::frameAttributes(), legendStyle(), position(), textAlignment(), textAttributes(), titleTextAttributes(), and useAutomaticMarkerSize().

◆ compare()

bool Legend::compare ( const Legend * other ) const

Returns true if both legends have the same settings.

Definition at line 192 of file KDChartLegend.cpp.

References alignment(), brushes(), KDChart::AbstractAreaBase::compare(), floatingPosition(), legendStyle(), markerAttributes(), orientation(), pens(), position(), showLines(), spacing(), textAlignment(), textAttributes(), texts(), titleText(), titleTextAttributes(), and useAutomaticMarkerSize().

◆ constDiagrams()

ConstDiagramList Legend::constDiagrams ( ) const

Returns: The list of diagrams associated with this legend.

Definition at line 266 of file KDChartLegend.cpp.

References d.

◆ datasetCount()

uint Legend::datasetCount ( ) const

Definition at line 224 of file KDChartLegend.cpp.

References d, KDChart::AbstractDiagram::datasetBrushes(), KDChart::AbstractDiagram::datasetLabels(), KDChart::DiagramObserver::diagram(), and diagram().

◆ datasetIsHidden()

bool Legend::datasetIsHidden ( uint dataset ) const

Definition at line 1194 of file KDChartLegend.cpp.

References d.

◆ dataSetOffset()

uint Legend::dataSetOffset ( KDChart::AbstractDiagram * diagram )

Returns the offset of the first dataset of diagram.

Definition at line 357 of file KDChartLegend.cpp.

References d, and diagram().

◆ destroyedLegend

void KDChart::Legend::destroyedLegend ( Legend * )

signal

Referenced by ~Legend().

◆ diagram()

AbstractDiagram * Legend::diagram ( ) const

The first diagram of the legend or 0 if there was none added to the legend.

Returns: The first diagram of the legend or 0.

See also: diagrams, addDiagram, removeDiagram, removeDiagrams, replaceDiagram, setDiagram

Definition at line 249 of file KDChartLegend.cpp.

References d.

Referenced by Legend(), datasetCount(), dataSetOffset(), paint(), and setBrushesFromDiagram().

◆ diagrams()

DiagramList Legend::diagrams ( ) const

The list of all diagrams associated with the legend.

Returns: The list of all diagrams associated with the legend.

See also: diagram, addDiagram, removeDiagram, removeDiagrams, replaceDiagram, setDiagram

Definition at line 257 of file KDChartLegend.cpp.

References d.

Referenced by removeDiagram(), and removeDiagrams().

◆ floatingPosition()

const RelativePosition Legend::floatingPosition ( ) const

Returns the position of a floating legend.

See also: setFloatingPosition

Definition at line 470 of file KDChartLegend.cpp.

References d.

Referenced by compare(), and KDChart::Chart::reLayoutFloatingLegends().

◆ forceRebuild()

void Legend::forceRebuild ( )

overridevirtual

Call this to trigger an unconditional re-building of the widget's internals.

Reimplemented from KDChart::AbstractAreaWidget.

Definition at line 709 of file KDChartLegend.cpp.

Referenced by resizeEvent().

◆ hasHeightForWidth()

bool Legend::hasHeightForWidth ( ) const

override

Definition at line 1112 of file KDChartLegend.cpp.

References d.

◆ heightForWidth()

int Legend::heightForWidth ( int width ) const

override

Definition at line 1120 of file KDChartLegend.cpp.

References d, showLines(), and spacing().

◆ hiddenDatasets()

const QList< uint > Legend::hiddenDatasets ( ) const

Definition at line 1180 of file KDChartLegend.cpp.

References d.

Referenced by setHiddenDatasets().

◆ legendStyle()

Legend::LegendStyle Legend::legendStyle ( ) const

Definition at line 170 of file KDChartLegend.cpp.

References d.

Referenced by clone(), and compare().

◆ legendSymbolAlignment()

Qt::Alignment Legend::legendSymbolAlignment ( ) const

Returns the alignment used while drawing legend symbol(alignment of Legend::LinesOnly) within the legend.

See also: setLegendSymbolAlignment()

Definition at line 456 of file KDChartLegend.cpp.

References d.

◆ markerAttributes() [1/2]

const QMap< uint, MarkerAttributes > Legend::markerAttributes ( ) const

Definition at line 662 of file KDChartLegend.cpp.

References d.

Referenced by compare(), and setMarkerAttributes().

◆ markerAttributes() [2/2]

MarkerAttributes Legend::markerAttributes ( uint dataset ) const

Definition at line 651 of file KDChartLegend.cpp.

References d.

Referenced by compare().

◆ minimumSizeHint()

QSize Legend::minimumSizeHint ( ) const

override

Definition at line 116 of file KDChartLegend.cpp.

References sizeHint().

◆ needSizeHint()

void Legend::needSizeHint ( )

overridevirtual

Call this to trigger an conditional re-building of the widget's internals.

e.g. AbstractAreaWidget call this, before calling layout()->setGeometry()

Reimplemented from KDChart::AbstractAreaWidget.

Definition at line 134 of file KDChartLegend.cpp.

◆ orientation()

Qt::Orientation Legend::orientation ( ) const

Definition at line 485 of file KDChartLegend.cpp.

References d.

Referenced by compare(), and setOrientation().

◆ paint()

void Legend::paint ( QPainter * painter )

overridevirtual

Overwrite this to paint the inner contents of your widget.

Note: When overriding this method, please let your widget draw itself at the top/left corner of the painter. You should call rect() (or width(), height(), resp.) to find the drawable area's size: While the paint() method is being executed the frame of the widget is outside of its rect(), so you can use all of rect() for your custom drawing!

See also: paint, paintIntoRect

Implements KDChart::AbstractAreaWidget.

Definition at line 204 of file KDChartLegend.cpp.

References d, and diagram().

◆ pen()

QPen Legend::pen ( uint dataset ) const

Definition at line 627 of file KDChartLegend.cpp.

References d.

Referenced by setPen().

◆ pens()

const QMap< uint, QPen > Legend::pens ( ) const

Definition at line 636 of file KDChartLegend.cpp.

References d.

Referenced by compare().

◆ position()

Position Legend::position ( ) const

Returns the position of a non-floating legend.

See also: setPosition

Definition at line 414 of file KDChartLegend.cpp.

References d.

Referenced by clone(), compare(), KDChart::Chart::reLayoutFloatingLegends(), and setPosition().

◆ propertiesChanged

void KDChart::Legend::propertiesChanged ( )

signal

Emitted upon change of a property of the Legend or any of its components.

◆ referenceArea()

const QWidget * Legend::referenceArea ( ) const

Returns the reference area, that is used for font size of title text, and for font size of the item texts, IF automatic area detection is set.

See also: setReferenceArea

Definition at line 244 of file KDChartLegend.cpp.

References d.

◆ removeDiagram()

void Legend::removeDiagram ( KDChart::AbstractDiagram * oldDiagram )

Removes the diagram from the legend's list of diagrams.

See also: diagram, diagrams, addDiagram, removeDiagrams, replaceDiagram, setDiagram

Definition at line 295 of file KDChartLegend.cpp.

References d, KDChart::AbstractDiagram::datasetBrushes(), KDChart::AbstractDiagram::datasetPens(), and diagrams().

Referenced by removeDiagrams(), and replaceDiagram().

◆ removeDiagrams()

void Legend::removeDiagrams ( )

Removes all diagrams from the legend's list of diagrams.

See also: diagram, diagrams, addDiagram, removeDiagram, replaceDiagram, setDiagram

Definition at line 326 of file KDChartLegend.cpp.

References d, diagrams(), and removeDiagram().

◆ replaceDiagram()

void Legend::replaceDiagram	(	KDChart::AbstractDiagram *	newDiagram,
		KDChart::AbstractDiagram *	oldDiagram = `nullptr`
	)

Replaces the old diagram, or appends the new diagram, it there is none yet.

Parameters

newDiagram	The diagram to be used instead of the old one. If this parameter is zero, the first diagram will just be removed.
oldDiagram	The diagram to be removed by the new one. This diagram will be deleted automatically. If the parameter is omitted, the very first diagram will be replaced. In case, there was no diagram yet, the new diagram will just be added.

See also: diagram, diagrams, addDiagram, removeDiagram, removeDiagrams, setDiagram

Definition at line 339 of file KDChartLegend.cpp.

References addDiagram(), d, and removeDiagram().

Referenced by setDiagram().

◆ resetTexts()

void Legend::resetTexts ( )

Removes all legend texts that might have been set by setText.

This resets the Legend to default behaviour: Texts are created automatically.

Definition at line 537 of file KDChartLegend.cpp.

References d.

◆ resizeEvent()

void Legend::resizeEvent ( QResizeEvent * event )

override

Definition at line 770 of file KDChartLegend.cpp.

References forceRebuild(), and sizeHint().

◆ resizeLayout()

void Legend::resizeLayout ( const QSize & size )

overridevirtual

Reimplemented from KDChart::AbstractAreaWidget.

Definition at line 139 of file KDChartLegend.cpp.

References d.

◆ setAlignment()

void Legend::setAlignment ( Qt::Alignment alignment )

Specify the alignment of a non-floating legend.

Use setFloatingPosition to set position and alignment if your legend is floating.

See also: alignment, setPosition, setFloatingPosition

Definition at line 419 of file KDChartLegend.cpp.

References alignment(), and d.

◆ setBrush()

void Legend::setBrush	(	uint	dataset,
		const QBrush &	brush
	)

Definition at line 578 of file KDChartLegend.cpp.

References brush(), and d.

Referenced by setDefaultColors(), setRainbowColors(), and setSubduedColors().

◆ setBrushesFromDiagram()

void Legend::setBrushesFromDiagram ( KDChart::AbstractDiagram * diagram )

Definition at line 601 of file KDChartLegend.cpp.

References d, KDChart::AbstractDiagram::datasetBrushes(), and diagram().

◆ setColor()

void Legend::setColor	(	uint	dataset,
		const QColor &	color
	)

Note: there is no color() getter method, since setColor just sets a QBrush with the respective color, so the brush() getter method is sufficient.

Definition at line 569 of file KDChartLegend.cpp.

References d.

◆ setDatasetHidden()

void Legend::setDatasetHidden	(	uint	dataset,
		bool	hidden
	)

Definition at line 1185 of file KDChartLegend.cpp.

References d.

◆ setDefaultColors()

void Legend::setDefaultColors ( )

Definition at line 735 of file KDChartLegend.cpp.

References KDChart::Palette::defaultPalette(), KDChart::Palette::getBrush(), setBrush(), and KDChart::Palette::size().

◆ setDiagram()

void Legend::setDiagram ( KDChart::AbstractDiagram * newDiagram )

A convenience method doing the same as replaceDiagram( newDiagram, 0 );.

Replaces the first diagram by the given diagram. If the legend's list of diagram is empty the given diagram is added to the list.

See also: diagram, diagrams, addDiagram, removeDiagram, removeDiagrams, replaceDiagram

Definition at line 375 of file KDChartLegend.cpp.

References replaceDiagram().

Referenced by Legend(), KDChart::Widget::addLegend(), and KDChart::Widget::replaceLegend().

◆ setFloatingPosition()

void Legend::setFloatingPosition ( const RelativePosition & relativePosition )

   \brief Specify the position and alignment of a floating legend.

   Use setPosition and setAlignment to set position and alignment
   if your legend is non-floating.

   \note When setFloatingPosition is called, the Legend's position value is set to
   KDChart::Position::Floating automatically.

   If your Chart is pointed to by m_chart, your could have the floating legend
   aligned exactly to the chart's coordinate plane's top-right corner
   with the following commands:

KDChart::RelativePosition relativePosition;
relativePosition.setReferenceArea( m_chart->coordinatePlane() );
relativePosition.setReferencePosition( Position::NorthEast );
relativePosition.setAlignment( Qt::AlignTop | Qt::AlignRight );
relativePosition.setHorizontalPadding(
    KDChart::Measure( -1.0, KDChartEnums::MeasureCalculationModeAbsolute ) );
relativePosition.setVerticalPadding(
    KDChart::Measure( 0.0, KDChartEnums::MeasureCalculationModeAbsolute ) );
m_legend->setFloatingPosition( relativePosition );

   To have the legend positioned at a fixed point, measured from the QPainter's top left corner,
   you could use the following code code:

KDChart::RelativePosition relativePosition;
relativePosition.setReferencePoints( PositionPoints( QPointF( 0.0, 0.0 ) ) );
relativePosition.setReferencePosition( Position::NorthWest );
relativePosition.setAlignment( Qt::AlignTop | Qt::AlignLeft );
relativePosition.setHorizontalPadding(
    KDChart::Measure( 4.0, KDChartEnums::MeasureCalculationModeAbsolute ) );
relativePosition.setVerticalPadding(
    KDChart::Measure( 4.0, KDChartEnums::MeasureCalculationModeAbsolute ) );
m_legend->setFloatingPosition( relativePosition );

Actually that's exactly the code KD Chart is using as default position for any floating legends, so if you just say setPosition( KDChart::Position::Floating ) without calling setFloatingPosition your legend will be positioned at point 4/4.

See also: setPosition, setAlignment

Definition at line 461 of file KDChartLegend.cpp.

References d, and KDChart::Position::Floating.

◆ setHiddenDatasets()

void Legend::setHiddenDatasets ( const QList< uint > & hiddenDatasets )

Sets a list of datasets that are to be hidden in the legend.

By passing an empty list, you show all datasets. All datasets are shown by default, which means that hiddenDatasets() returns an empty list.

Definition at line 1175 of file KDChartLegend.cpp.

References d, and hiddenDatasets().

◆ setLegendStyle()

void Legend::setLegendStyle ( LegendStyle style )

Definition at line 161 of file KDChartLegend.cpp.

References d.

◆ setLegendSymbolAlignment()

void Legend::setLegendSymbolAlignment ( Qt::Alignment alignment )

Specify the alignment of the legend symbol( alignment of Legend::LinesOnly) within the legend.

See also: legendSymbolAlignment()

Definition at line 447 of file KDChartLegend.cpp.

References alignment(), and d.

◆ setMarkerAttributes()

void Legend::setMarkerAttributes	(	uint	dataset,
		const MarkerAttributes &	markerAttributes
	)

Note that any sizes specified via setMarkerAttributes are ignored, unless you disable the automatic size calculation, by saying setUseAutomaticMarkerSize( false )

Definition at line 641 of file KDChartLegend.cpp.

References d, and markerAttributes().

◆ setOrientation()

void Legend::setOrientation ( Qt::Orientation orientation )

Definition at line 475 of file KDChartLegend.cpp.

References d, and orientation().

◆ setPen()

void Legend::setPen	(	uint	dataset,
		const QPen &	pen
	)

Definition at line 617 of file KDChartLegend.cpp.

References d, and pen().

◆ setPosition()

void Legend::setPosition ( Position position )

Specify the position of a non-floating legend.

Use setFloatingPosition to set position and alignment if your legend is floating.

See also: setAlignment, setFloatingPosition

Definition at line 399 of file KDChartLegend.cpp.

References d, and position().

Referenced by KDChart::Widget::addLegend().

◆ setRainbowColors()

void Legend::setRainbowColors ( )

Definition at line 743 of file KDChartLegend.cpp.

References KDChart::Palette::getBrush(), KDChart::Palette::rainbowPalette(), setBrush(), and KDChart::Palette::size().

◆ setReferenceArea()

void Legend::setReferenceArea ( const QWidget * area )

Specifies the reference area for font size of title text, and for font size of the item texts, IF automatic area detection is set.

Note: This parameter is ignored, if the Measure given for setTitleTextAttributes (or setTextAttributes, resp.) is not specifying automatic area detection.

If no reference area is specified, but automatic area detection is set, then the size of the legend's parent widget will be used.

See also: KDChart::Measure, KDChartEnums::MeasureCalculationMode

Definition at line 235 of file KDChartLegend.cpp.

References d.

◆ setShowLines()

void Legend::setShowLines ( bool legendShowLines )

Definition at line 505 of file KDChartLegend.cpp.

References d.

◆ setSortOrder()

void Legend::setSortOrder ( Qt::SortOrder order )

Definition at line 490 of file KDChartLegend.cpp.

References d.

◆ setSpacing()

void Legend::setSpacing ( uint space )

Definition at line 720 of file KDChartLegend.cpp.

References d.

◆ setSubduedColors()

void Legend::setSubduedColors ( bool ordered = false )

Definition at line 751 of file KDChartLegend.cpp.

References KDChart::Palette::getBrush(), setBrush(), KDChart::Palette::size(), and KDChart::Palette::subduedPalette().

◆ setText()

void Legend::setText	(	uint	dataset,
		const QString &	text
	)

Definition at line 546 of file KDChartLegend.cpp.

References d, and text().

◆ setTextAlignment()

void Legend::setTextAlignment ( Qt::Alignment alignment )

Specify the alignment of the text elements within the legend.

See also: textAlignment()

Definition at line 433 of file KDChartLegend.cpp.

References alignment(), and d.

◆ setTextAttributes()

void Legend::setTextAttributes ( const TextAttributes & a )

Definition at line 667 of file KDChartLegend.cpp.

References d.

◆ setTitleText()

void Legend::setTitleText ( const QString & text )

Definition at line 681 of file KDChartLegend.cpp.

References d, and text().

◆ setTitleTextAttributes()

void Legend::setTitleTextAttributes ( const TextAttributes & a )

Definition at line 695 of file KDChartLegend.cpp.

References d.

◆ setUseAutomaticMarkerSize()

void Legend::setUseAutomaticMarkerSize ( bool useAutomaticMarkerSize )

This option is on by default, it means that Marker sizes in the Legend will be the same as the font height used for their respective label texts.

Set this to false, if you want to specify the marker sizes via setMarkerAttributes or if you want the Legend to use the same marker sizes as they are used in the Diagrams.

Definition at line 520 of file KDChartLegend.cpp.

References d, and useAutomaticMarkerSize().

◆ setVisible()

void Legend::setVisible ( bool visible )

override

Definition at line 385 of file KDChartLegend.cpp.

◆ showLines()

bool Legend::showLines ( ) const

Definition at line 515 of file KDChartLegend.cpp.

References d.

Referenced by compare(), and heightForWidth().

◆ sizeHint()

QSize Legend::sizeHint ( ) const

override

Definition at line 123 of file KDChartLegend.cpp.

References d.

Referenced by minimumSizeHint(), KDChart::Chart::reLayoutFloatingLegends(), and resizeEvent().

◆ sortOrder()

Qt::SortOrder Legend::sortOrder ( ) const

Definition at line 500 of file KDChartLegend.cpp.

References d.

◆ spacing()

uint Legend::spacing ( ) const

Definition at line 730 of file KDChartLegend.cpp.

References d.

Referenced by compare(), and heightForWidth().

◆ text()

QString Legend::text ( uint dataset ) const

Definition at line 555 of file KDChartLegend.cpp.

References d.

Referenced by setText(), and setTitleText().

◆ textAlignment()

Qt::Alignment Legend::textAlignment ( ) const

Returns the alignment used while rendering text elements within the legend.

See also: setTextAlignment()

Definition at line 442 of file KDChartLegend.cpp.

References d.

Referenced by clone(), and compare().

◆ textAttributes()

TextAttributes Legend::textAttributes ( ) const

Definition at line 676 of file KDChartLegend.cpp.

References d.

Referenced by clone(), and compare().

◆ texts()

const QMap< uint, QString > Legend::texts ( ) const

Definition at line 564 of file KDChartLegend.cpp.

References d.

Referenced by compare().

◆ titleText()

QString Legend::titleText ( ) const

Definition at line 690 of file KDChartLegend.cpp.

References d.

Referenced by compare().

◆ titleTextAttributes()

TextAttributes Legend::titleTextAttributes ( ) const

Definition at line 704 of file KDChartLegend.cpp.

References d.

Referenced by clone(), and compare().

◆ useAutomaticMarkerSize()

bool Legend::useAutomaticMarkerSize ( ) const

Definition at line 527 of file KDChartLegend.cpp.

References d.

Referenced by clone(), compare(), and setUseAutomaticMarkerSize().

The documentation for this class was generated from the following files:

Public Types

Signals

Public Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ LegendStyle

Constructor & Destructor Documentation

◆ Legend() [1/2]

◆ Legend() [2/2]

◆ ~Legend()

Member Function Documentation

◆ addDiagram()

◆ alignment()

◆ brush()

◆ brushes()

◆ clone()

◆ compare()

◆ constDiagrams()

◆ datasetCount()

◆ datasetIsHidden()

◆ dataSetOffset()

◆ destroyedLegend

◆ diagram()

◆ diagrams()

◆ floatingPosition()

◆ forceRebuild()

◆ hasHeightForWidth()

◆ heightForWidth()

◆ hiddenDatasets()

◆ legendStyle()

◆ legendSymbolAlignment()

◆ markerAttributes() [1/2]

◆ markerAttributes() [2/2]

◆ minimumSizeHint()

◆ needSizeHint()

◆ orientation()

◆ paint()

◆ pen()

◆ pens()

◆ position()

◆ propertiesChanged

◆ referenceArea()

◆ removeDiagram()

◆ removeDiagrams()

◆ replaceDiagram()

◆ resetTexts()

◆ resizeEvent()

◆ resizeLayout()

◆ setAlignment()

◆ setBrush()

◆ setBrushesFromDiagram()

◆ setColor()

◆ setDatasetHidden()

◆ setDefaultColors()

◆ setDiagram()

◆ setFloatingPosition()

◆ setHiddenDatasets()

◆ setLegendStyle()

◆ setLegendSymbolAlignment()

◆ setMarkerAttributes()

◆ setOrientation()

◆ setPen()

◆ setPosition()

◆ setRainbowColors()

◆ setReferenceArea()

◆ setShowLines()

◆ setSortOrder()

◆ setSpacing()

◆ setSubduedColors()

◆ setText()

◆ setTextAlignment()

◆ setTextAttributes()

◆ setTitleText()

◆ setTitleTextAttributes()

◆ setUseAutomaticMarkerSize()

◆ setVisible()

◆ showLines()

◆ sizeHint()

◆ sortOrder()
